Escort HP55 Radio

More information

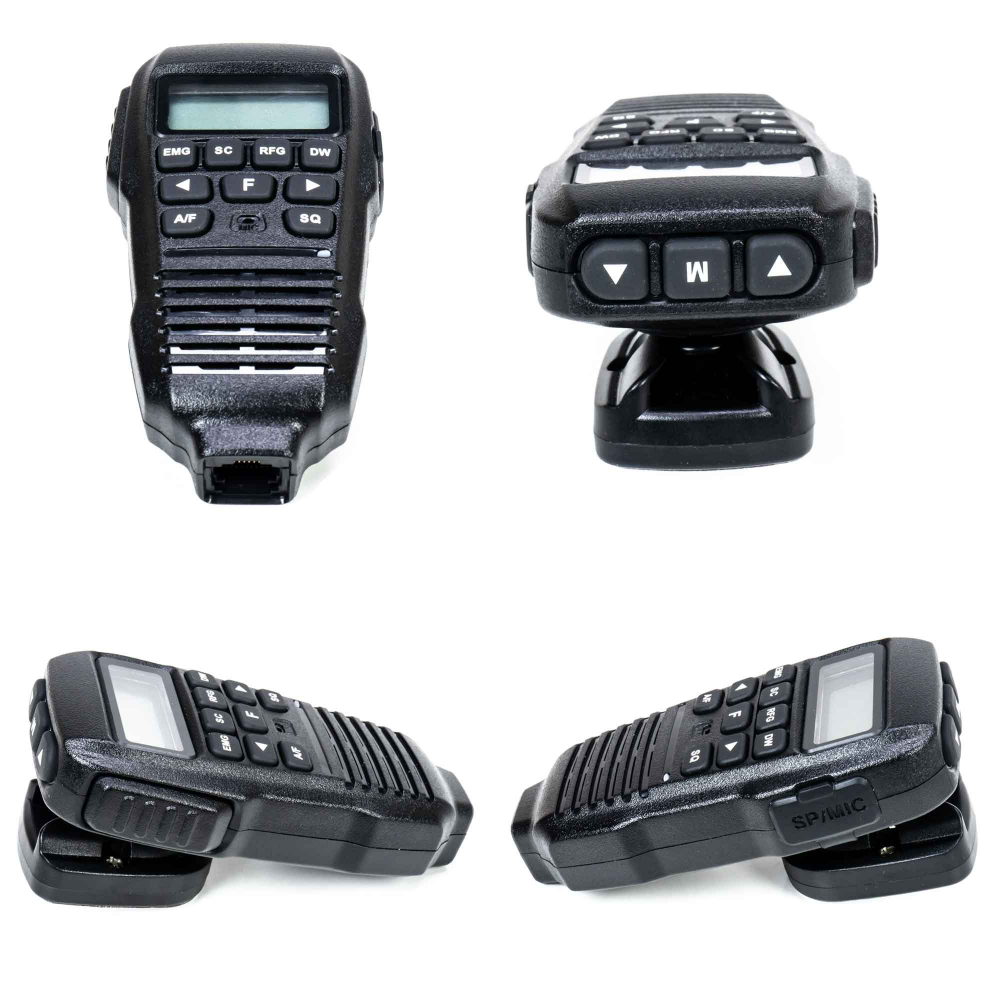

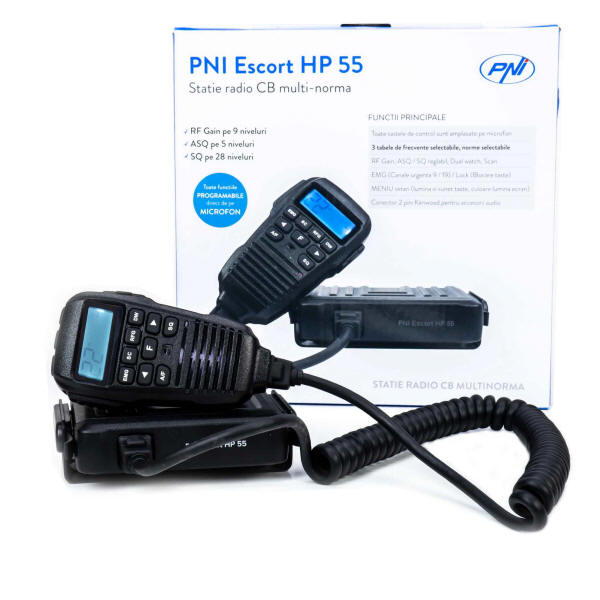

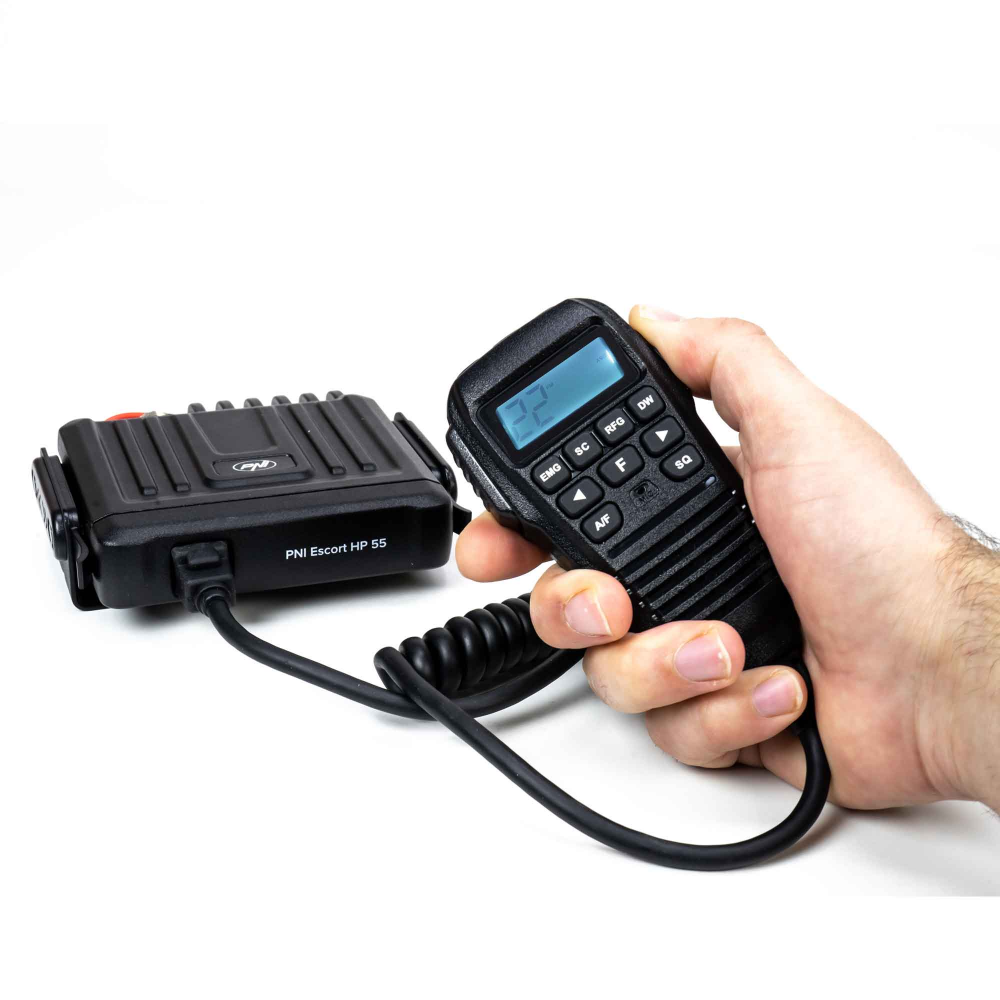

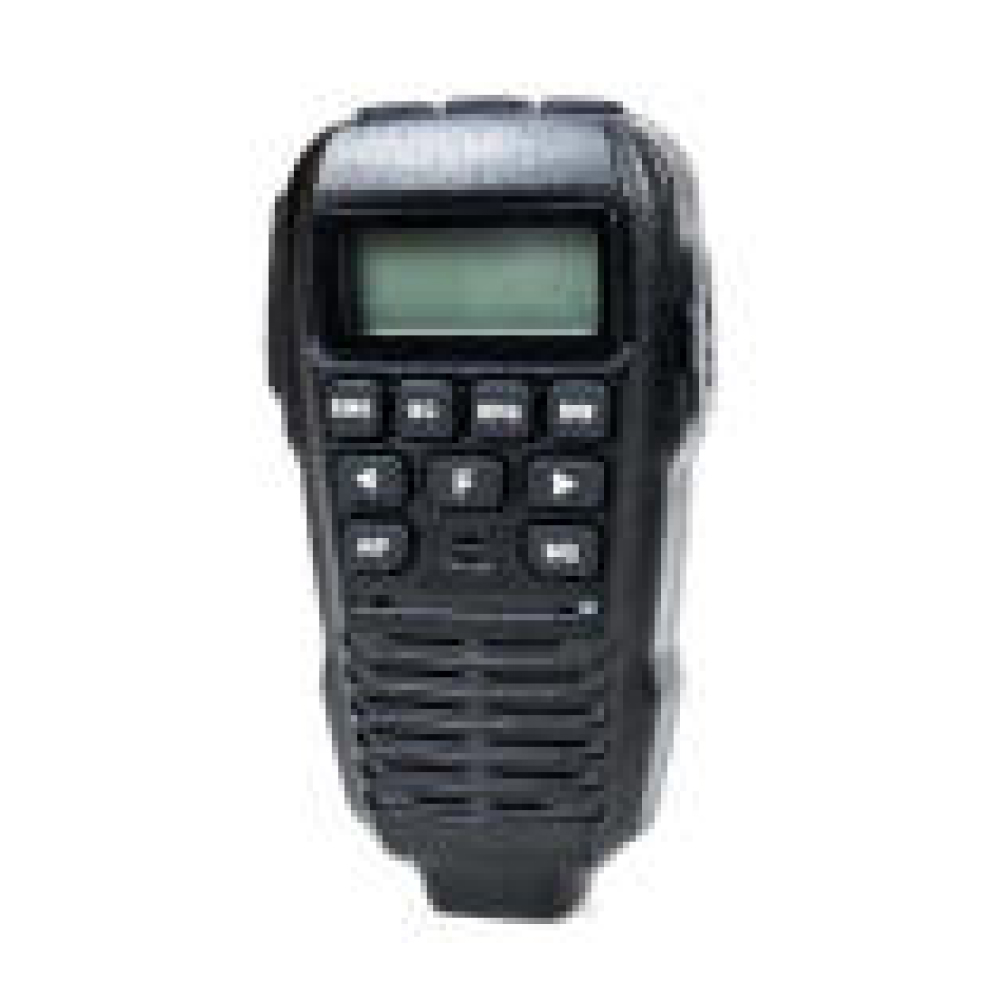

The HP 55 PNI Escort CB Station is one of the smallest CB stations on the market. Due to its very small size, and especially the location of all the control keys on the microphone , the PNI HP 55 becomes an extremely reliable communication tool. Place the station body anywhere in the car and keep only the large LCD screen microphone and control keys at hand to quickly set the station channel, tape, and functions.

Features

-Working frequency 25,615 – 30,105 MHz
-AM/FM
-impedance 50 Ohm

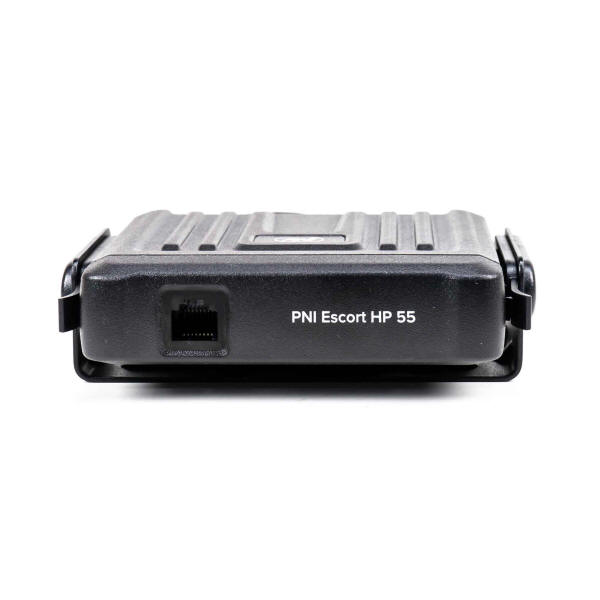

-Microphone type (pins) RJ4

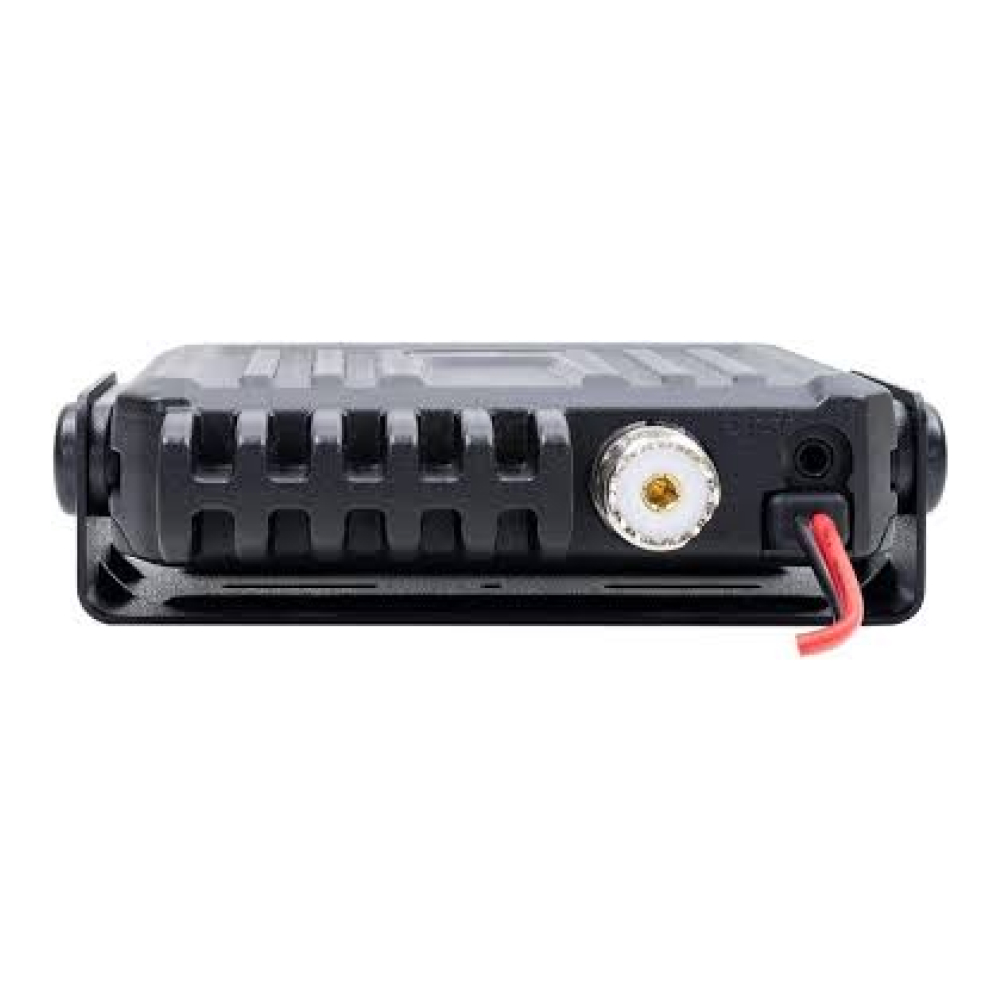

-Connector PL259 Cable length 4m
-Operating temperature -26 ° C ~ + 60 ° C
-Warranty : 24 Months (Manufacturer)

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$94.50

Upgrade speaker

Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)

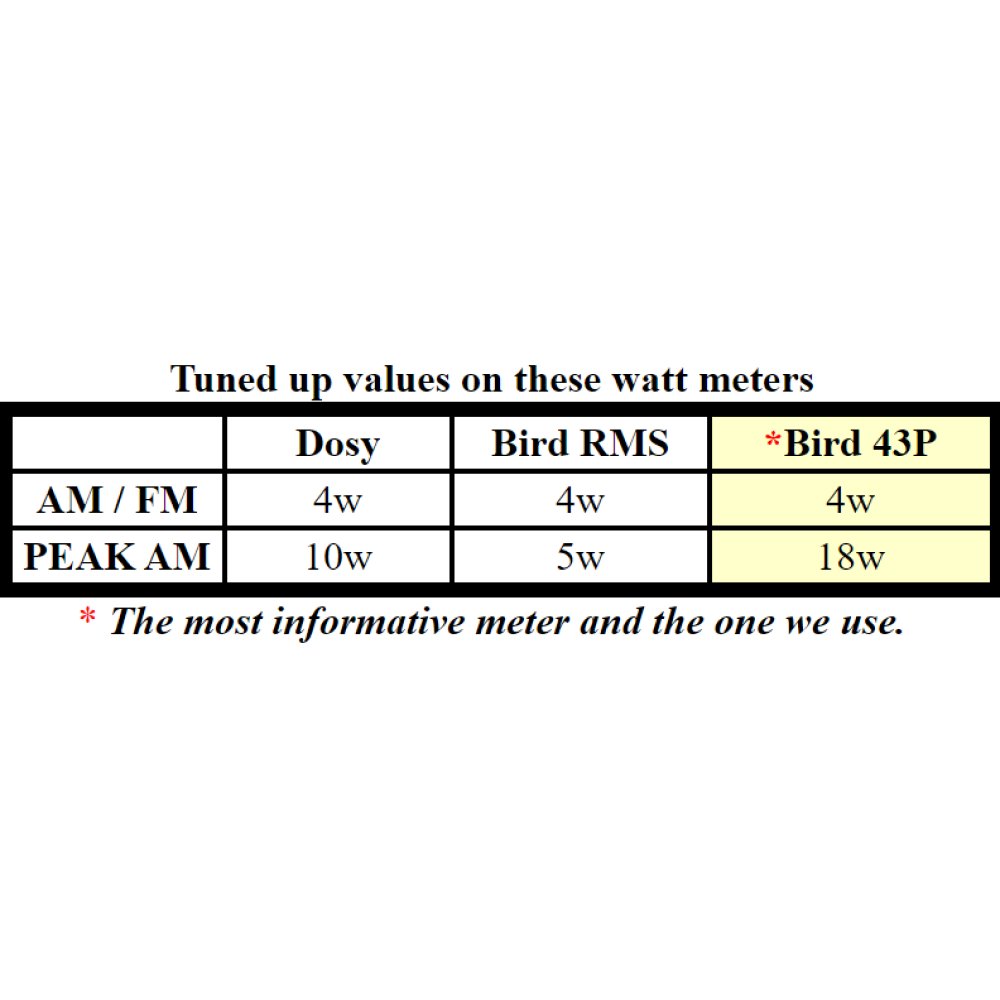

Tune-up

perform a tune-up to radio to optimize power, audio and performance

Order total:

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

General characteristics
ModelFurniture
Broadband typeAM / FM
channels40
Frequency25,615 - 30,105 MHz
Microphone type (pins)RJ45
Power speaker audio3 W
Sensitivity (20dB SINAD)0.25 µV @ 12 dB SINAD
Audio signal distortionless than 8% @ 1KHz
Emission power4 W
ModulationFM: 2 KHz, AM: 80%
feeding13.2V ± 10%
Current absorbed2 A.
Dimensions (W x H x H / Weight)120mm (L) x 110mm (W) x 27mm (H)
Special features
Dual WatchYes
Scan channelsYes
RF GainYes
ASQYes, 5 levels
Lock the keyboardYes
Emergency channel buttonYes
Multicolored screenYes, 7 colors
SWR meterYes
Manual squelchYes, 28 levels
Accessory connectionKenwood 2-pin plug
Operating temperature-20 ° C ~ +60 ° C
Sound keysYes
PTT (Push To Talk)Yes
Rear panel connections
Additional speaker connectionYes
