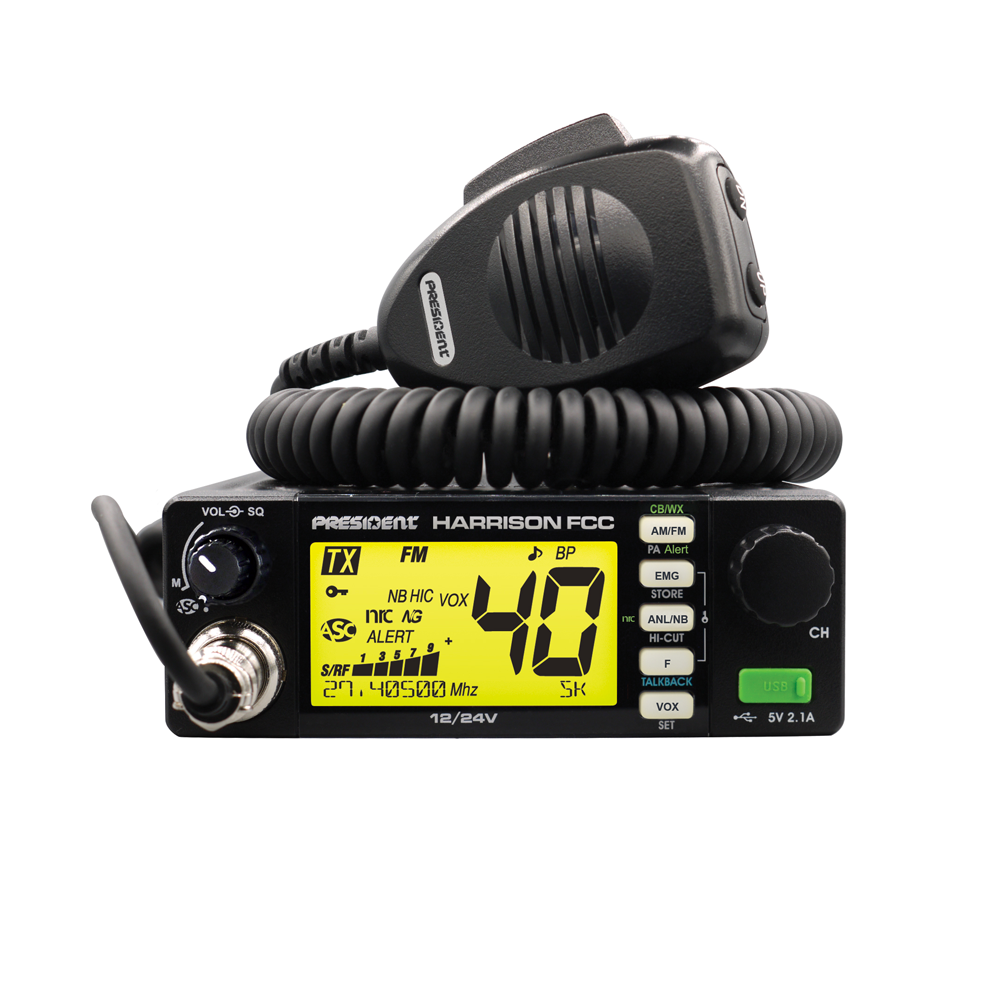

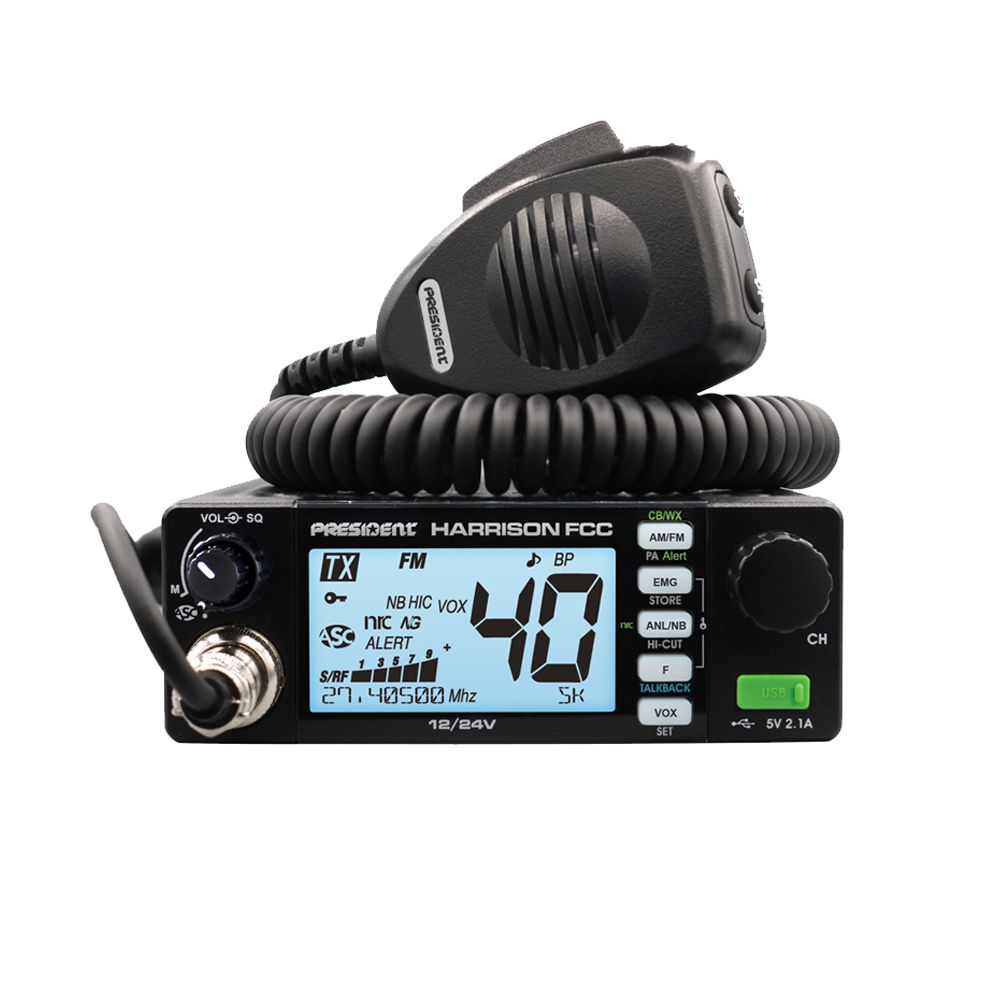

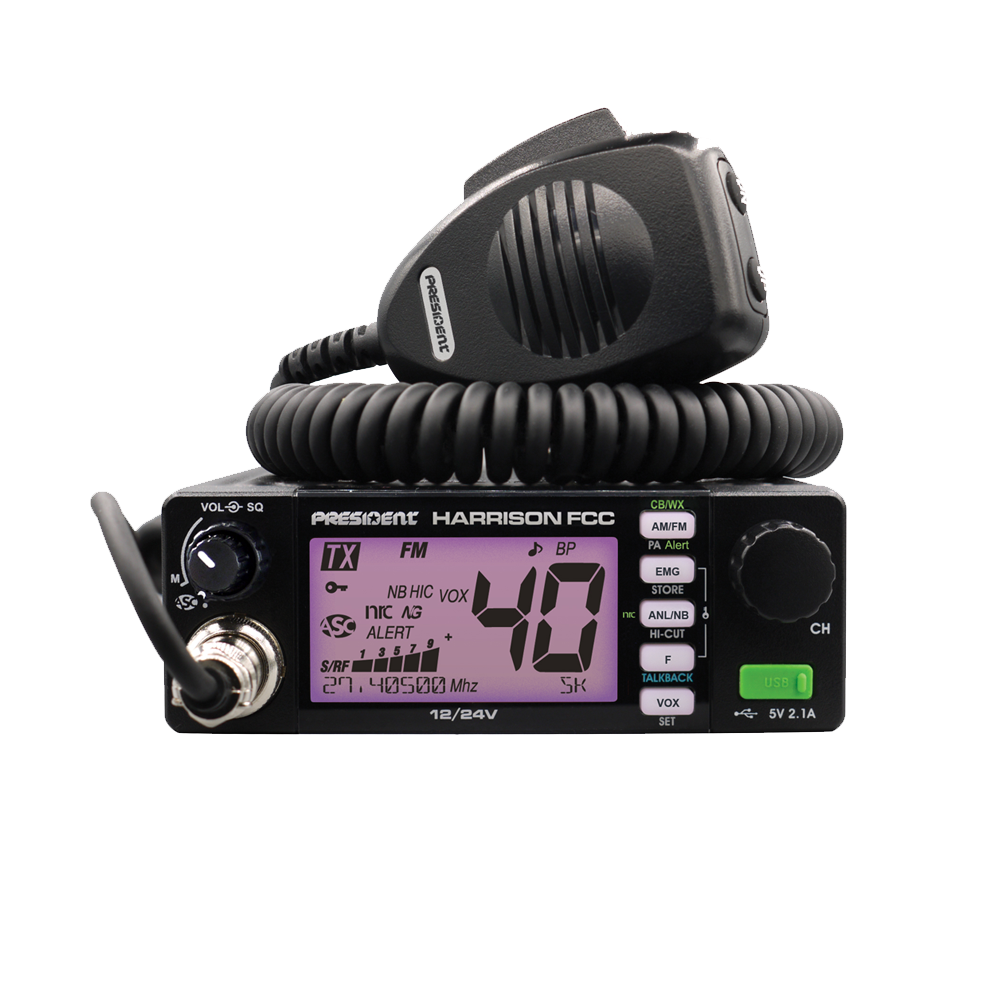

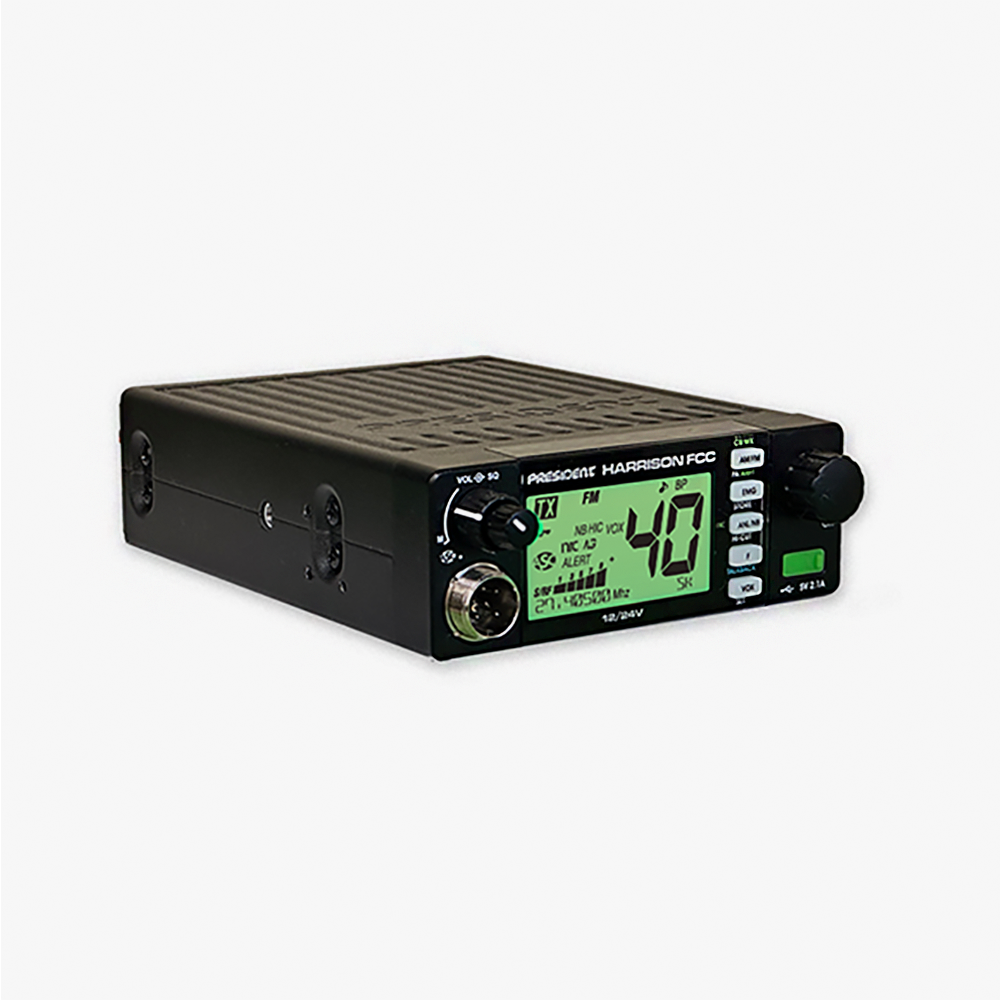

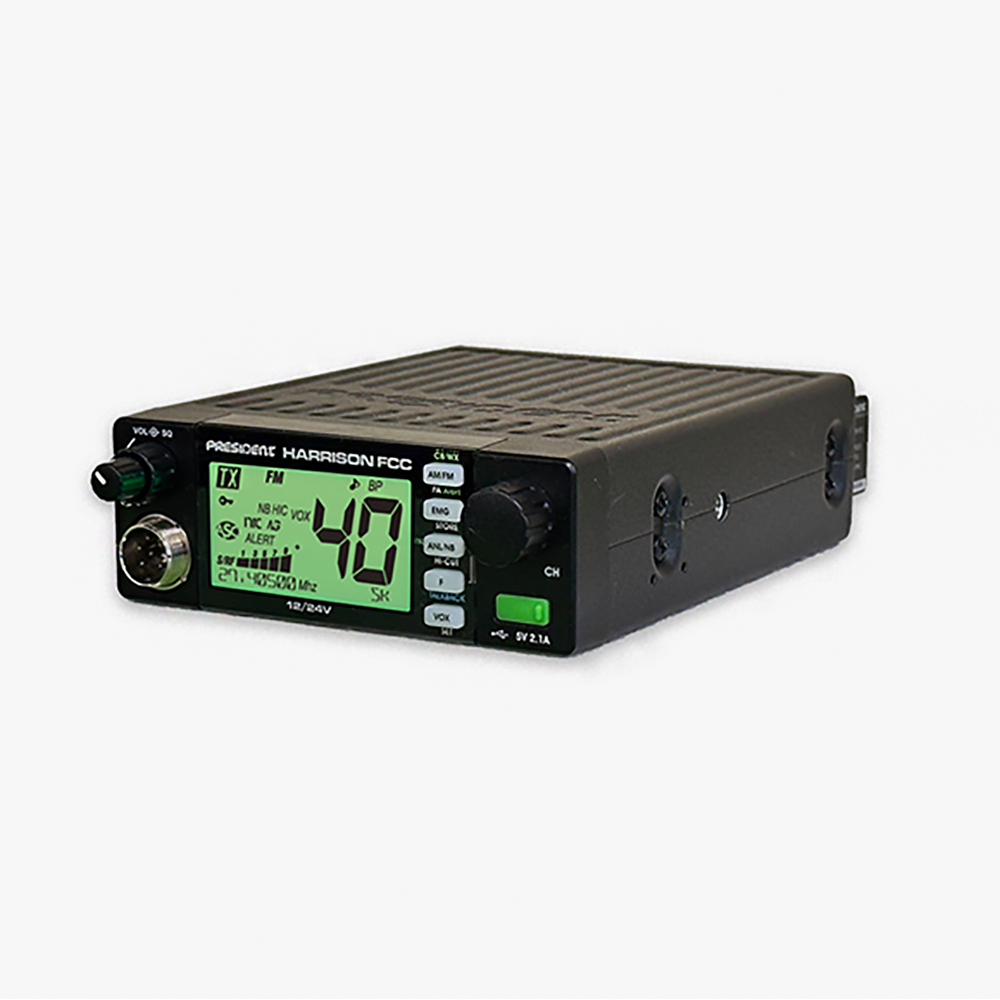

President Harrison FCC CB Radio

More information

Good things come in small packages! A compact AM/FB CB radio loaded with premium features like CTCSS/DCS, our unique SCAN SKIP feature, NRC (noise reduction circuit), and more…

Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

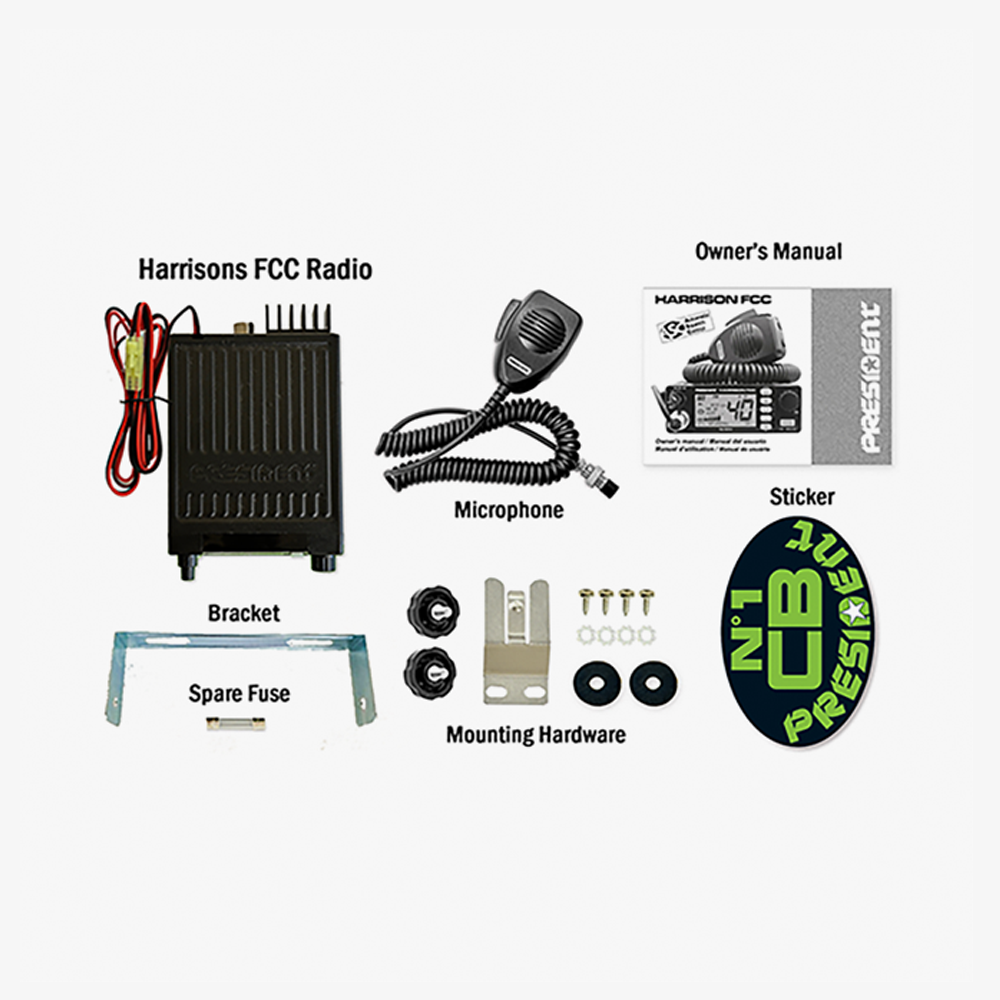

What’s in the box: Transceiver, microphone electret UP/DOWN with support, mounting cradle, screws, fused power cord and manual.

  • Size : 4.92″ (W) x 6.49″ (D) x 1.77″
  • Power Supply : 12 V / 24 V
  • AM : ✔
  • FM :
  • Channel Scan :
  • Scan Skip :
  • SWR Meter :
  • Filter ANL :
  • Filter NB :
  • Filter HI-CUT :  v
  • NRC :
  • Weather/Alert :  v
  • CTCSS / DCS :

Features

  • 40 channels AM / FM
  •  12 / 24 V
  •  Channel rotary switch
  •  Volume adjustment and ON/OFF
  •  Manual squelch and ASC
  •  Multi-functions LCD display
  •  S-meter
  •  Vox function (Hands free)
  • ANL filter, NB and HI-CUT
  • NRC
  •  Noise Gate
  •  CTCSS/DCS
  •  Scan
  •  Scan Skip
  •  Preset emergency (EMG 1/2)
  •  F function key
  •  Beep Function
  •  Roger Beep
  •  Mode switch AM / FM
  •  Talkback
  •  Tone
  •  Micro Type (Electret / Dynamic)
  •  Public Address
  •  SWR Automatic
  •  Key locking
  •  Front microphone plug
  •  External loudspeaker jack
  •  USB 5V 2.1A
  • Includes Microphone, Power cord, and Mounting Hardware
  • Warranty registration link

Back light color:

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$159.50

Upgrade Microphone

DIGIMIKE Noise Cancelling Microphone
DIGIMIKE Noise Cancelling Microphone
Pre-wired with high quality 6 pin Plug.
$47.00
President Remote BT Microphone
President Remote BT Microphone
$54.50
Astatic 636-L wired 6 pin President/Magnum Noise Canceling Microphone
Astatic 636-L wired 6 pin President/Magnum Noise Canceling Microphone
(+$44.00)
RK-56B Microphone
Turner RK-56B Noise Canceling microphone
Pre-wired with high quality 4 pin Plug for Cobra / Uniden / President / Galaxy / Radio Shack / Ranger
(+$61.50)

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)
Order total:

Recommended For You

Popup code

Scroll to Top

Specifications

GENERAL👇
Size4.92" (W) x 6.49" (D) x 1.77"
Weight 1.65 lbs
Antenna socketSO-239
Antenna impedance50 ohms
Frequency rangesfrom 26.965 MHz to 27.405 MHz
Power supply (Input Voltage) 13.8 V / 27.6 V
Microphone plugfront (6 pins)
Compatible microphone type Electret , Dynamic
External Vox microphone jack
External loudspeaker jack
Public address
External HP PA socket
USB socket (front)5 V / 2,1 A
DisplayLCD multifunction
Dimmer
Channel display
Frequencies display
S-Meter Digital
Modulation modesAM / FM
Volume adjustment and ON/OFF
Squelch Manual squelch
Automatic Squelch Control (ASC)
Channel selector Rotary
F / Menu function key
Key Beep
Roger Beep
Keu locking
Tone
Channel shortcuts2 , emergency channel (EMG) programmable
Channel scan
Scan Skip
Talkback
Hands Free (VOX)
Automatic SWR meter
SWR Meter
TOT
Filter ANL
Filer NB
Filter HI-CUT
NRC
Noise gate
CTCSS38 Tones
DCS104 codes
Weather channelsfrom 162.400 MHz to 162.550 MHz
Weather/Alert
TRANSMISSION👇
Frequency allowance± 200 Hz
Carrier power4W AM/FM
Transmission interference< 4 nW (-54 dBm)
Audio response300 Hz to 3 kHz
Emitted power in the adj. channel < 20 μW
Microphone sensitivity 3 mV
Drain< than 2 Amp
Modulated signal distortion2%
RECEPTION👇
Max. sensitivity at 20 dB sinad0.5 μV - 113 dBm (AM) / 0.35 μV - 116 dBm (FM)
Frequency response300 Hz to 3 kHz
Adjacent channel selectivity 60 dB
Maximum audio power3 W
Squelch sensitivity min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate 60 dB
Intermediate frequency rej. rate 70 dB
Drain 180 ~ 800 mA maximum (13.6 V) 90 ~ 400 mA maximum (27.8 V)
