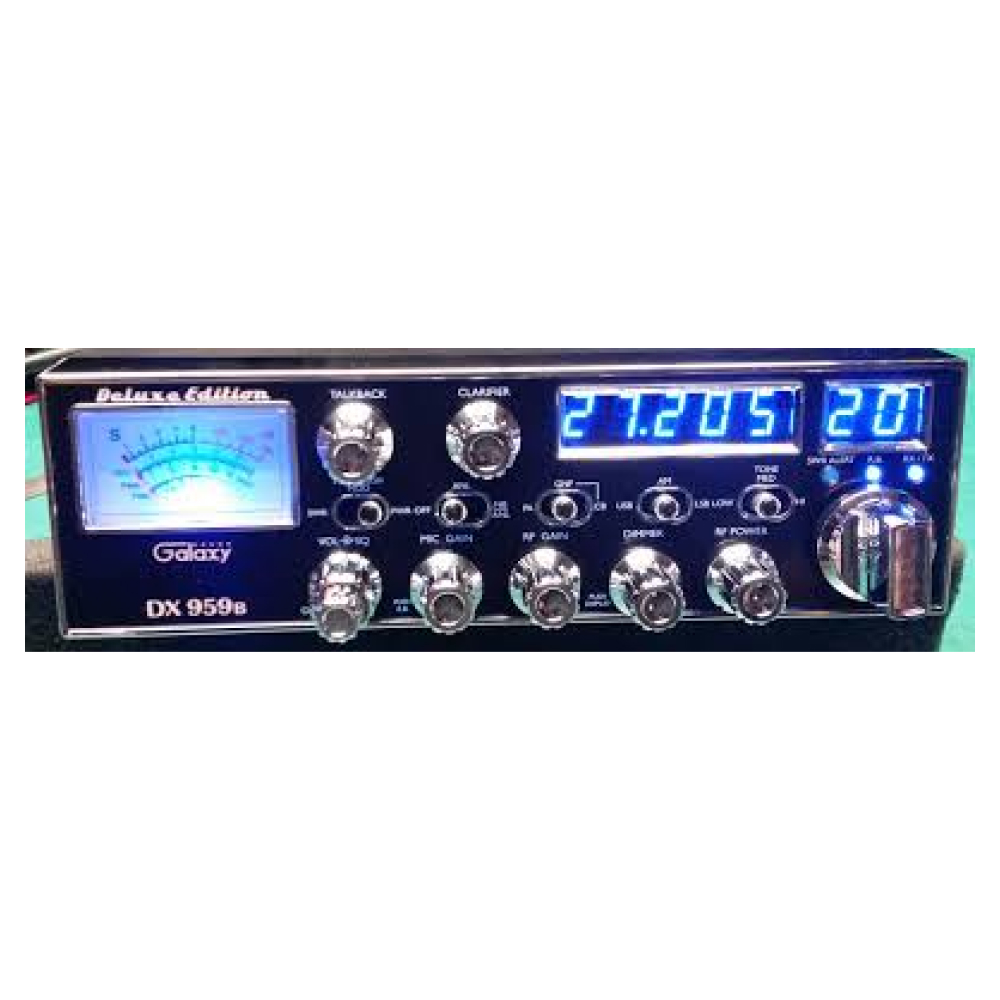

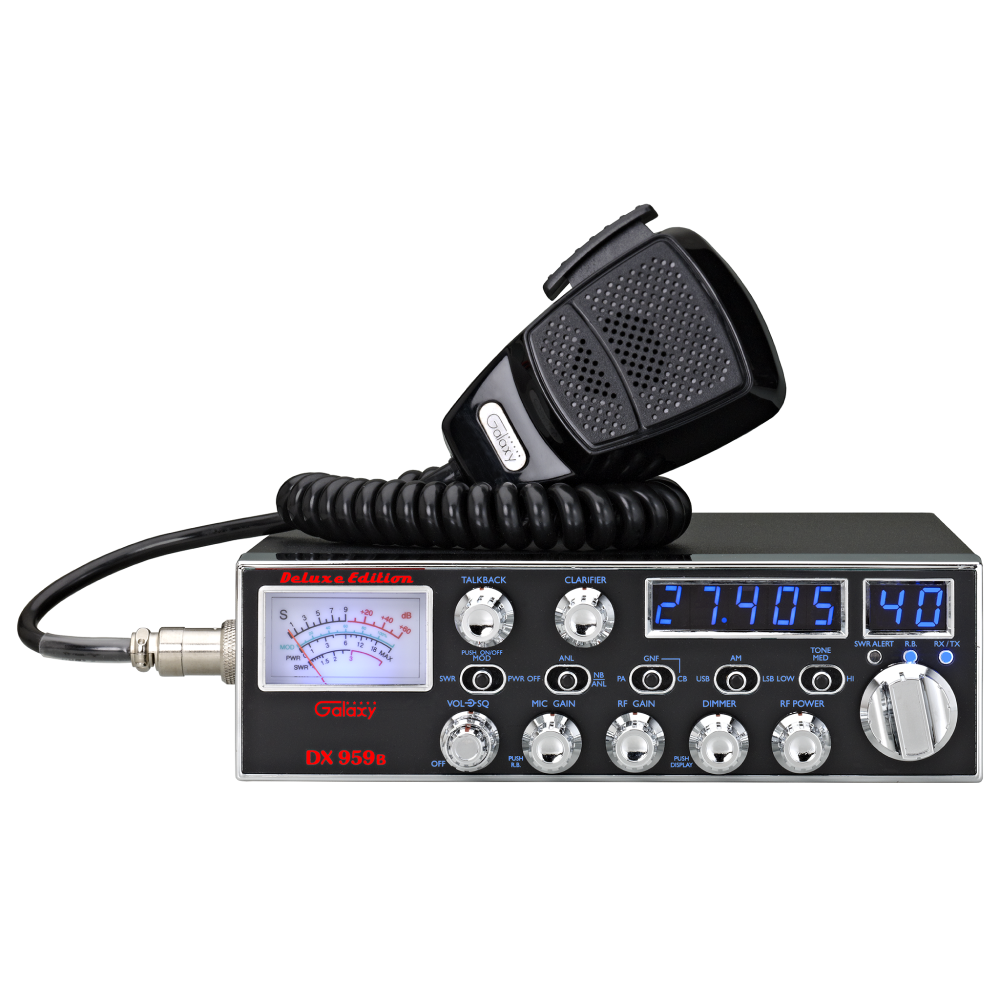

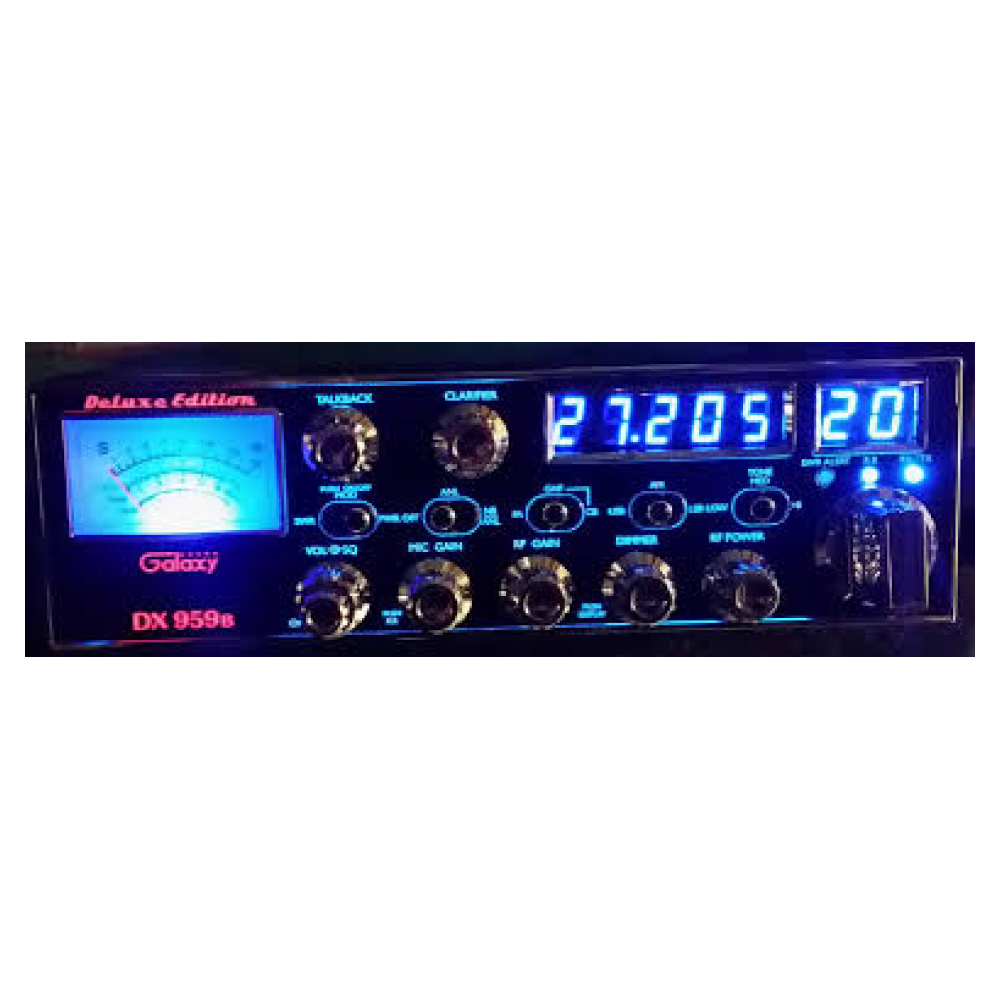

DX 959 B AM/SSB Mobile CB Radio

More information

From Galaxy ” Today, I am happy to announce that our Research & Development Team has come
up with a Deluxe Edition of the DX959 – the DX959B. It is exactly the same
in circuitry, components and operation as the DX959. However, they have
changed the frequency LEDs, channel LEDs, RB LED and RX LED from green to
blue. In addition, they added a “StarLite” faceplate with all lettering
backlit in either blue or red. This does not replace the current DX959. The
old DX959 stays. We now have two versions of the 959.”

Features

-Blue Frequency Display
-Blue Channel Display
-RB and RX LED’s Blue
-StarLite Faceplate (Glow-in-the-Dark red and blue lettering)
-Large, easy-to-read meter with 4 scales:
-“S” Meter indicates up to 60 dB over S9
-Modulation Percentage Scale for use on AM
-Power Scale Calibrated for AM and SSB
-SWR Scale
-Automatic SWR Circuit (no complicated calibration procedure)
-“Talkback” Circuit with On/Off Switch and Volume Control
-Variable Power Output Control
-Roger Beep with On/Off switch and LED Indicator
-Galaxy Noise Filter for use on weak signals
-High SWR Alert LED Indicator
-Two Year Warranty as explained below:
-Five-digit Frequency Display
+/- 1.0 kHz Receive Clarifier
-Noise Blanker and Automatic Noise Limiter
-AM, SSB and PA Modes
-3-Position Tone Control Switch
-Blue/Red LED Indicator for RX/TX
-Blue LED Channel Indicator
-Dimmer Control
-Receive Gain Control
-Mic Gain Control

Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$329.00

upgrade performance

Tune-up.
Perform a tune-up to radio to increase power, audio and performance (AM: 4+w, Peak AM: 24w)
(+$49.00)
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
(+$26.00)
Install an CP-1 Top Gun Audio Compressor.
(on - all the time) Is most noticed on SSB, This amplifies your lower level audio on transmit. NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25.00
RFX-95HD2 Final.
Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. On/Off switch in the back.
$189.00
Change factory power cord
to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
$59.00
Tune-up and frequency conversion. OPTION #1
(Install extra channels with switches in back of radio and tune up radios output)
$79.00

upgrade Microphone

Turner RK-56 Noise Canceling microphone
(wired for this radio with a 4 pin plug)
$46.00
636L Noise Canceling Microphone
(wired for this radio with a 4 pin plug)
(+$29.00)

Upgrade speaker

Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)

Сhange the appearance

Chrome Covers
Exchange the top and bottom covers to Chrome Covers.
(+$32.00)
Diamond Plate Covers
Exchange the top and bottom covers to Diamond Plate Covers
(+$22.00)

Star-Bryte Knobs

with dimmer control integration circuit built so it dims with the factory adjustment. 8 Knob set parts and labor.

Other upgrades

Install a Record/Playback Module
18 seconds. Wired inside the radio with two pushbuttons on the side to record 18 seconds and to play it back.
(+$77.00)

Install an Echo Board (Front)

(with dual controls on the front in the Talkback location. Talkback control is cut free of the dimmer board and moved to the side.)

Install an Echo Board (Side)

(wired internal to the radio with dual controls on the left side to control speed and echo effects)

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Install a Noise toy as a background theme music

(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)

Clarifier "Slider" conversion.

(Modify the Clarifier to control TX and RX frequency. This mod is an add-on to the two frequency conversion mods listed above and if done separately will cost $35)

Order total:

Optional Accessories

Recommended For You

Related products

Popup code

Instagram Facebook Youtube Ebay

The world’s leading CB radio store. Hands-on experience. Get talkin’, we’ll help!

Copyright © 2023 All rights reserved

Scroll to Top

Specifications

GENERAL:
Channels40
Frequency Range26.965 - 27.405 MHz
EmissionAM/USB/LSB
Frequency ControlPhase-Lock-Loop Synthesizer
Frequency Stability0.001%
Temperature Range-30oC to +50oC
Input Voltage13.8V DC
Antenna Impedance50 Ohms
Speaker Impedance8 Ohms
Size7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H)
Weight6 lb
TRANSMITTER:
RF Power OutputFactory settings: AM .8 - 3.5W 12W peak; USB/LSB 7-12W PEP After a Tune-up: AM 1 - 6W 30+W peak; USB/LSB 15 - 28W PEP
Frequency Response300 to 2500 Hz
Frequency Tolerance0.005%
Spurious EmissionBetter than -55dB
Unwanted SidebandBetter than -55dB
RECEIVER:
Sensitivity for 10dB S+N/NAM: 0.5uV; USB/LSB: 0.25uV
Squelch SensitivityLess than 0.5uV
Audio Power Output2W @ 10% distortion
Image Rejection Ratio-65dB
AGC Figure of Merit100mV for 10dB Change in Audio
Clarifier Range+1.0 KHz
