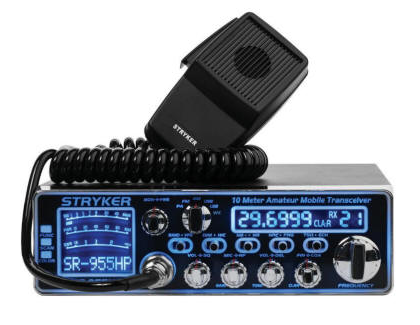

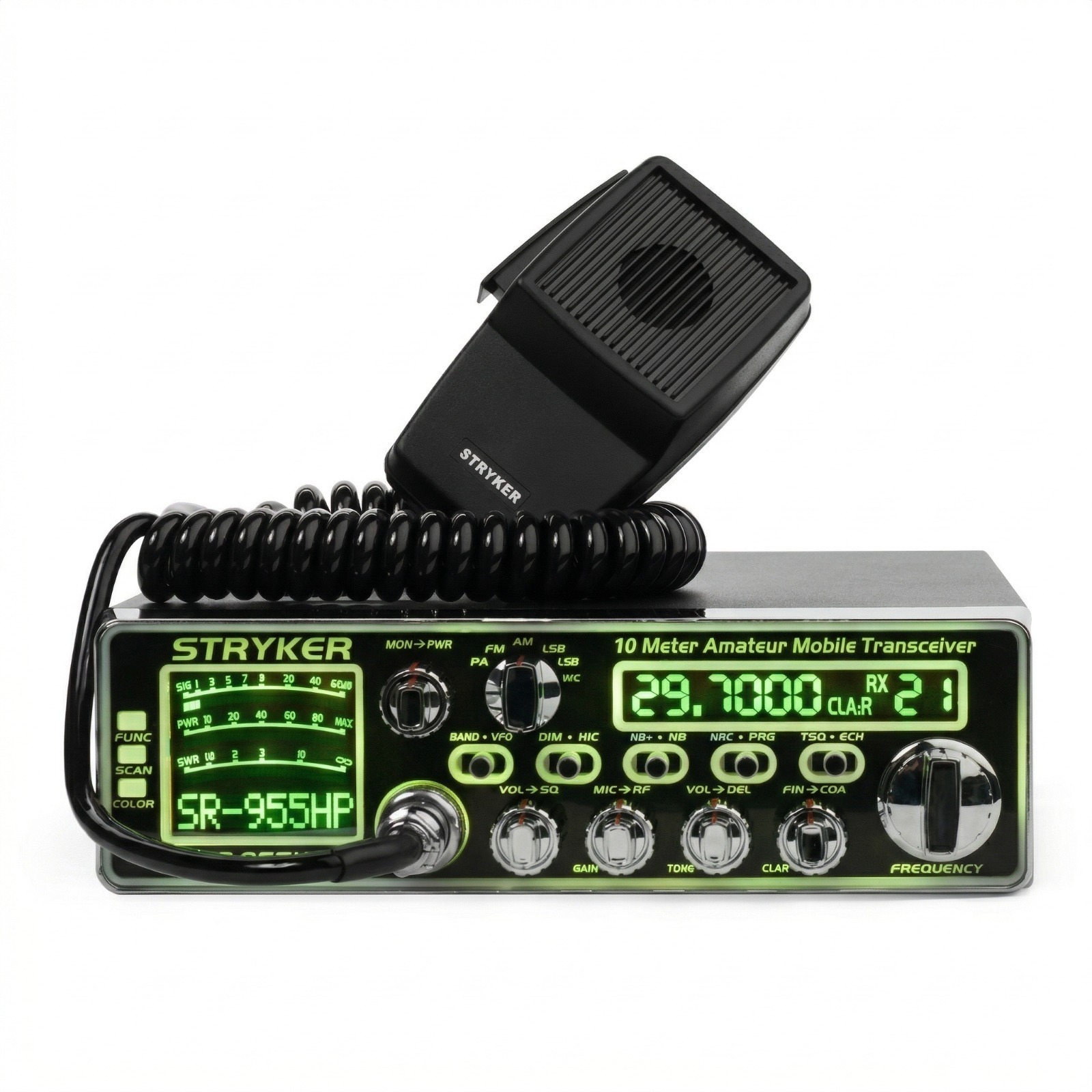

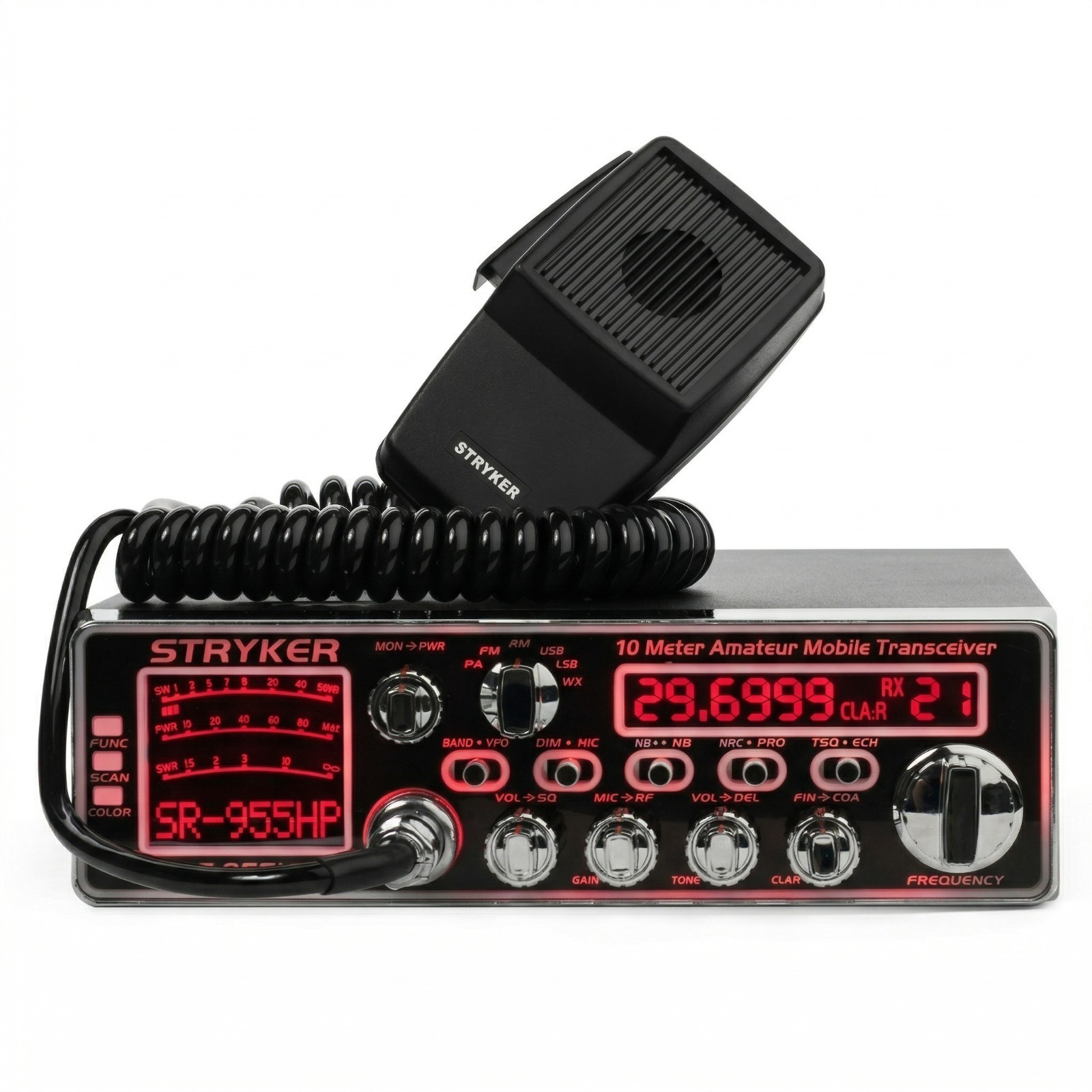

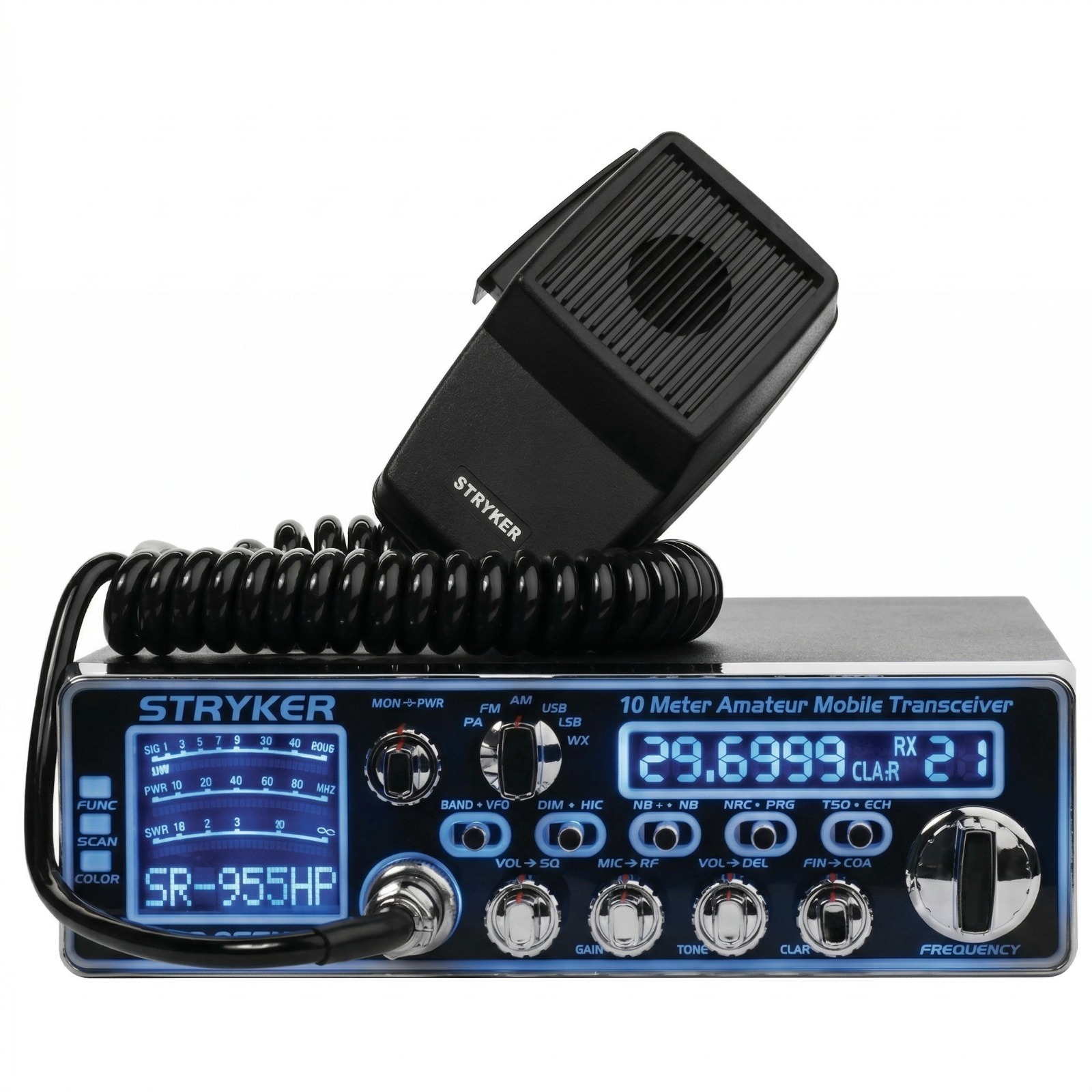

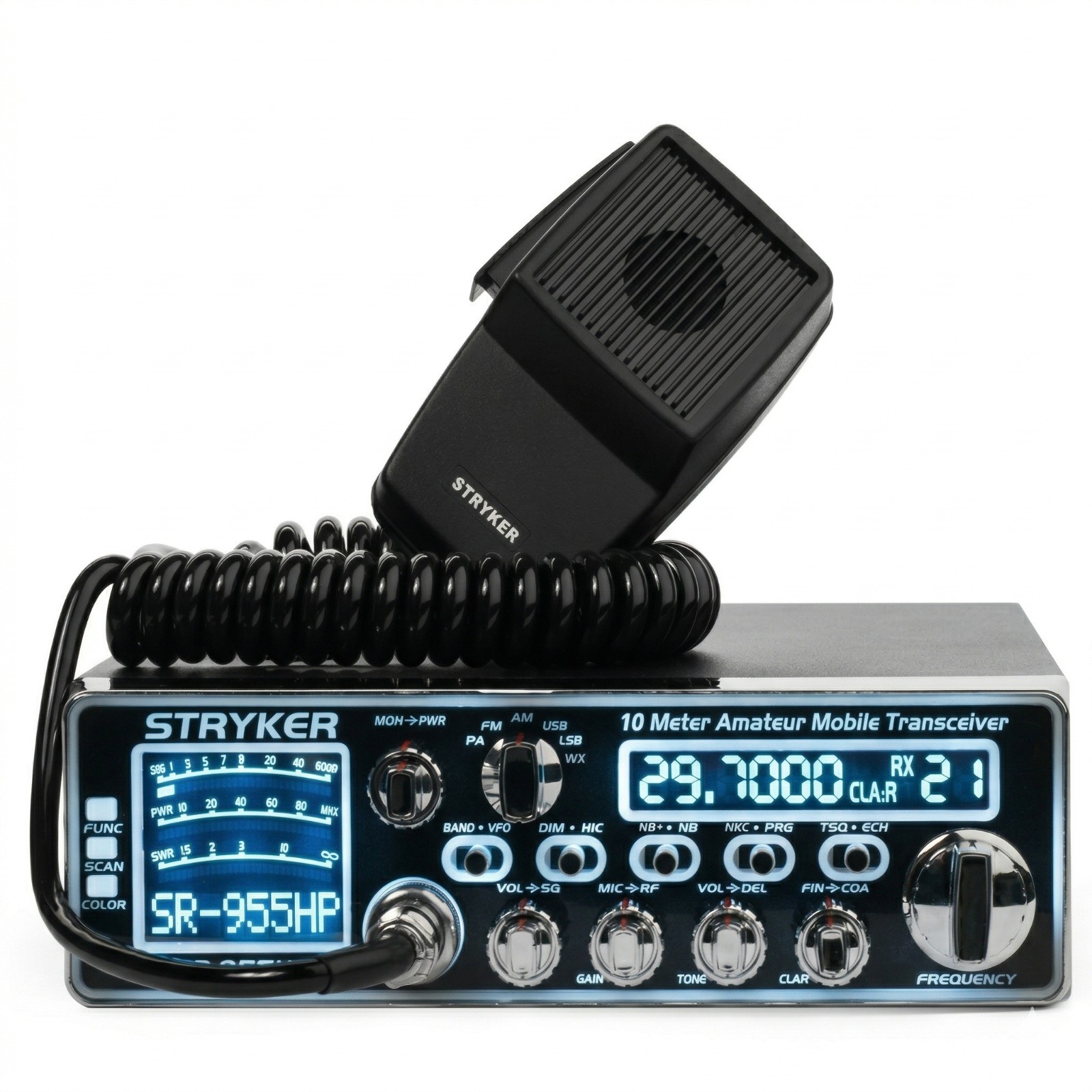

Stryker SR-955HPC+ PLUS AM/FM/SSB 10 Meter Radio

More information

The Stryker SR-955HPC has been Updated to the SR-955HPC+!

– Output over 100W PEP
– Upgraded Noise Reduction Circuit (NRC) minimizes noise during transmit and receive.
– Weather channels and severe weather alerts.
– Supports VHF VFO reception within range of 136 – 174 MHz
– Allows for adjustable Gain Control (AGC) speed, catering to specific user requirements.
– Benefit from the NEW SHORT CHASSIS DESIGN (2.25″ shorter) making installation easier.

If you’re looking for a top-quality 10-meter radio, the Stryker SR-955HPC+ is the clear choice. It offers amazing audio clarity, enhanced durability, and new features that make it the best in its class. Stryker’s commitment to quality means that the SR-955HPC will continue to be the standard by which other 10-meter radios are measured.

Features

  • Advanced Noise Reduction (NR) uses digital signal processing to measure, filter, or compress continuous analog signals, reducing the amount of receiver noise. You get superior performance on crowded airwaves because Stryker is at the forefront of technological developments in radio.
  • Easily navigable function menu for customizing radio controls and features. Included cable to connect to PC for configuring advanced specs.
  • Variable Transmit Frequency Response – You can now change the transmit frequency response of your radio. You can choose from 2.0 kHz, 2.5 kHz, 3.0 kHz, 3.5 kHz, and 4.0 kHz. This is another advanced feature that we have built into the SR-955HPC for even louder and clearer transmit audio.
  • Variable Receiver Frequency Response – This feature allows you to change the receiver frequency response of the radio for the best receiver clarity. You can choose from 2.0 kHz, 2.5 kHz, 3.0 kHz, 3.5 kHz, and 4.0 kHz for enhanced clarity.
  • COMP – Receiver Noise Reduction Feature that helps filter out receiver interference.
  • Gate – Audio processor blocks all unwanted background noise when you are transmitting.
  • CTCSS / DCS – Included at no extra cost. The circuitry is built into the board, so no extra module is required.
  • Upgraded Encoder – No skipping, ever!
  • Rugged construction built to last.
  • Size:
    • Width: 7-7/8 in
    • Height : 2-3/8 in
    • Depth : 7-1/8 in
  • High power 100+ watts PEP
  • AM/FM/SSB (USB/LSB) Modes and PA Circuitry
  • Oversized, Easy-To-Read Meter for Power Output, Modulation, SWR, Incoming Signal
  • Brilliant, selectable 8-color LED-backlit faceplate
  • Dimmer control (32 positions)
  • Variable power and talkback control
  • Six Roger beeps preloaded; Customizable beeps through PC software
  • Up-armored receiver
  • Digital Echo with dual front-mounted controls
  • PC Programmable w/ included USB cable
  • Weather Channel Receiption w/ Alerts
  • Automatic, calibrating SWR meter for precise measurements
  • Hi-Cut Noise Filter
  • Front microphone connector for easy mounting in tight spaces
  • VFO Mode
  • 3-Year Limited Factory Warranty

LIMITED WARRANTY Stryker Amateur Radio warrants this product to be free of defects for a period of three (3) year from the original date of purchase.

You must activate your warranty by completing the online form at http://strykerradios.com/registration-form
This warranty is non-transferable.  This limited warranty is subject to repair or replacement of defective components only.

This warranty is void if the radio has been tampered with or misused. If your Stryker Radios needs repair any time during the (3) year warranty period please visit their website: LIMITED WARRANTY Stryker Amateur Radio warrants this product to be free of defects for a period of three (3) year from the original date of purchase.You must activate your warranty by completing the online form at http://strykerradios.com/registration-form This warranty is non-transferable. This limited warranty is subject to repair or replacement of defective components only. This w arranty is void if the radio has been tampered with or misused. If your Stryker Radios needs repair any time during the (3) year warranty period please visit our website: repairs.strykerradio.com to obtain an RA number. If you do need service after your warranty has expired please submit an RMA request on our website (repairs.strykerradios.com). The rates are reasonable and you can rest assured that your radio will be fixed correctly. IMPORTANT: RETAIN YOUR SALES RECEIPT You will need to include a copy of your original sales receipt along with your radio when sending it in for warranty repair.to obtain an RA number.

If you do need service after your warranty has expired please submit an RMA request on their website (repairs.strykerradios.com). The rates are reasonable and you can rest assured that your radio will be fixed correctly.

 IMPORTANT: RETAIN YOUR SALES RECEIPT You will need to include a copy of your original sales receipt along with your radio when sending it in for warranty repair.

Technical Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$439.00

Upgrade Performance

Tune UP
Tune-up and frequency conversion
(Tune-up, Alignment and expanded frequency coverage)
(+$49.00)

Upgrade Microphone

RK-56B Microphone
Turner RK-56 Noise Canceling microphone
$46.50
Astatic 636L Noise Canceling microphone
Astatic 636L Noise Canceling microphone
(wired for this radio with a 6 pin plug)
$34.50

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00

Add a power Supply

PSV-300
PSV-300
to run this as a Base Station in the house.
$109.50

other upgrades

Install a Record/Playback Module
Install a Record/Playback Module
Radio on Air Recorder Installed
$89.00
Change factory power cord
Change factory power cord
to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
$59.00

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Install a Noise toy as a background theme music

(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)

Install an EXTERNAL PTT keying port.

We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector. 1) Output RCA completely isolated from the radio. the RCA +/- connect to a relay that isolates it from the radios circuits. 2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open)) 4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.

Swich Location

Order total:

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Technical Specifications

Frequency Range28.000-29.700 & 24.890 - 24.990
Frequency Bands10 & VFO Mode
Input Voltage13.8 (recommend 14.2)
Antenna ConnectorUHF SO-239
Frequency ControlPhase-Locked-Loop Synthesizer
Frequency Steps100Hz / 1KHz / 100KHz / 1MHz
Frequency Tolerance0.005%
Frequency Stability0.001%
Temperature Range-20c +50c (-4℉ 122℉)
Power Output AM:15w Carrier, 100w+ Peak / FM: 45W / SSB: 100w+ PEP
Current Drain12A (modulated)
Unwanted Sideband50dB
AM Frequency Response300 to 4000 Hz
SSB Frequency Response450 to 2500 Hz
Output Impedance50 Ohms
Intermodulation Distortion SSB 3rd ordermore than -25dB
Intermodulation Distortion SSB 5th ordermore than -35dB
SSB Carrier Supression55dB
AM/FM Receiver IF 10.695 Mhz and 455KHz
SSB Receiver IF 10.695 MHz
Adjacent Channel SelectivityAM/FM/SSB: 70dB
Image Rejection65dB
