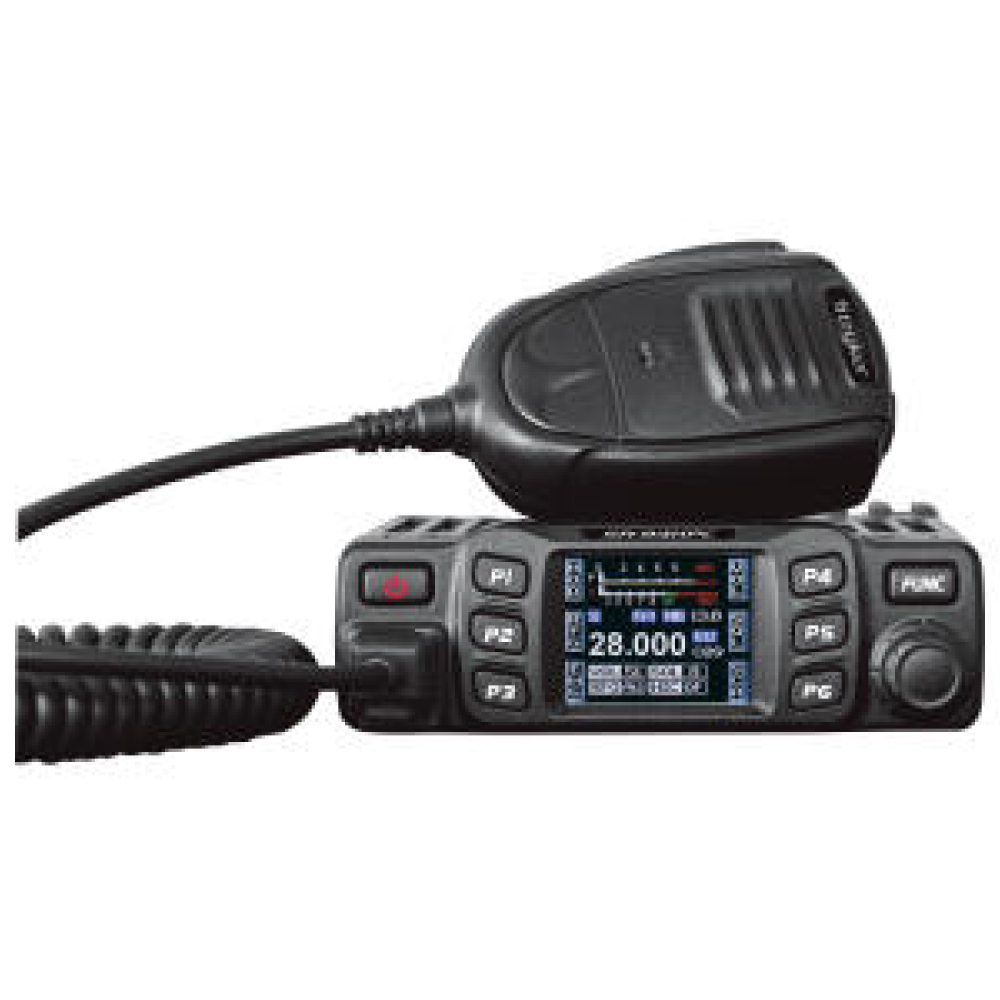

SR-94HPC AM/FM 10 Meter Radio

More information

The new SR-94HPC 10 Meter Radio offer advanced features, customizable settings, and 45 watts AM PEP in a remarkably small chassis. The wrap around cast aluminum heatsink does an excellent job at dissipating any heat that’s generated during transmit.
The SR-94HPC features a full-color TFT display. The clarity of the screen allows you to read it even if you are quickly glancing at it while driving down the road. You can choose what you want to show on the screen (features, functions, frequency, voltage, S units and more). There is a total of 6 push buttons around the screen (P1 – P6). Each button is assigned to a function; for example microphone gain or rf gain. Part of what makes the SR-94HPC unique is you can customize what feature or functions that you use most frequently.

Future accessories for the SR-94HPC include a Wireless Bluetooth microphone and Smart Phone App that connects to the radio via Bluetooth. Now that is what we call innovation!

The SR-94HPC is the perfect radio for an amateur that enjoys talking on 10 Meter FM Repeaters. With the optional CTCSS board, the SR-94HPC has 38 CTCSS tones, 104 DCS tones, and repeater offsets (+ or -).

The power output vs. physical size of the radio is what will surprise many of you! This much power is usually only available in a full-size DX chassis. We managed to utilize three FQP13N10 final transistors for 45+ watts of PEP. Like all Stryker Radios, it has strong AM transmit audio.

Measuring in at only 5.8” L x 4.8” W x 1.4” H, this radio will fit in any vehicle, regardless of size. Never before has full featured, high power radio been available in compact chassis. With clean, modern styling, the SR-94HPC looks great in any vehicle. The PCB & frame are exceptionally rugged, on the road, off the road or no road, the SR-94HPC can take it without any problem.

Features

-Small Size: L 5.87″ x 4.75″ x H 1.5″
-10 & 12 Meters
-45+ Watts PEP
-RF Power High / Low
-AM / FM
-MIC / RF Gain Controls
-PC Programmable
-CTCSS / Rep Offsets
-Function Menu & More
-Dimmable TFT Color Display
-High & Low Power (4 watt or 10-watt carrier)
-Backlit Keys
-Scan Function
-Dual Channel Watch
-Channel and Frequency Display
-Integrated Automatic SWR meter
-Digital S-meter Display
-4 Memory Channels
-Operating Voltage
-RF gain Of / Auto + 10 Attenuation Levels
-Noise Blanker Function & Hi-Cut Filter
-Channel 9 & 19 Quick Access
-Roger Beep function (8 settings)
-CTCSS / DCS (encode & decode) 38 CTCSS / 104 DCS
-DTMF (encode)
-Microphone with UP / DOWN selection
-Squelch (Manual or ASQ) and Volume Adjustable
-Programmable via PC Software (Download from Stryker Website soon)
-Time-Out Timer function
-Bluetooth (optional)

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$149.50

Out of stock

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

GENERAL
Modulation ModeAM/FM
Frequency Range28.000 ~ 29.700MHz (FM) 28.000 ~ 29.700MHz (AM)
Frequency Tolerance±5.0ppm
Input Voltage12/24V
Dimensions(in mm)124(W) x 163(D) x 39(H)
WeightApprox.670g
Frequency ControlPLL Synthesizer
Operating Temperature Range-20° C TO + 55° C
Current Drain - Transmit5A MAX
Current Drain - ReceiverSquelched 0.3A
Current Drain - VOL Max0.8A
Antenna ConnectorUHF,SO-239
TRANSMITTER
Power Output4 Watts FM/AM / 10 Watts AM/FM
Transmission interferenceinferior to 4nW(-54dBm)
Frequency Response300-3000Hz
Modulated signal distortioninferior to 5%
Output Impedance50 ohms
RECEIVER
SensitivityLess than 1uV for 10dB(S+N)/N
Image Rejection70dB
Adjacent Channel Rejection60dB
IF Frequencies1st 10.695MHz 2nd 455KHz
Automatic Gain Control(AGC)Less than 10dB change in audio Output for inputs from 10 to 50000uV
Squelchless than 1uV
Audio Output Power3 watts into 8 ohms
Frequency Response300-3000Hz
