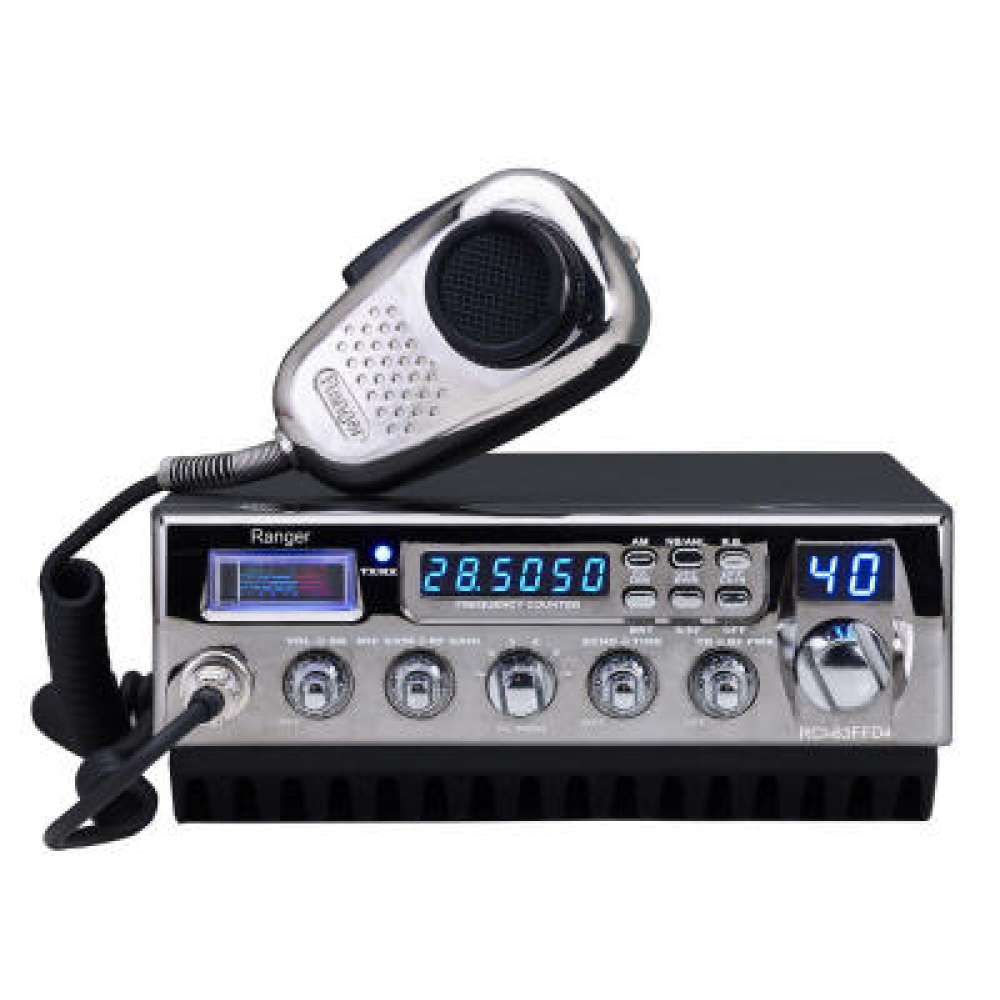

RCI-63FFD4 AM 10M Mobile Radio
RCI-63FFD4 AM 10M Mobile Radio - Image 2
RCI-63FFD4 AM 10M Mobile Radio - Image 3

Videos

.

,

RCI-63FFD4 AM 10M Mobile Radio

More information

The Ranger RCI-63FFD4 has the most output power in its class – an incredible 400 watts PEP. The 63FFD4 has all the features a radio operator wants in a top-of-the-line radio. Experience Ranger’s legendary quality and 30 years of engineering expertise with the RCI-63FFD4.

Features

-New Final Amplifier Design
-375+ Watts PEP Output Power
-RT-1 mosfet transistors
-Variable RF Power Control
-6 Digit Frequency Counter
-New Smoke Chrome Front Panel
-Heavy Duty, High Power Heatsink
-S/RF/SWR Front Panel Meter
-Real Channel Selector Control
-SRA-198 Chrome Noise Cancelling Mic Included
-Variable Echo and Talk Back Controls
-Dimmer Switch
-Thru-Hole Component Circuit Boards
-Cool Blue LED Channel Display
-4pin Front Panel Mic Jack

Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$585.50

Out of stock

Optional Accessories

Recommended For You

Related products

Popup code

Scroll to Top

Specifications

Measurement Conditions
Power Source13.8 V DC
Antenna Impedance50 Ω
Test Temperature25° C
AM Modulation Frequency1 kHz
Mean Signal Input Level1000μV
Reference AM Modulation Percentage1 kHz 30%
Reference Audio Output Power0.5 W
Audio Output Load8 Ω Resistive
Transmitter
Frequency Tolerance @ -20 ~ 60 °C
5 Minutes after Switch onAM : < ± 300 Hz
Carrier Power (High/LowAM :100W/10 W (± 10%)
PEP Power (Two Tone)AM : 400 W (max)
Spurious & Harmonic EmissionAM : > -35 dB
Current Draw @ No ModulationAM : 30 Amps
Modulation Frequency Response
(1 kHz, 0dB reference lower at 450 Hz) AM : -4 / +2-8
Modulation Frequency Response
(1 kHz, 0dB reference upper at 2.5 kHz)AM : -4 / +2-8
Microphone Sensitivity (AM for 50% Modulation)AM : < 5 mV
AMC Range (50 – 100%) AM : > 60 dB
Maximum Deviation Input (30mV)AM : 90% ±10
Receiver (ANL & NB Switch Off)
Sensitivity for 10 dB S/NAM : < 1μV
AGC Figure of Merit
50mV for 10dB Change in Audio OutputAM : > 70 dB
Audio Frequency Response
(Upper Frequency 2.5kHz)AM : -4 / +2-8
Audio Frequency Response
(Lower Frequency 450Hz) AM : -4 / +2-8
Adjacent Channel SelectivityAM : > 55 dB
Maximum Audio Output PowerAM : > 3 W
Audio Output Power @ 10% THDAM : > 2.5 W
RF Gain Control RangeAM : > 30 dB
S/N Ratio @ 1mV InputAM : > 40dB
Squelch Sensitivity at ThresholdAM : < 1 μV
Squelch Sensitivity at TightAM : 1000 μV ±500
S Meter Sensitivity at S-6 (no modulation)AM : 100 μV
Image Rejection RatioAM : > 50 dB
IF Rejection Ratio ISTAM : > 60 dB
Oscillator Dropout Voltage (DC)AM : < 10 V
Current Draw at No Signal AM : < 250 mA
Current Draw at Max. Audio Output AM : < 1 A
Other
SWR CAL (Adjust) @ 1:1AM : 1.0 SWR
SWR CAL (Adjust) @2:1 AM : 2.0 SWR
