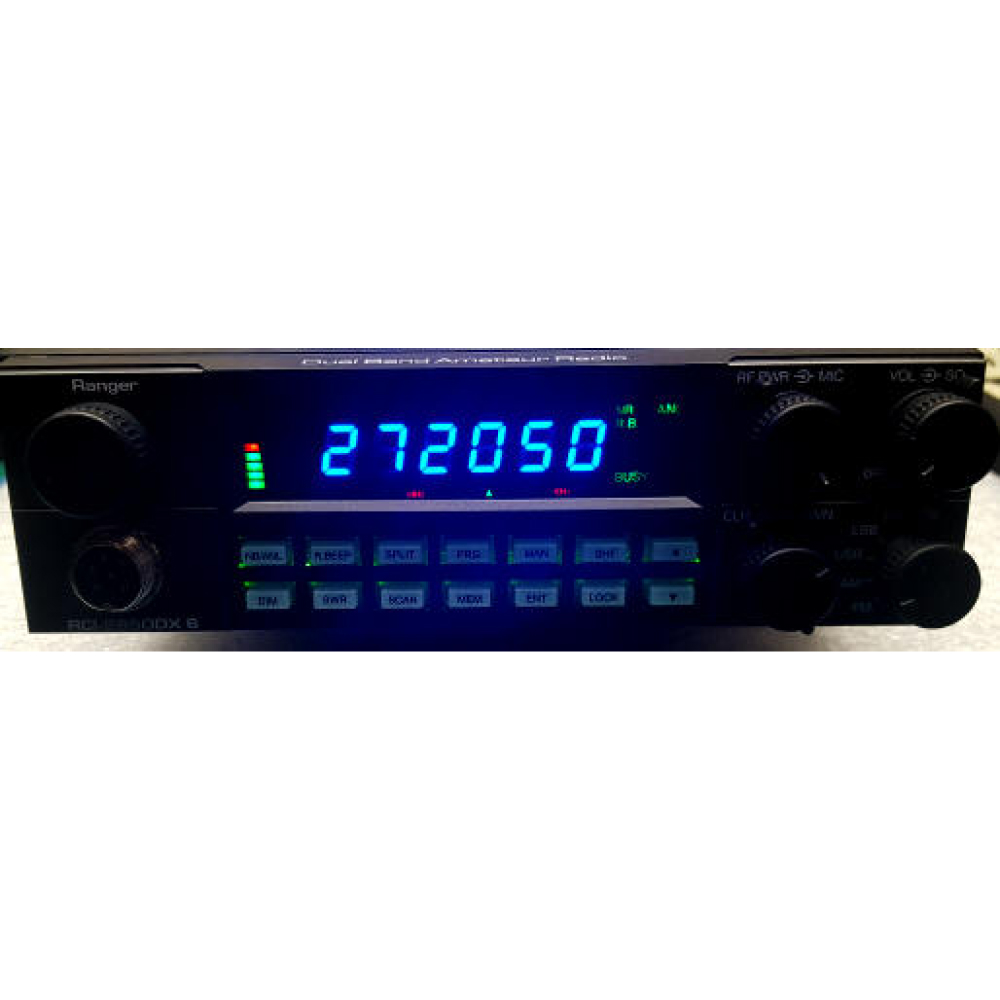

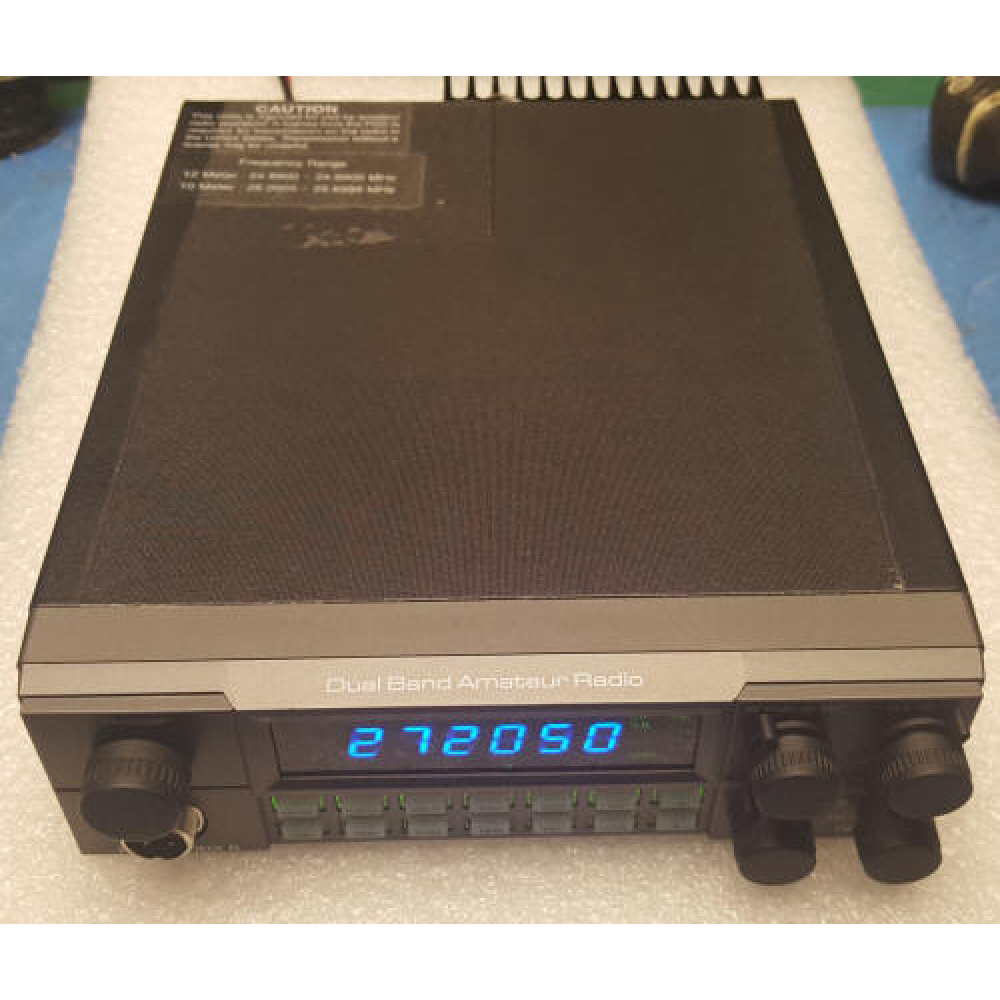

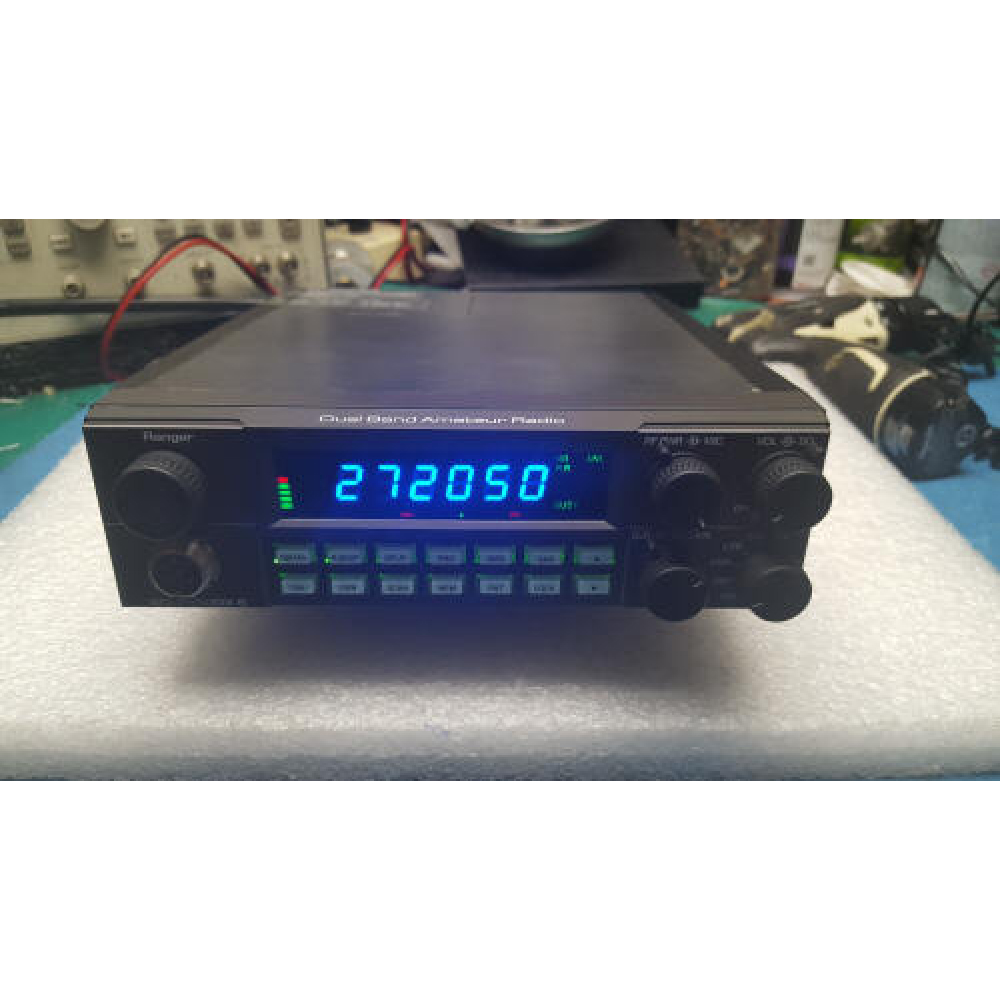

RCI-2950 DX-6

More information

Features

-ALL NEW LED display replaces the old LCD display.  This display will be easier to read from various angles.

-An improved receiver: designed for increased sensitivity and image rejections.

-A double FET balanced mixer: for improved receiver inter-modulation rejection.

– New power supply protection: and temperature compensation for improved stability and reliability over wide temperature ranges.

-Surface mount components: for increased resistance to shock and vibration.

-Improved display lighting: for easy reading in a wide range of light conditions.

-Variable Power Output – great for PSK-31 operation.

-10 & 12 Meter Bands
-Large Frequency Display with Dimmer
-Improved Receiver Design
-Variable Output Power Control
-Active Frequency Scanner
-Receiver Clarifier (±0.5kHz)
-Ten Programmable Frequencies
-Noise Blanker/ANL Circuitry
-Frequency Selector Lockout
-Programmable Repeater Offset
-Public Address Feature

Specifications

click to review tech spec's
Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it.

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$409.50

upgrade performance

Tune-up and frequency conversion
(Tune-up, Alignment and expanded frequency)
(+$49.00)
Add a Slider
option to your frequency conversion Modified the Clarifier for ability to control frequency on TX as well as RX, requires frequency realignment This mod is available to some who want it, but I don't necessarily recommend it)
$25.00
Install an CP-1 Top Gun Audio Compressor.
(on - all the time) Is most noticed on SSB, This amplifies your lower level audio on transmit. NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25.00
Change Keyboard to BLUE
exchange out the 8 green LED's and install 8 Blue so keyboard is a nice blue color.
$39.00
Change factory power cord
to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
$59.00

Upgrade speaker

Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)

Сhange the appearance

Chrome Covers
Exchange the top and bottom covers to Chrome Covers.
(+$32.00)

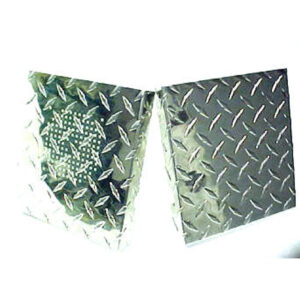

Diamond Plate Covers
Exchange the top and bottom covers to Diamond Plate Covers
(+$22.00)

Upgrade Microphone

4 Pin to 6 Pin microphone adapter
$10.00

Other upgrades

Install a Record/Playback Module
18 seconds. Wired inside the radio with two pushbuttons on the side to record 18 seconds and to play it back.
$77.00

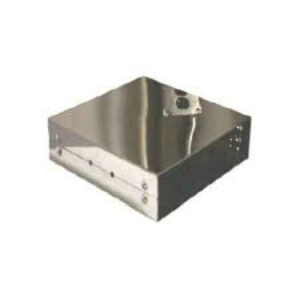

PSV-300
to run this as a Base Station in the house.
$109.50
Turner RK-56 Noise Canceling microphone
(wired for this radio with a 4 pin plug)
$46.00
Astatic 636L Noise Canceling microphone
(wired for this radio with a 6 pin plug)
$29.00

Install a Noise toy

Wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want.

Install a Noise toy as a background theme music

Wired inside the radio with a switch to play any background music at very low volume so you can talk over it.

Turner RK-56 Noise Canceling microphone.

(wired for this radio with a 6 pin plug)

(+$61.00)

Astatic 636L Noise Canceling microphone.

(wired for this radio with a 6 pin plug)

(+$44.00)

Astatic RD104-E Amplified microphone.

(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.

Install an Echo Board (Side)

(wired internal to the radio with dual controls on the left side to control speed and echo effects)

Install High Pass Filter Switch

(wired to tone control location inside the radio to cut the high frequency (hiss) sound to a lower tone. Much easier to listen to, I wouldn't own a Ranger without this mod.)

Install an EXTERNAL amplifier keying port.

or PTT OUT. We use an RCA jack in the back for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector. 1) Output RCA completely isolated from the radio. +/- of RCA connects to a relay that isolates it from the radios circuits. 2) Optional BYPASS switch in case your external device does not have one. (turns port off (stays open)) 3) Works all the time in high or low power modes.. 4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.

Install Talkback w/ a switch

(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)

Install Talkback w/ no switch

(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)

Order total:

Optional Accessories

Recommended For You

Related products

Popup code

Instagram Facebook Youtube Ebay

The world’s leading CB radio store. Hands-on experience. Get talkin’, we’ll help!

Copyright © 2023 All rights reserved

Scroll to Top

Specifications

GeneralRCI-2950DX
Frequency Range10 Mtr: 28.000 - 29.6999 MHz 12 Mtr: 24.8900 - 24.9900 MHz
Tuning Steps1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz
EmissionUSB, LSB, CW, AM, FM
Frequency Tolerance0.005%
Frequency ControlMicroprocessor / Phase-Locked-Loop Synthesizer
Frequency Stability0.001%
Operating Temperature Range-10 ºC to + 50 ºC
Meter Function RF Output, RX Signal Strength, Modulation, SWR (LCD Display Indicates Relative Values)
Antenna Impedance50 W
Input Voltage13.8 Vdc
Microphone400 W Dynamic PTT - 6 Pin
Size (W x D x H) 7-7/8" x 11" x 2-3/8"
Weight 4 lb 3 oz
Shipping Weight10 lb.
Transmitter
RF Power Output (Factory OEM)CW / AM / FM: variable 2-20 Watts RMS Peak AM: 60 Watts Peak power SSB: 60 Watts (PEP)

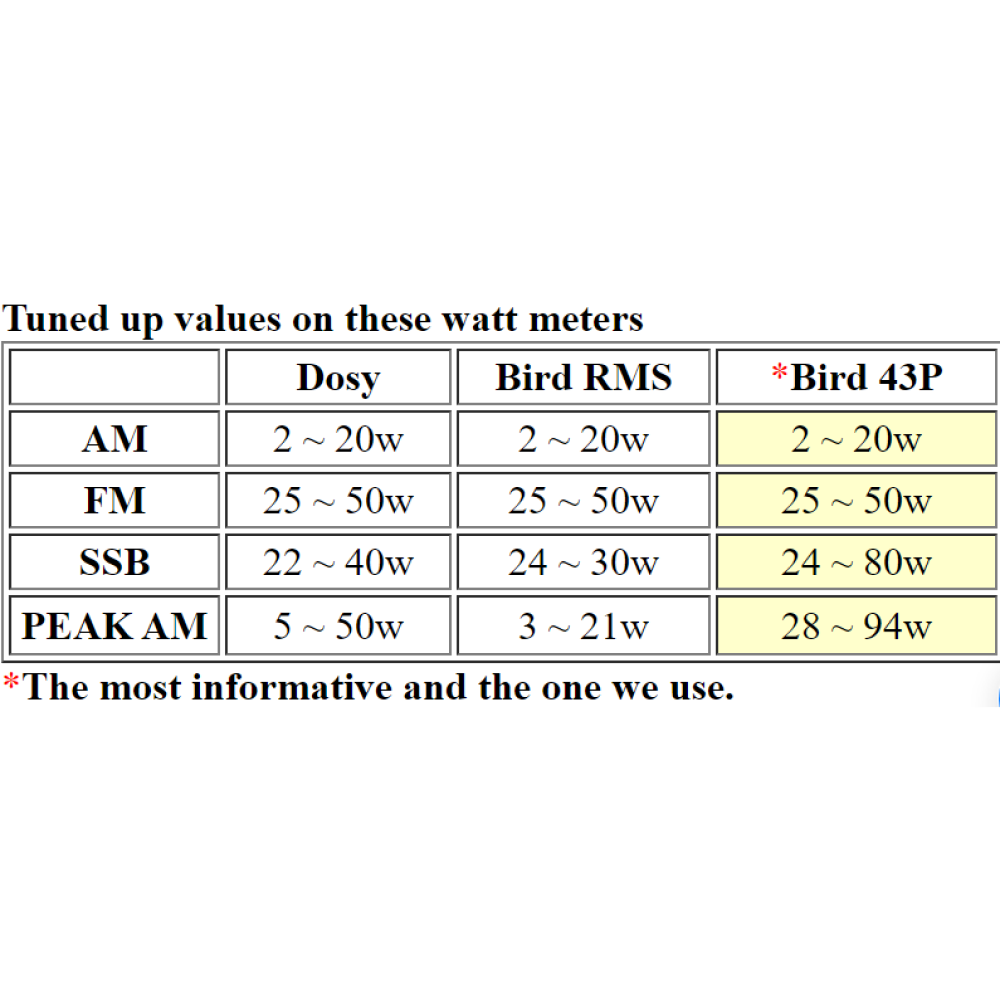

RF Power Output (Tuned-Up)CW / AM / FM: variable 2-20 Watts RMS Peak AM: 36-110 Watts Peak power SSB: 90 Watts (PEP)
ModesUSB, LSB, CW, AM, FM, PA
CW KeyingSemi break-in
Carrier Suppression- 50 dB
Spurious Emission- 50 dB
Antenna ConnectorUHF Type, 50 W
Receiver
SensitivityAM / CW: 0.5 µV for 10 db SINAD FM: 0.25 µV for 12 db SINAD SSB: 0.15 µV for 10 db SINAD
Selectivity- 55db
Image Rejection Ratio- 65 db
Audio Output Power2.5 Watts @ 10% THD into 8 W
