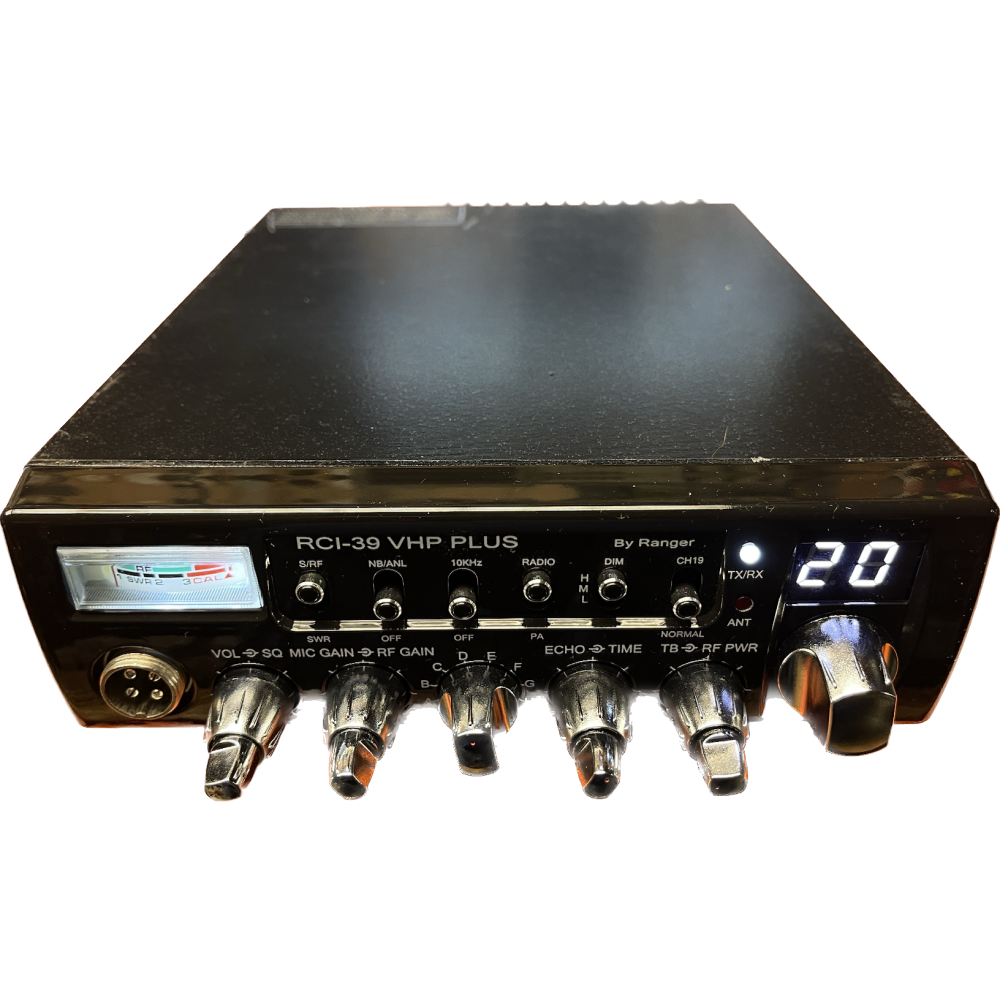

Ranger RCI-39VHP+ AM 10M Mobile Radio

More information

Smaller size chassis the same size as a Cobra 29 Cb radio. This radio packs a lot of power in a smaller size radio with 80+ watts.  So this is a DX radio that will now fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for  the Cobra 29 size).

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it.

Features

  • Cobra 29 Size Chassis.

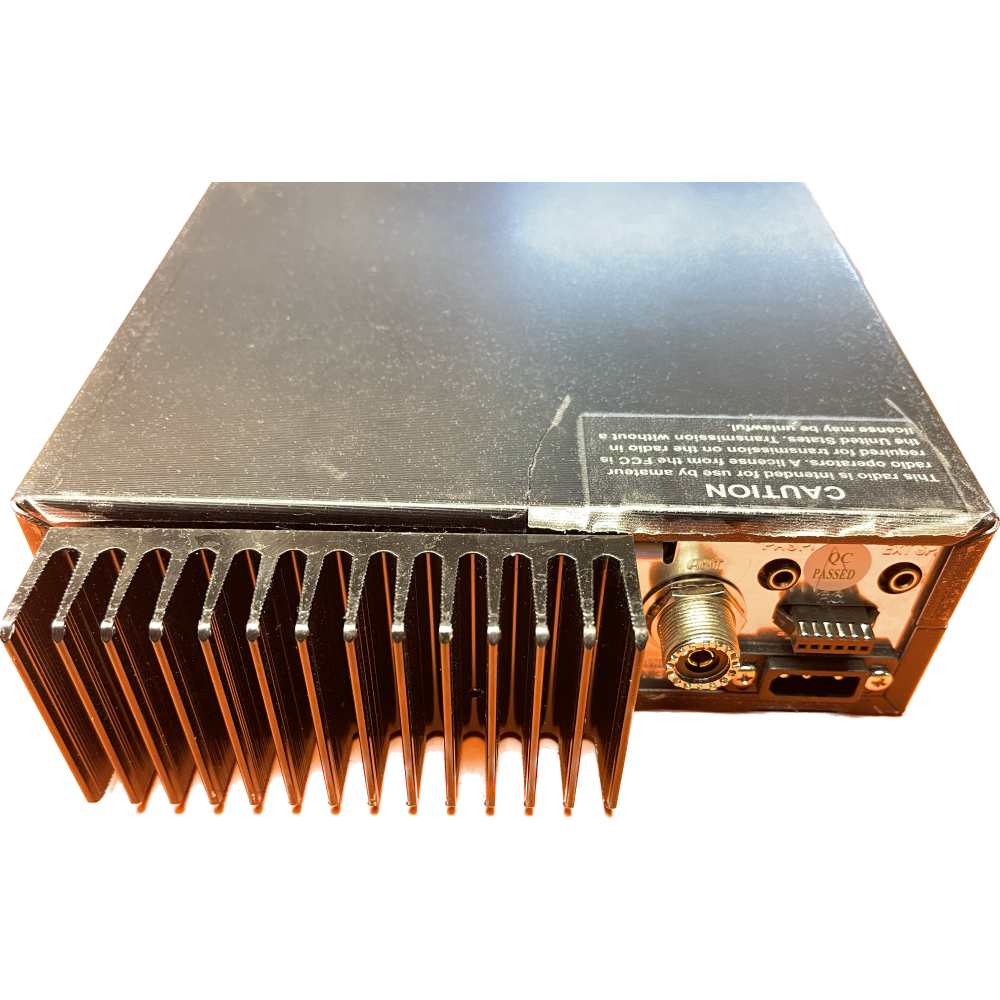

  • Heavy-Duty Back Panel Heatsink, New Design
  • Frequency Range:
    28.000 ~ 29.699 MHz (10 Meter Amateur Band)

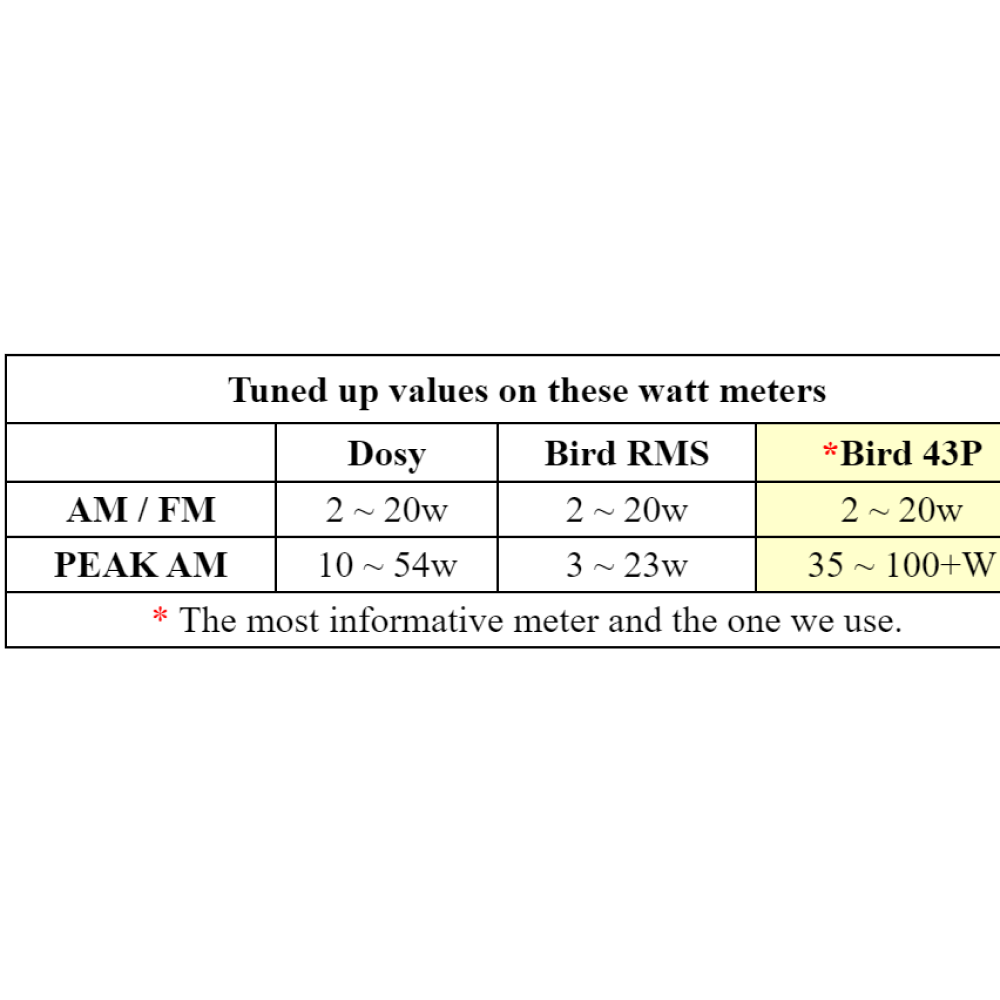

  • RF Output Power:
    80+ Watts Peak

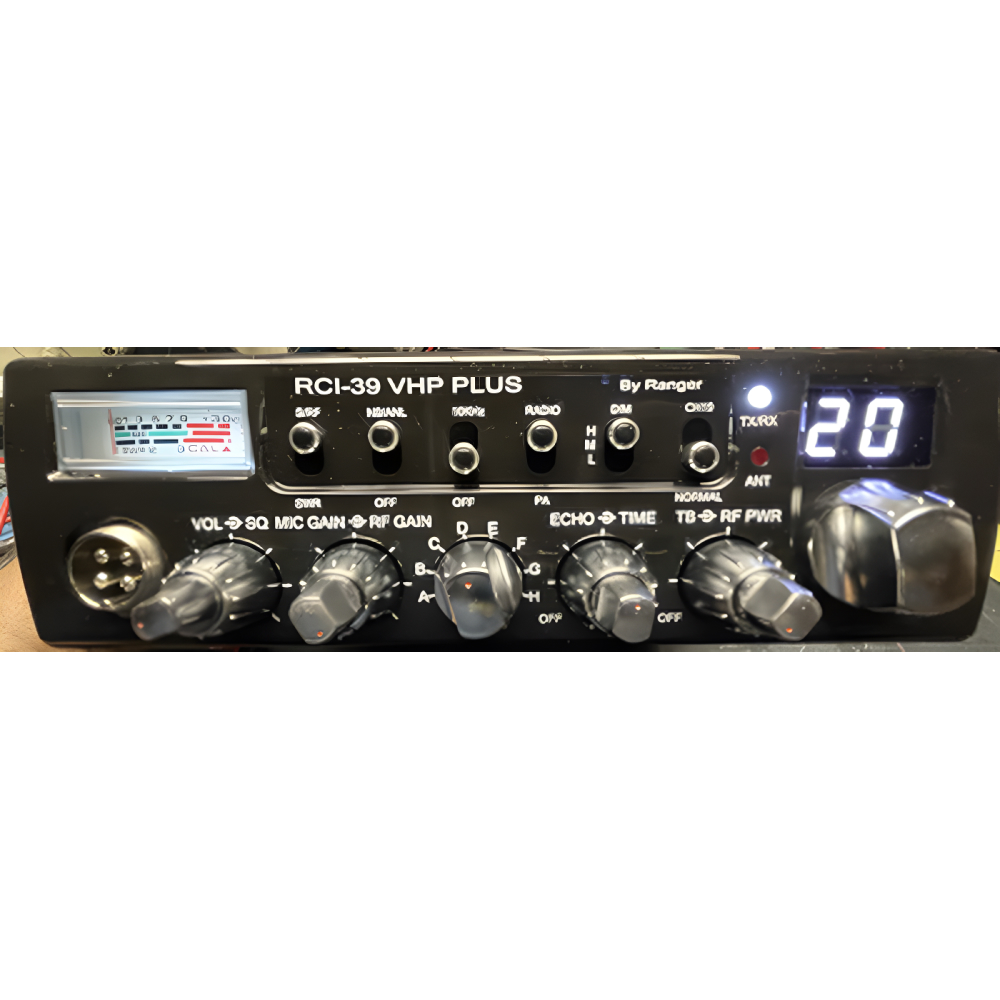

  • New BLACK Front Panel
  • NEW 8 Bands (2 more bands)
  • 4pin Front Panel Mic Jack.
  • New white LED Channel Display
  • Real Channel Selector Control

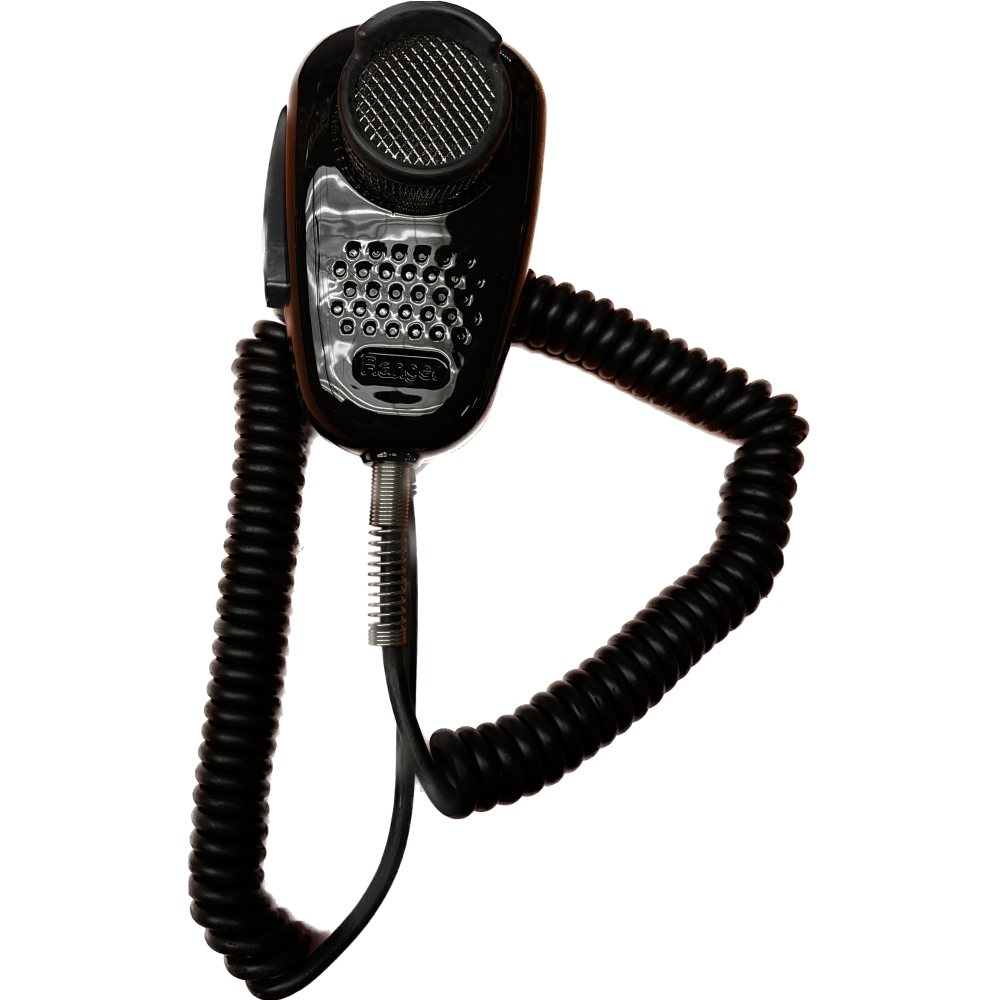

  • SRA-198 Chrome Noise Cancelling Mic Included. This is a great mic, no need to upgrade.
  • Variable Echo and Talk Back
  • 3 Stage Dimmer Switch
  • Operation Mode:
    -AM / PA
  • If you are looking for what changed with the PLUS version it is these three things:
    -Face Bezel is now Black
    -The RF meter, RX/TX light and the channel display are white.
    -2 extra bands of 40 channels.

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$359.50

Upgrade Performance

Tune UP
Tune-up, Alignment and Frequency conversion
Perform a tune up, alignment, and expanded frequency conversion to the radio.
$39.50
Perform Receiver Improvement Modification
Perform Receiver Improvement Modification
These mods replace key RX parts for better sensitivity.
$26.00

other upgrades

Change factory power cord
Change factory power cord
to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
$59.00
Install a Record/Playback Module
Install a Record/Playback Module
Wired inside the radio with two push buttons on the side to record 120 seconds and to play it back.
$77.50

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Install Star-Bryte Knobs

With dimmer control. Includes a 6 Knob set, parts and labor.

Upgrade Microphone

Astatic 636L Noise Canceling microphone
Astatic 636L Noise Canceling microphone
$34.50
RK-56B Microphone
Turner RK-56B Noise Canceling microphone
Pre-wired with high quality 4 pin Plug for Cobra / Uniden / President / Galaxy / Radio Shack / Ranger
$46.50
D104-M6 Amplified Microphone
D104-M6 Amplified Microphone
Amplified microphone (wired 4-pin and a Duracell battery added)
$59.50

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00
Order total:

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

General
Frequency Range 28.145 - 29.655 MHz
Modes AM
Frequency Control PLL Synthesizer
Frequency Stability 0.001%
Operating Temp. Range - 30 ºC to + 50 ºC
Input Voltage 13.8 Vdc
Antenna Impedance 50 Ohms
Size (W x D x H) 7.25" x 9"x 2.25"
Weight 3.5 Lbs.
Shipping Weight 6 Lbs.
Transmitter
RF Power Output AM: 10W 25W PEAK
Spurious Emission Better than -50 dB
Audio Distortion 10 %
Frequency Response 300 to 2500 Hz
Microphone Noise Cancelling
Receiver
AM Sensitivity for 10 dB SINAD0.5 µV
Squelch Sensitivity 0.5 µV
Image Rejection - 50 dB
Hum and Noise - 40 dB
Audio Output Power 2.5W @ 10% THD
AGC Figure of Merit 80dB for 50mV for 10dB change in audio
Audio Response 300 to 2500 Hz
