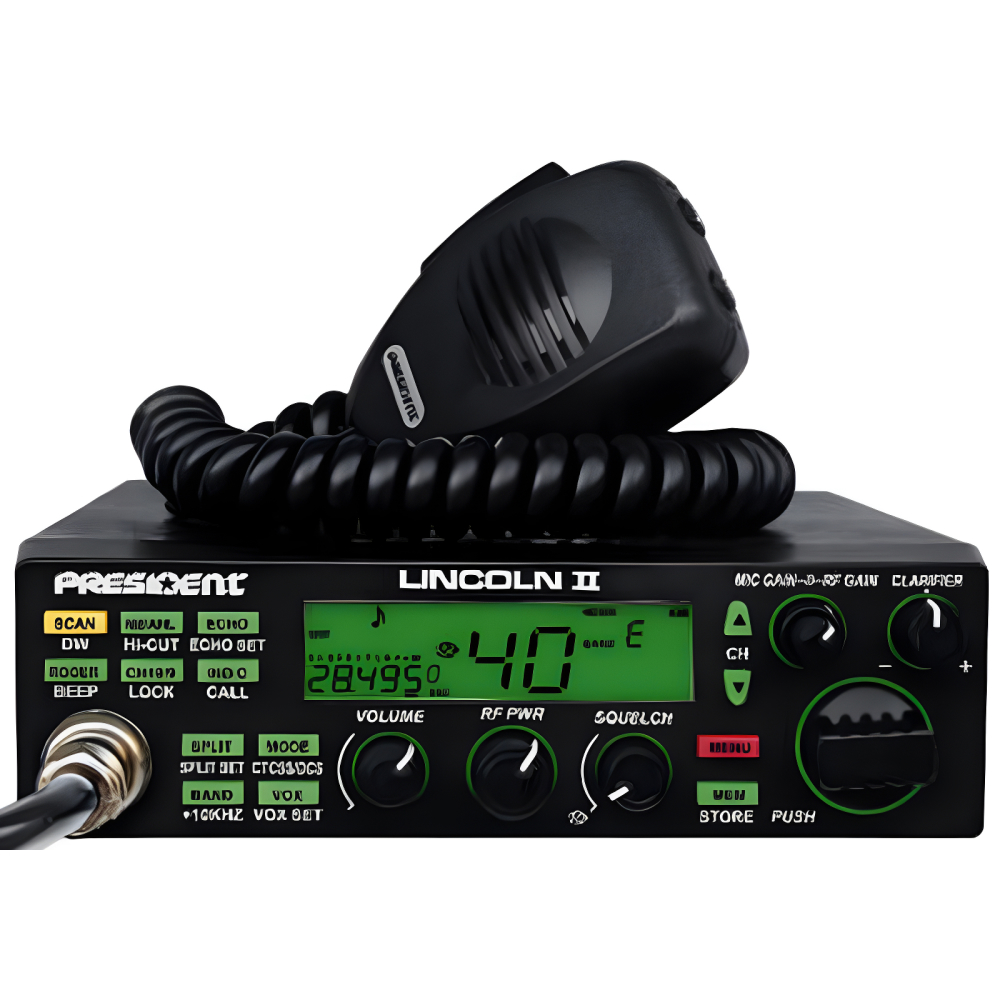

Lincoln II+ V4 AM/FM/SSB/CW 10 Meter Radio

More information

Download Manual

The same as LINCOLN II V3 plus:

-The 12meter band has been added
(24,880Mhz to 24,980Mhz)
-The key “CH19/9” has been replaced by “Emergency Channel 1 and 2”
Programmable by the user menu.
-The “+” printed on the front panel of the radio
Warranty Duration 2 + 3 years.
PROGRAMMING CABLE NOT INCLUDED WITH RADIO.
Back light colors:



Features

– Rotary switch and Up/down channel selector
– VFO Mode
-(continuous scanning of 28.000 MHz to 29.700 MHz)
-Volume adjustment and ON/OFF
-RF Power
-Manual squelch and ASC (Automatic)
-Multi-functions LCD display
-Frequencies display
-S-meter
-Public Address
-Vox function (Hands free)
-ANL filter , NB and HI-CUT
-RF Gain / Mike gain
-Clarifier
-Channels and memories scan
-6 Memories
-CTCSS (38 tones)
-DCS (104 codes)
-Dim
-MENU function key
-Beep Function
-Roger Beep
-Mode switch AM/FM/LSB/USB/CW

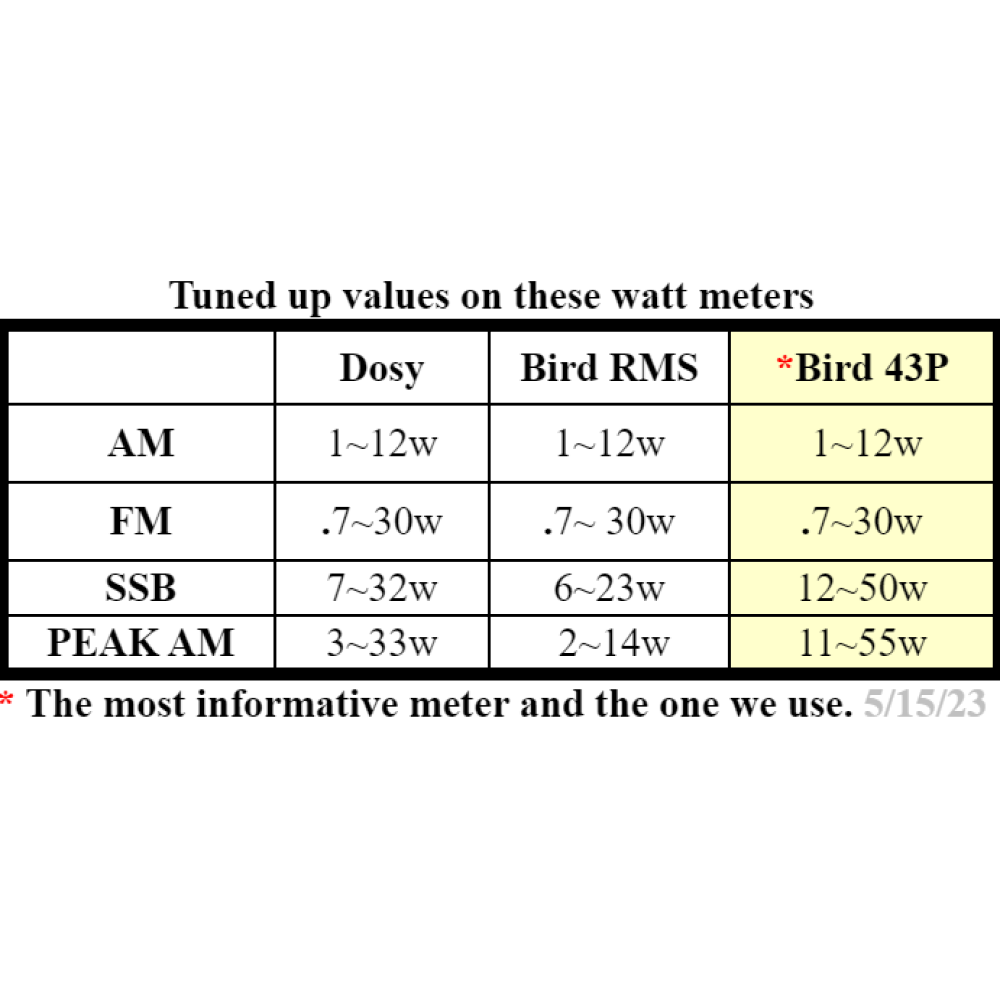

-Factory settings:
-4 to 12w – AM carrier power variable
-AM Peak 35-40W
-25W on FM,
-28W PEP on SSB.
-Dual watch
-Key locking
-SWR (Power Reading /SWR)
-Preset 9/19
-TOT (Time Out Timer) adjustable

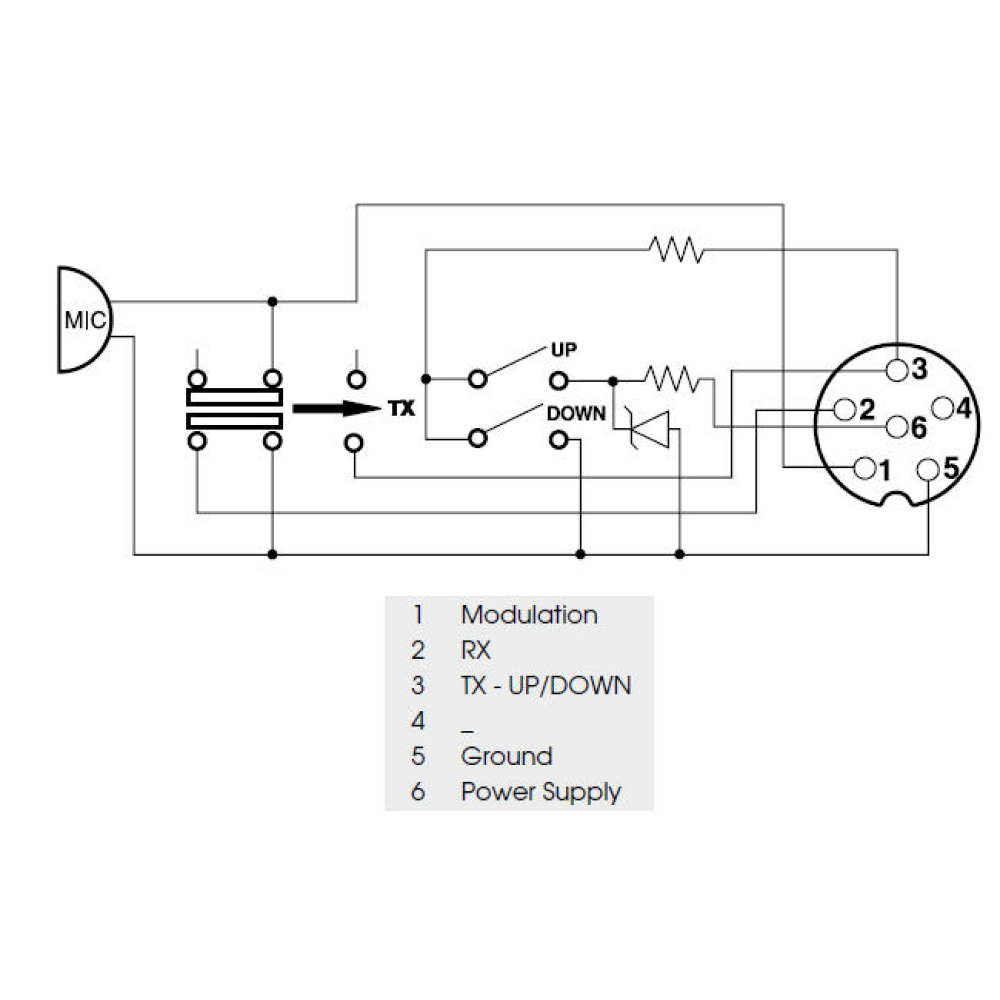

-Front microphone plug

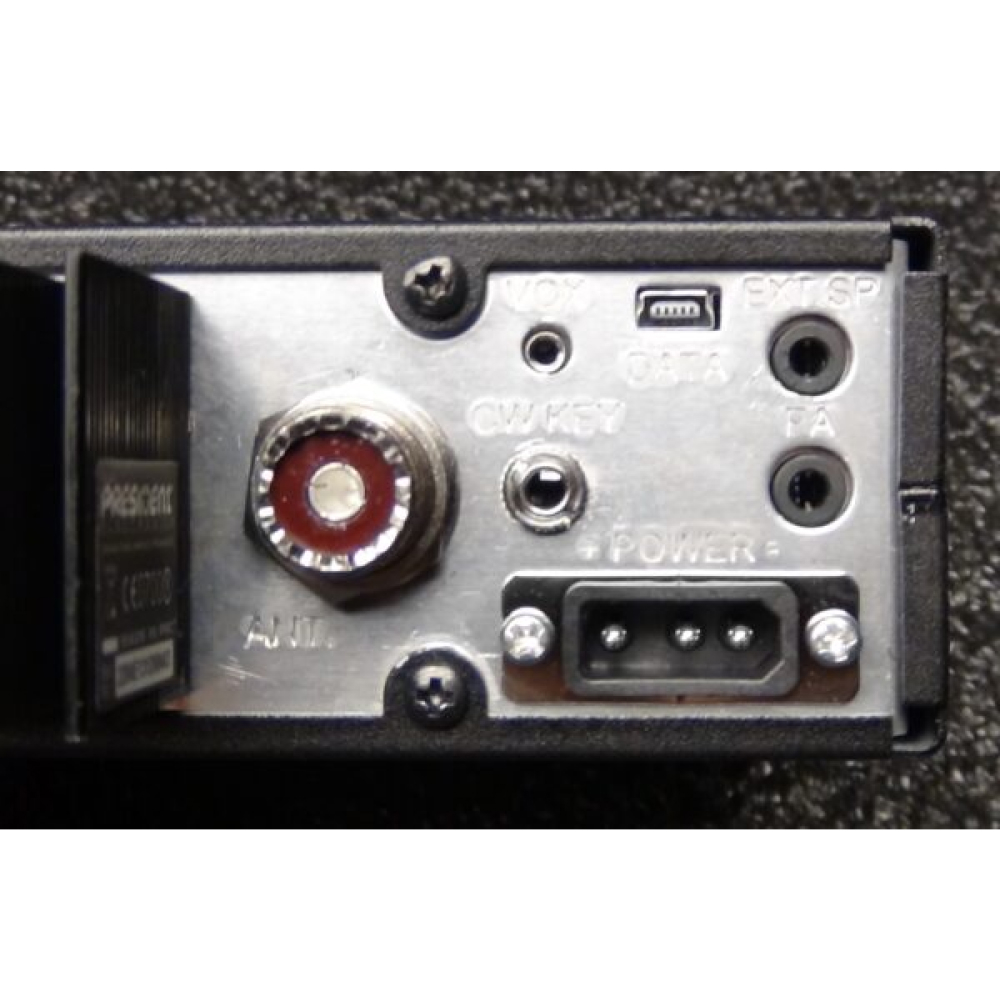

-External loudspeaker jack



Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$339.50

Upgrade Performance

Tune-up and frequency conversion
(Tune-up, Alignment and expanded frequency coverage)
$39.00

Upgrade Microphone

DIGIMIKE Noise Cancelling Microphone
Pre-wired with high quality 6 pin Plug.
$47.00
Astatic 636L Noise Canceling microphone
(wired for this radio with a 6 pin plug)
(+$44.00)
4-pin microphone to 6-pin radio adapter
(+$10.00)

Upgrade speaker

Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00

Add a power Supply

PSV-300
to run this as a Base Station in the house.
$109.50

Other upgrades

Astatic RD104-E Amplified microphone.

(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.

Turner RK-56 Noise Canceling microphone.

(wired for this radio with a 6 pin plug)

Order total:

Optional Accessories

Recommended For You

Related products

Popup code

Instagram Facebook Youtube Ebay

The world’s leading CB radio store. Hands-on experience. Get talkin’, we’ll help!

Copyright © 2023 All rights reserved

Scroll to Top

Specifications

General
Bands 10
Modulation modes AM/FM/LSB/USB/CW
Frequency ranges from 24.880 MHz to 29.700 MHz
CTCSS 38 tones
DCS 104 codes
Antenna impedance 50 ohms
Power supply 13.2 V
Dimensions H x W x D in (mm) 2" (52) x 6-3/4(170) x 10"(25o)
Weight 1.4 kg
Accessories supplied power cord with fuse 1 microphone and its hanger 1 mounting bracket with fixing screws
Transmission
Frequency allowance +/- 300 Hz
Carrier power 12 W AM (40W Peak)/ 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interferenceinferior to - 50 dBc
Audio response 300 Hz to 3 kHz
Emitted power in the adj. channelinferior to 20 µW
Microphone sensitivity3 mV
Drain6 A (with modulation)
Modulated signal distortion 1.8 %
Reception
Maxi. sensitivity at 10 dB sinad0,5 μV -110 dBm (AM) 0,35 μV -116 dBm (FM) 0.28µV-118 dBm (USB/LSB/CW)
Frequency response 300 Hz to 3 kHz
Adjacent channel selectivity 60 dB
Maximum audio power 3 W
Squelch sensitivity mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm
Frequency image rejection rate60 dB
Intermediate frequency rej. rate70 dB
Drain 400 mA nominal, 600 mA max
