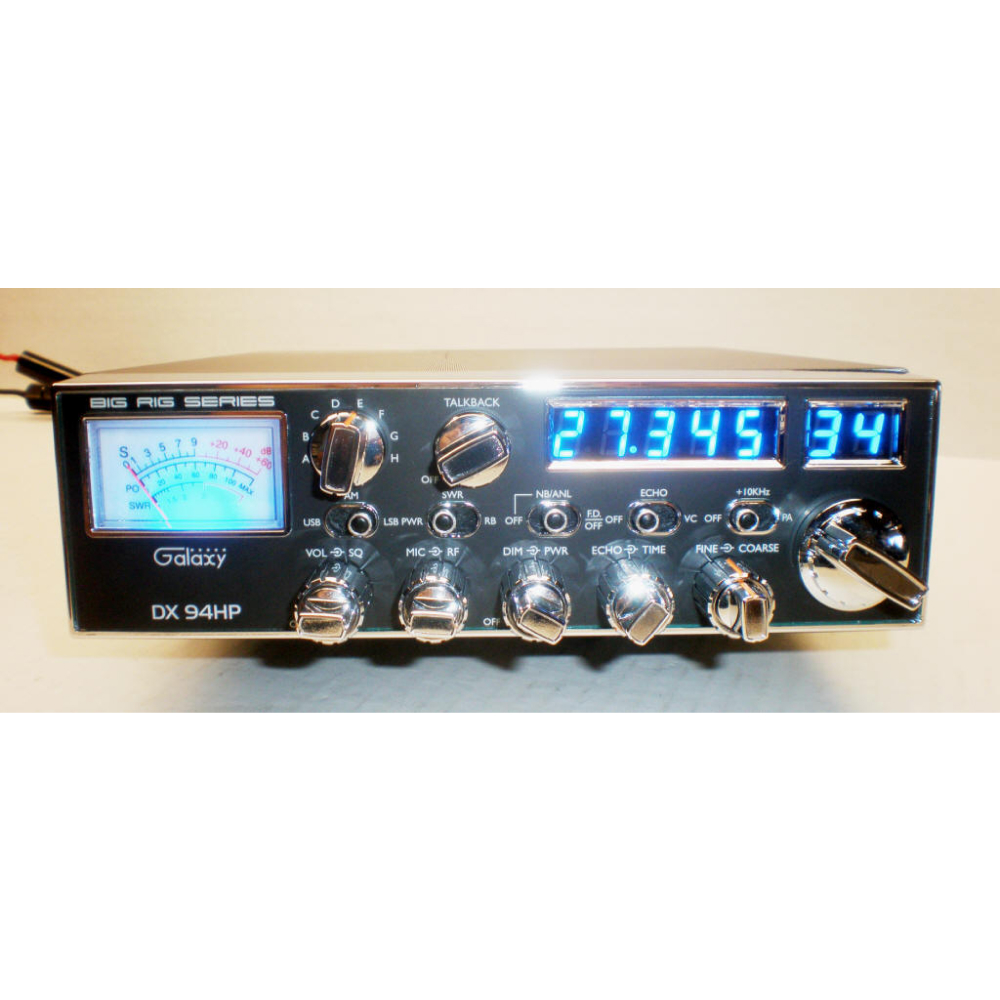

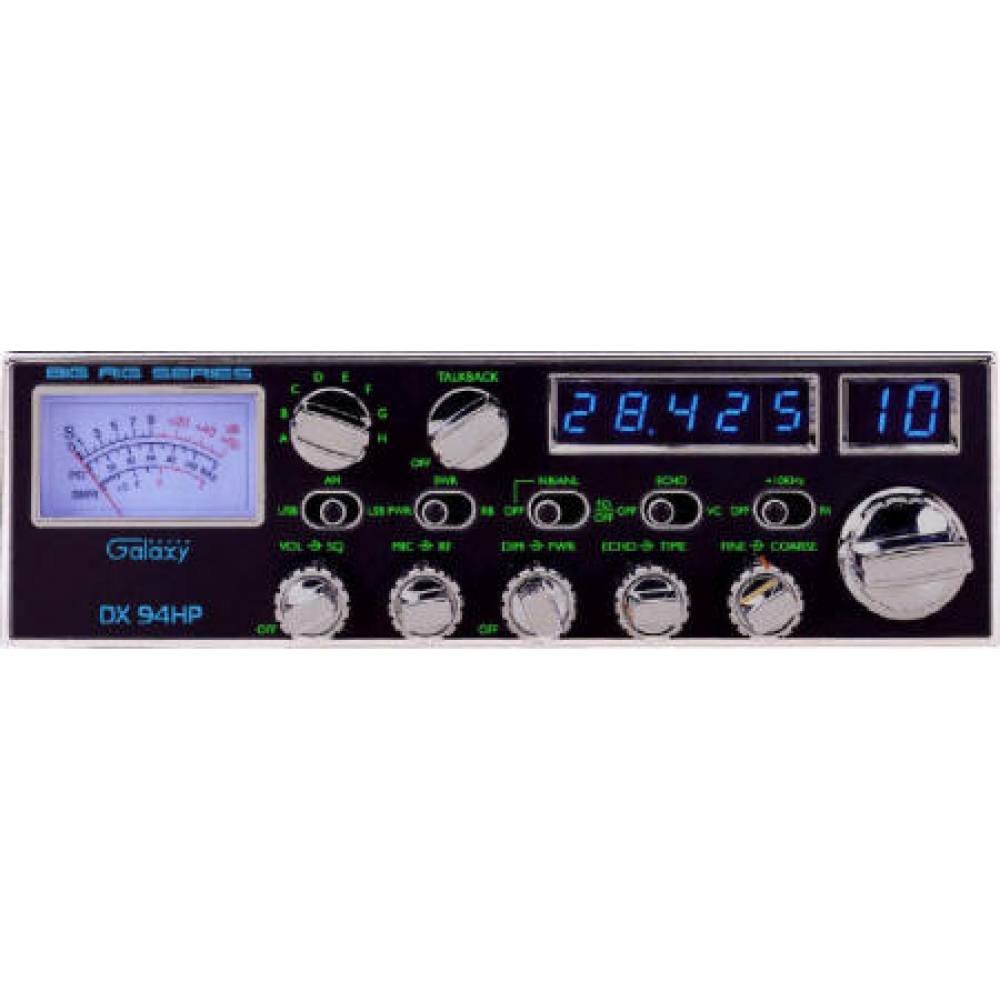

DX 94 HP High Power AM / SSB 10 Meter Radio

More information

Download Manual

Features

-100 watt maximum power output from four IRF520 MOSFETs
-Maximum current is 25 amps
-Heavy-duty DC power cord

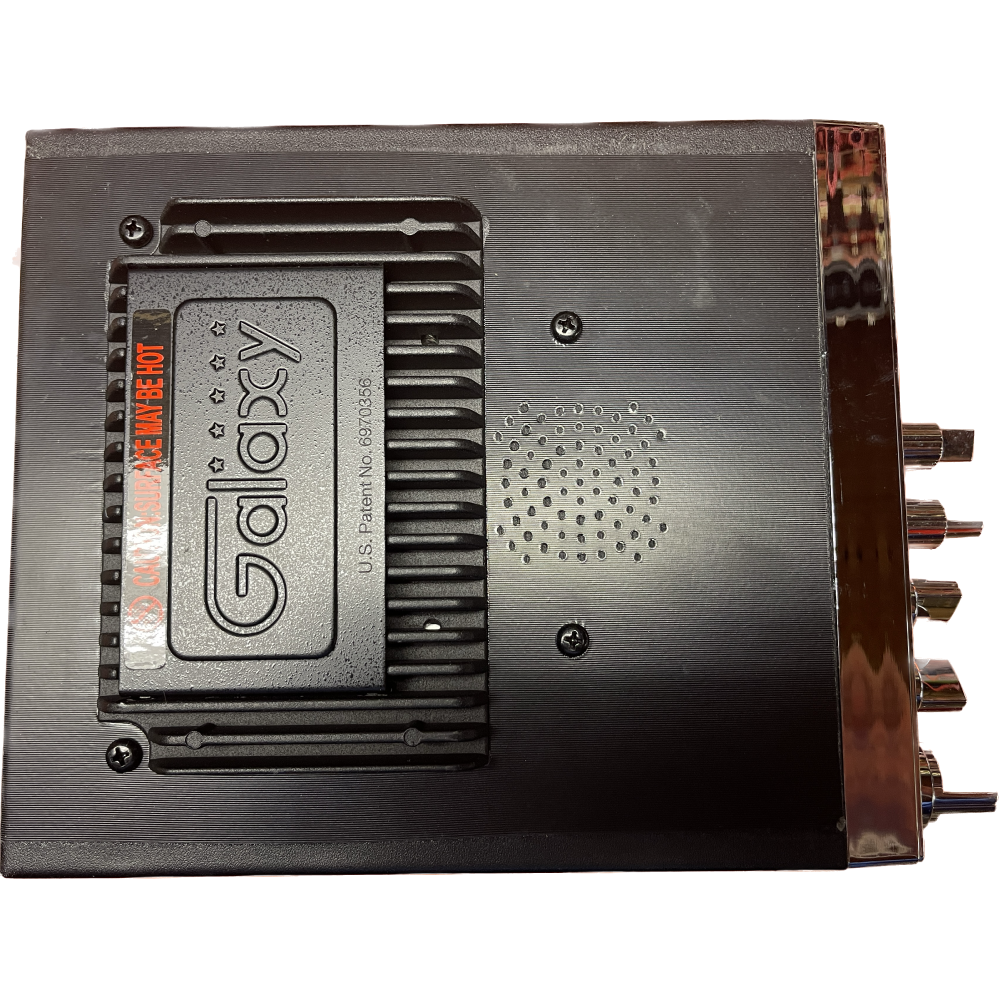

-Low profile bottom heatsink
-Blue LEDs for frequency and channel readouts
-Dual blue LEDs light our signature large meter
-StarLite faceplate (all printing is backlit)
-Meter scales indicating power output,
-SWR and incoming signal strength
-Side mic jack
-AM/USB/LSB modes, but no FM
-Variable power output control
-Variable receive gain control
-Variable dimmer control for LEDs, meter lamp and faceplate lettering
-Switch to turn off the frequency digits
-Variable Talkback circuit with on/off switch
-Echo and Voice Changer like the old DX99V, but no Robot
-Echo/Voice Changer controls on the front panel, not inside the radio
-Roger Beep with on/off switch
-Automatic SWR circuit
-Standard clarifier circuit – no on/off switch
-TWO YEAR GALAXY WARRANTY

Specifications

click to review tech spec's
Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Galaxy radio might though and I cannot control it.

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$489.50

Upgrade Performance

Tune-up and frequency conversion
(Tune-up, Alignment and expanded frequency coverage)
(+$49.00)
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26.00
Install an CP-1 Top Gun Audio Compressor.
(on - all the time) Is most noticed on SSB, This amplifies your lower level audio on transmit. NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25.00

Upgrade Microphone

Turner RK-56 Noise Canceling microphone
(wired for this radio with a 4 pin plug)
$46.00
636L Noise Canceling Microphone
(wired for this radio with a 4 pin plug)
$29.00

Upgrade speaker

Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00

Add a power Supply

PSV-300
to run this as a Base Station in the house.
$109.50

Сhange The Appearance

Install Star-Bryte Knobs

with dimmer control. 8 Knob set parts and labor.

Other upgrades

Install a Record/Playback Module
18 seconds. Wired inside the radio with two pushbuttons on the side to record 18 seconds and to play it back.
$77.00

Install a switch in the back to turn off the 100w amp.

(wired behind the radio with a switch for on/off) AM/FM: .25 ~ 1.25w Peak AM: 2 ~ 15w

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Install a Noise toy as a background theme music

(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)

Order total:

Optional Accessories

Recommended For You

Related products

Popup code

Instagram Facebook Youtube Ebay

The world’s leading CB radio store. Hands-on experience. Get talkin’, we’ll help!

Copyright © 2023 All rights reserved

Scroll to Top

Specifications

GENERAL
Frequency Range 28.315 ~ 28.755 MHz
Emission AM/USB/LSB
Frequency Control Phase-Lock-Loop (PLL) Synthesizer
Frequency Stability 0.001%
Temperature Range -30°C to +50°C
Antenna Impedance 50 Ohms
Antenna Connectors Standard SO-239 type
Input Voltage 13.8V DC
Size 7 3/4" (W) x 2 7/8" (H) x 10 1/4" (D)
Weight 6 lb.
Shipping Weight 12 lb
TRANSMITTER
RF Power OutputOEM Specs: AM: 5W~40W Peak 100W SSB: 100W PEP Actual out of the Box average: AM: 8W~30W Peak 90W SSB: 80W PEP After a tune-up it is: AM: 3W~30W Peak 130W SSB: 100W PEP
Transmit CurrentAM: 14 Amps SSB: 25 Amps
Spurious Emission -50 dB
Unwanted Sideband -50 dB
Audio Distortion 10%
Frequency Response 300 to 2500Hz
Microphone Dynamic
Clarifier RangeCoarse: ± 6.0KHz, Fine: ± 1.0KHz
RECEIVER
Sensitivity for 10 dB (S+N)/N AM: < 0.5 μV USB/LSB: < 0.25 μV
Squelch Sensitivity< 0.5 uV
Selectivity -55 dB
Image Rejection-50 dB
AGC Figure of Merit 100 mV for 10dB Change in Audio Output
Audio Power Output2.5W @ 10% Distortion
Audio Response300 to 2500 Hz
