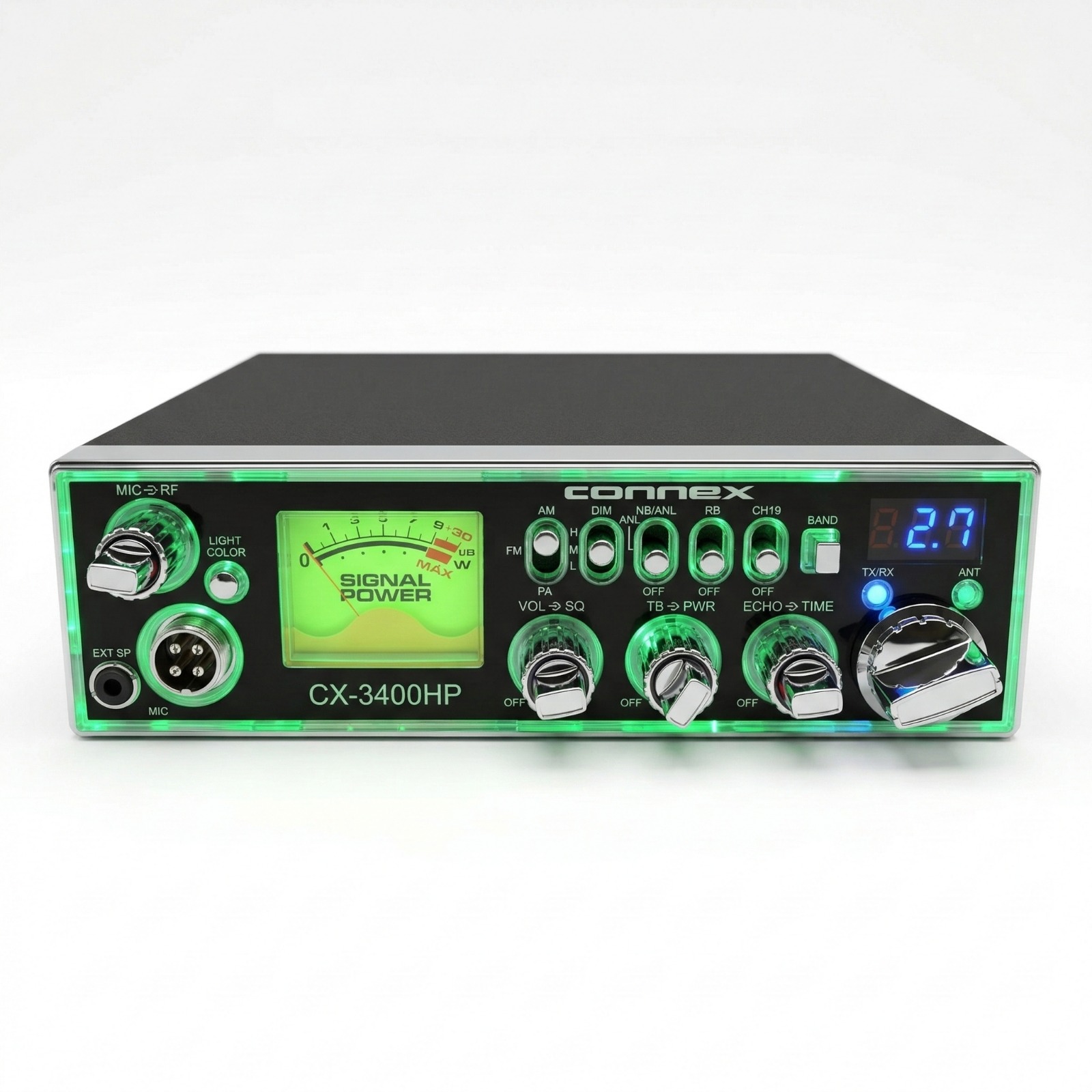

Connex CX-3400 HP AM/FM Transceiver
Connex CX-3400 HP AM/FM Transceiver - Image 2
Connex CX-3400 HP AM/FM Transceiver - Image 3
Connex CX-3400 HP AM/FM Transceiver - Image 4
Connex CX-3400 HP AM/FM Transceiver - Image 5
Connex CX-3400 HP AM/FM Transceiver - Image 6
Connex CX-3400 HP AM/FM Transceiver - Image 7
Connex CX-3400 HP AM/FM Transceiver - Image 8

Videos

.

, , ,

Connex CX-3400 HP AM/FM Transceiver

More information

The Connex CX-3400HP is a popular 10-meter amateur mobile radio known for its high power output and classic styling. It features a microprocessor-controlled LED faceplate with six selectable colors (white, cyan, green, purple, orange, and blue) and a large, easy-to-read signal meter.

This radio is built for performance with 50+ watts PEP power output and includes the signature Connex board echo and talkback features. It also provides a front microphone jack and an external speaker jack on the front panel, making it convenient for in-dash or cubby mounting.

Connex radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Connex radio might though and I cannot control it.

Features

  • Power Output: 50+ Watts PEP (Peak Envelope Power).

  • Frequency Range: 10 Meter (28.000 – 29.699 MHz).

  • Modes: AM / FM / PA.

  • Audio Controls: Variable mic gain, RF gain, and dual-stage echo control.

  • Safety Features: Antenna warning light to protect against high SWR.

  • Included Accessories: 4-pin dynamic microphone, DC power cord, and mounting bracket hardware.

  • 6-color backlit LED faceplate with HML dimmer control. (white, light blue, green, yellow/orange, purple, dark blue)
  • Large meter style
  • AM, FM, Mobile
  • Echo/talkback
  • Hi/Low Power Switch
  • 3 pos dimmer
  • Push Button Band Selector
  • Ant warning indicator
  • Roger Beep
  • PA
  • Dual Finals

Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$319.50

Out of stock

Optional Accessories

Recommended For You

Related products

Popup code

Scroll to Top

Specifications

GENERAL
Frequency Range 28.065 to 28.505 MHz
Frequency Control Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and coiled cord.
Input power13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).
Transmit:AM/FM Hi Power 10A.
Receiver:Squelched, 0.3A. Maximum Audio output, _ 0.7A.
Size 2-3/8” (H) x 7-7/8” (W) x 9-1/4” (D).
Weight 5.0 1bs.
Antenna Connector UHF, SO239
MeterIlluminated; indicates relative output power, received signal strength.
Transmitter
Power output AM/FM, - Selectable 10W/2W
AM Peak Power 40 Watts.
Modulation High-and low-level Class B, AM Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators Meter- shows relative RF output power. Transmit LED glows red when transmitter is in operation.
Receiver
SensitivityAM: 0.5 mV for 10 dB (S+N)/N at greater than ½ -watt of audio output. FM: 1.0 mV for 20 dB (S+N)/N at greater than ½-watt of audio output.
SelectivityAM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel Rejection60 dB AM
RF Gain Control45 dB adjustable for optimum signal reception.
Automatic Gain Control (AGC)Less than 10 dB change in audio output for inputs from 10 to 100,000mV.
SquelchAdjustable; threshold less than 0.5 mV.
ANLSwitch-able
Noise Blanker RF type
Audio Output Power4 watts into 8 ohms.
Frequency Response300 to 2800 Hz.
Built-in Speaker8 ohms, round. or External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
