CN-901-HP Wattmeter

More information

Daiwa CN-901 Professional Series Bench Meters offer accurate readings, reliable performance, and great value.

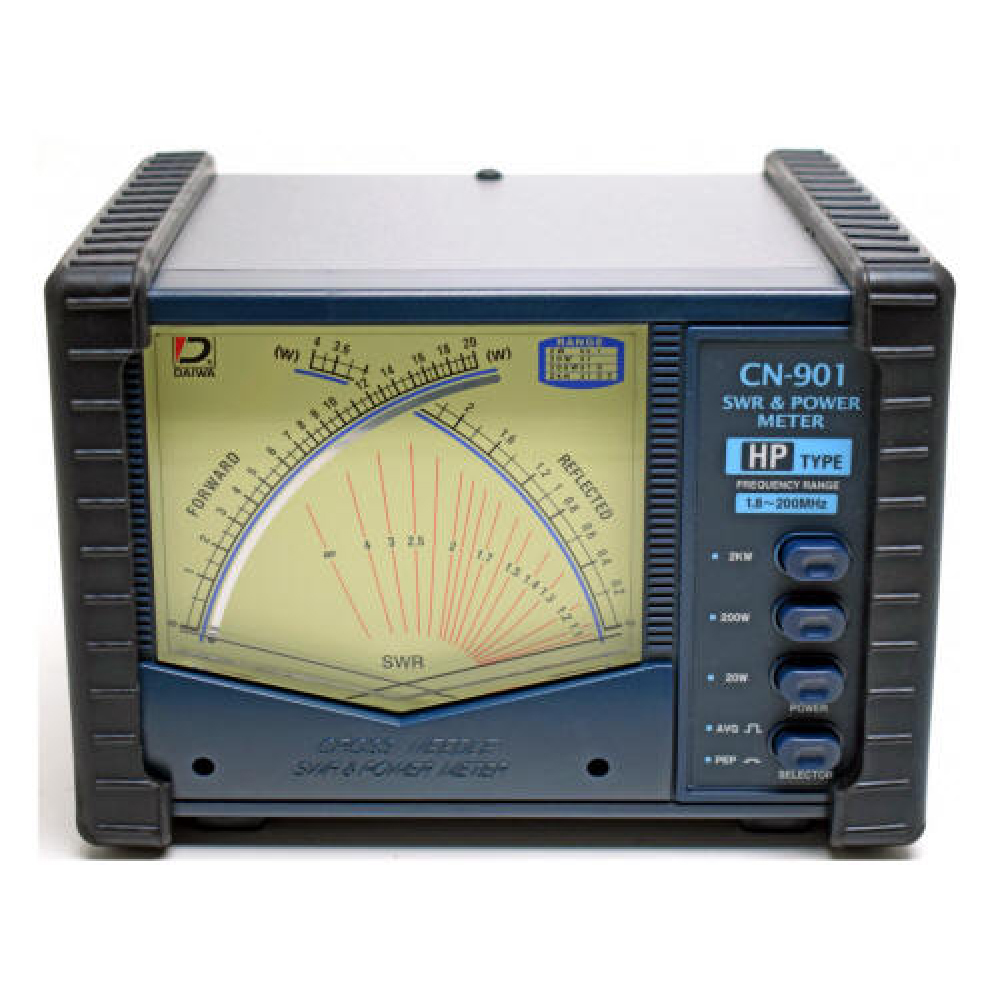

Daiwa’s large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task. Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The existing SWR is indicated at the crossing point of the two needles… so you can read all three of these important measurements at the same time!

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$199.50

Recommended For You

Popup code

Scroll to Top

Specifications

frequency range1.8-200 MHz
power range (forward)20/200/2000 watts
Max power rating2000 watts
accuracy+-10% full scale
impedance50 ohms

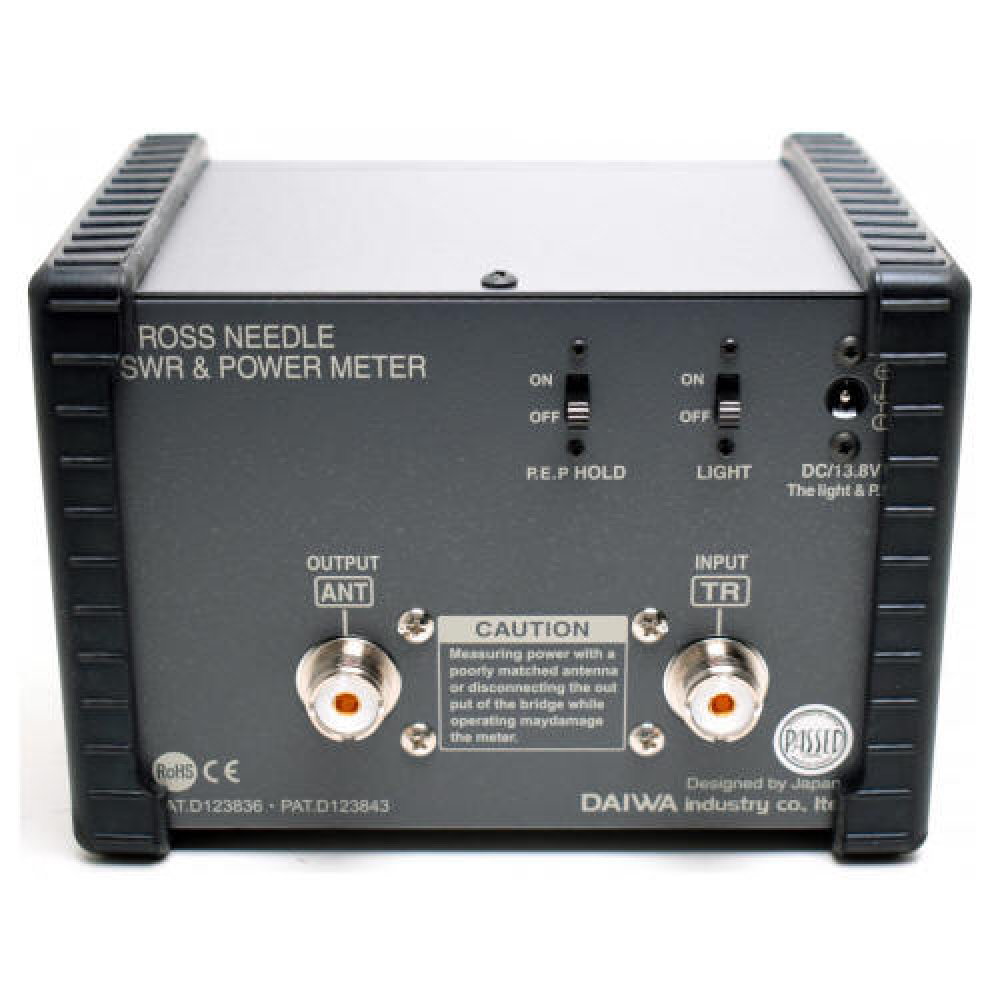

connectorsinput: SO-239 output: SO-239
size4.3"H x 6.3"W x 4.8"D
Shipping weight 5 pounds
