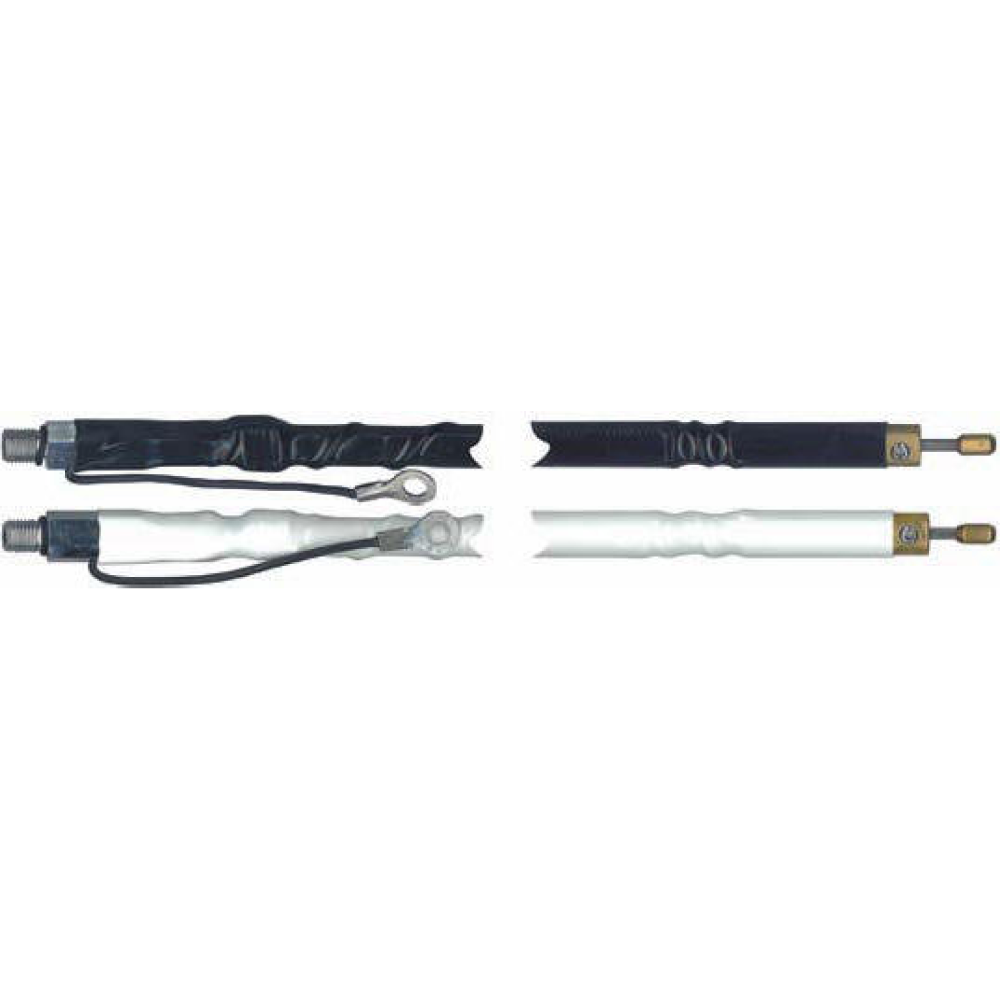

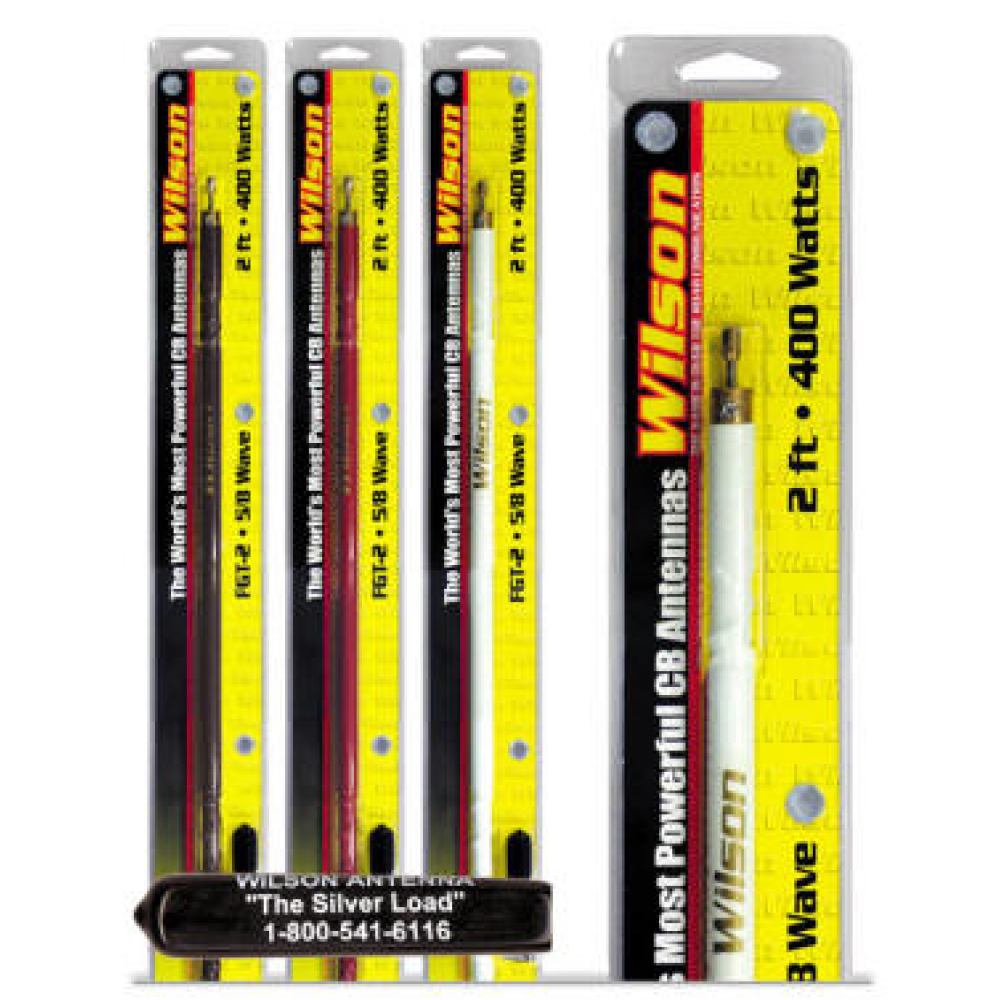

Silver Load Wire-wound Fiberglass CB Antennas
Why the Wilson Silver Load FGT & Flex Performs Better
Testing the popular fiberglass antennas showed some brands put losses, like a dummy load, to make their antenna look good on the SWR meter, but sacrificed most of the power gain.
Wilson designed the Silver Load, with its exclusive impedance matching transformer, to give good SWR without sacrificing power gain. Additionally, using spaced windings on the top load to eliminate the dielectric losses, and silver plated wire for maximum radiation. With these features, Wilson has the best performing fiberglass antenna available.
Tested by Dr. Dwight Heim
Dr. Dwight Heim, ( PH.D. Electrical Engineering, Professor Emeritus, University of Michigan ) an independent consultant, conducted a test and comparison on some of the fiberglass antennas used by truckers. The graphs below indicate the results of this comparison test.
Features
-Adjustable tip for fine tuning SWR & resonant frequency
-Exclusive impedance matching transformer lead
-3/8″ fiberglass rod for heavy duty performance, 1/4″ tapered fiberglass rod on Flex
-Fully linear top loaded for maximum transfer of power out of antenna ( better than helical winding )
-Spaced windings to reduce dielectric heat loss
-18 gauge silver plated wire to reduce resistive losses on FGT, 22 gauge on Flex
-PVC protective covering around antenna on FGT, special rubberized covering on Flex.
-Static reducing weather cap
-3/8″ X 24″ standard threaded mounting
-5 Year Warranty on FGT
PERFORMANCE GUARANTEE: The Wilson Silver Load FGT fiberglass antenna will outperform the fiberglass antenna it replaces or your money back. This guarantee is good for 15 days from the date of purchase at the original purchase point only, and with dated sales receipt.
ANTENNA POWER GAIN : the amount of improvement in power amplification over another antenna. The higher gain antenna will transmit & receive farther, but the actual distance will vary depending on the gain, ground terrain and other environmental factors. Individual test results may vary due to the vehicle’s ground plane and matching configuration.
EXAMPLE : The Wilson X has 20% more power gain at 27.185 MHz than Brand X antenna. This means that if the Wilson transmits 100 watts of power, then Brand X will need 120 watts of power to have the same signal strength at the receive end.
