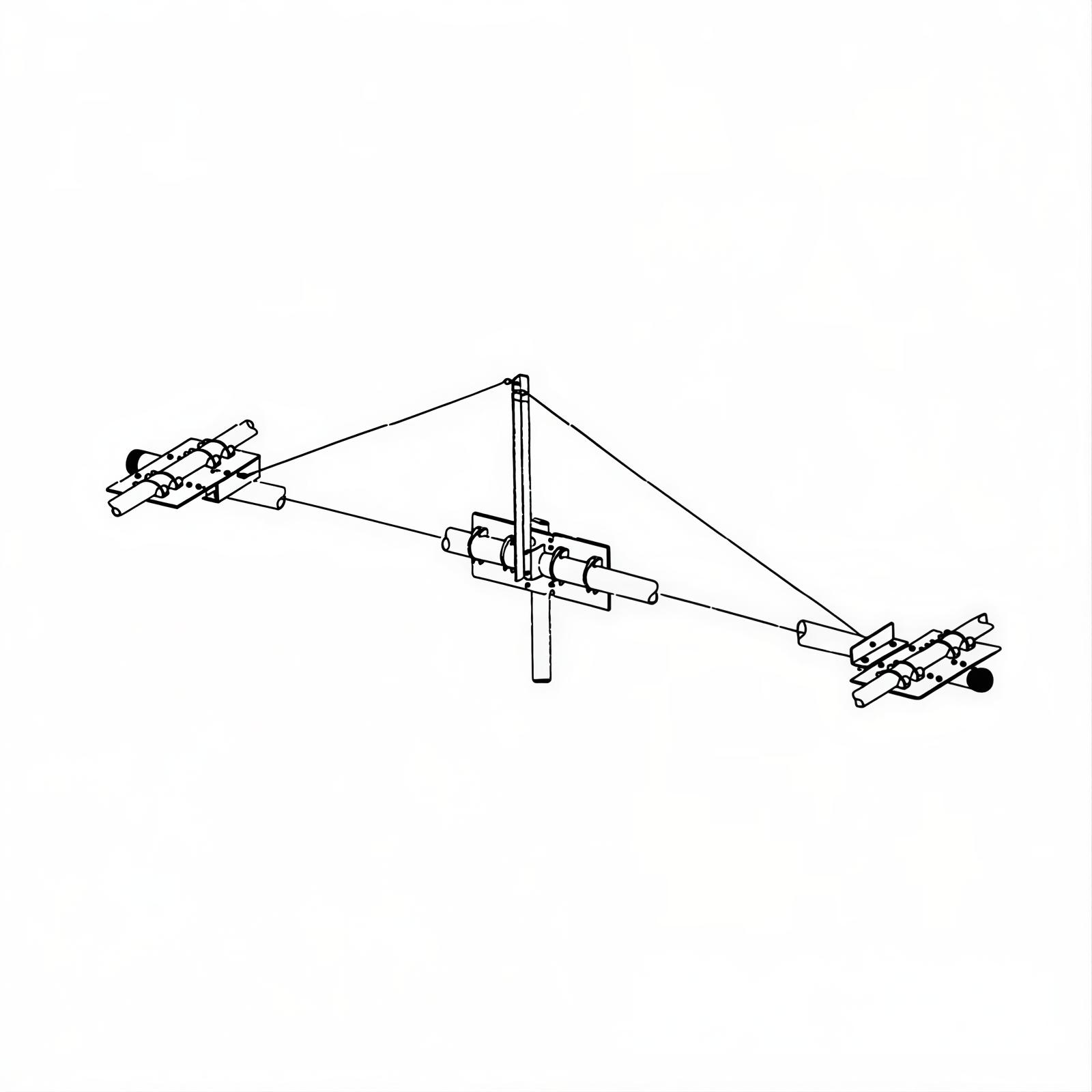

Maco VQ3/VQ4 Stacking Kit

More information

The Maco VQSK Stacking Kit is the specific hardware package designed to stack two Maco VQ3 V-Quad or VQ4 V-Quad. Stacking two antennas allows you to focus your signal more effectively, providing a significant boost in gain and overall performance for long-distance communication.

The VQ3SK kit provides everything needed to horizontally or vertically stack two beam antennas. By adding a second VQ3/VQ4 to your array, you achieve an additional 3 dB of gain, effectively doubling your effective radiated power and increasing your front-to-back separation for a much cleaner signal.

  • Compatibility: Maco VQ3 or VQ4Beam Antennas

  • Added Gain: 3 dB (Total gain approx. 17.5 dB when used with two VQ3s or VQ4s)

  • Front-to-Back Separation: Up to 40 dB in a stacked configuration

  • Stacking Boom Length: 10 feet (305 cm)

  • Construction: High-strength aircraft-grade 6063-T5 aluminum tubing

  • Weight: Approximately 8 lbs (3.6 kg)

  • Power Handling: Rated to match the capability of the antennas being stacked (2kW standard)

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$394.00
