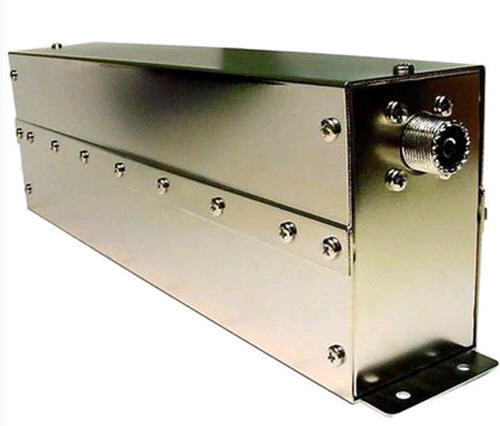

DF3000

3KW

Low Pass Tvi Filter



  • Rugged design for years of use
  • Elliptical design maximizes 2nd harmonic rejection while providing lower insertion loss>br>
  • Low insertion loss: < 1 dB typical
  • 2nd harmonic rejection at 60MHz is > 50 dB typical
  • Factory tested at 4,000 Watt PEP Power.
  • 1,000 Watts MAX Carrier power.

  •




    SOLD OUT
    ...DF3000 Low Pass Filter...  $39.50


    SPECIFICATIONS

    Power Handling : 3,000 Watts PEP (voice peak)
                              :1,000 Watts RMS

    Max. Attenuation : More than 60dB

    Insertion Loss : Less Than 1dB Typical

    Input/Output : 50 Ohm (non-polar)

    Return Loss:  -15dB (TYP < 1.4:1 VSWR)

    Return Loss:Less Than -15dB (Typical < 1.4:1 VSWR)

    Dimensions: 12 x 2 x 3.5 inches
