CN-801-HP and

CN-801-HP3



Wattmeter


Download Manual

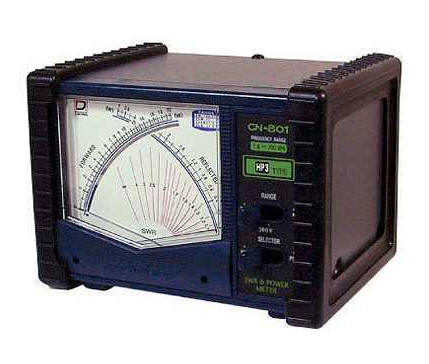

The Daiwa CN-801HP and the 801HP3 are cross-needle SWR/Wattmeters covering .8-200 MHz. The cross-needle movement allows the simultaneous monitoring of forward power, reflected power, and SWR, all without the need of an extra calibration procedure.

The meter is switch-able for 20 (30), 200(300), or 2000 (3000) watt full scale readings, and has a built-in lamp which can be powered from an external 13.8 VDC source. Supplied with a DC power cord, which is required for powering the built-in lamp and PEP measurements.











... 2KW Power Meter ... $179.50
... 3KW Power Meter ... $199.50





frequency range
.8-200 MHz
power range (forward) 801HP
20/200/2000 watts
power range (forward) 801HP3
30/300/3000 watts
Max power rating  801HP
2000 watts
Max power rating  801HP3
3000 watts
accuracy
+-10% full scale
SWR detection sensitivity
5 watts, minimum
impedance
50 ohms

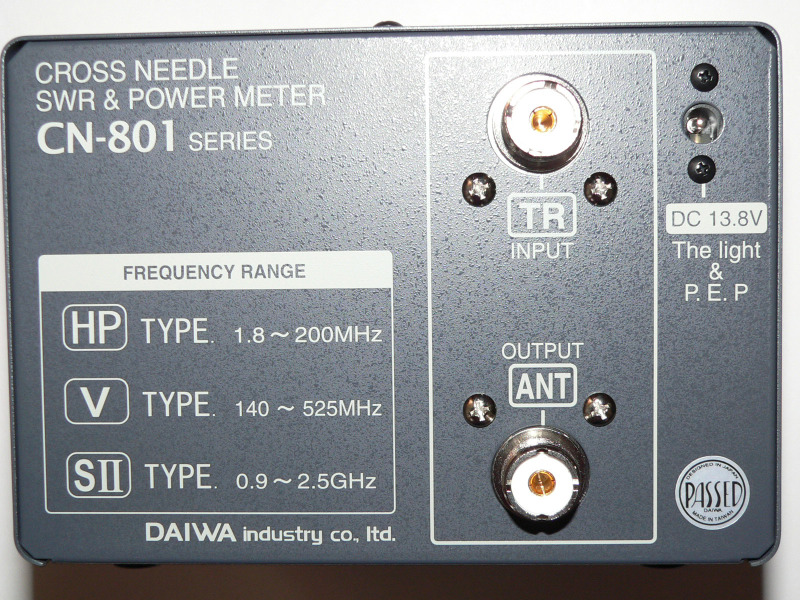

connectors
input: SO-239
output: SO-239
size
4.3"H x 6.3"W x 4.8"D
Shipping weight
5 pounds
