10 Meter Mobile Radios


Click image for larger view

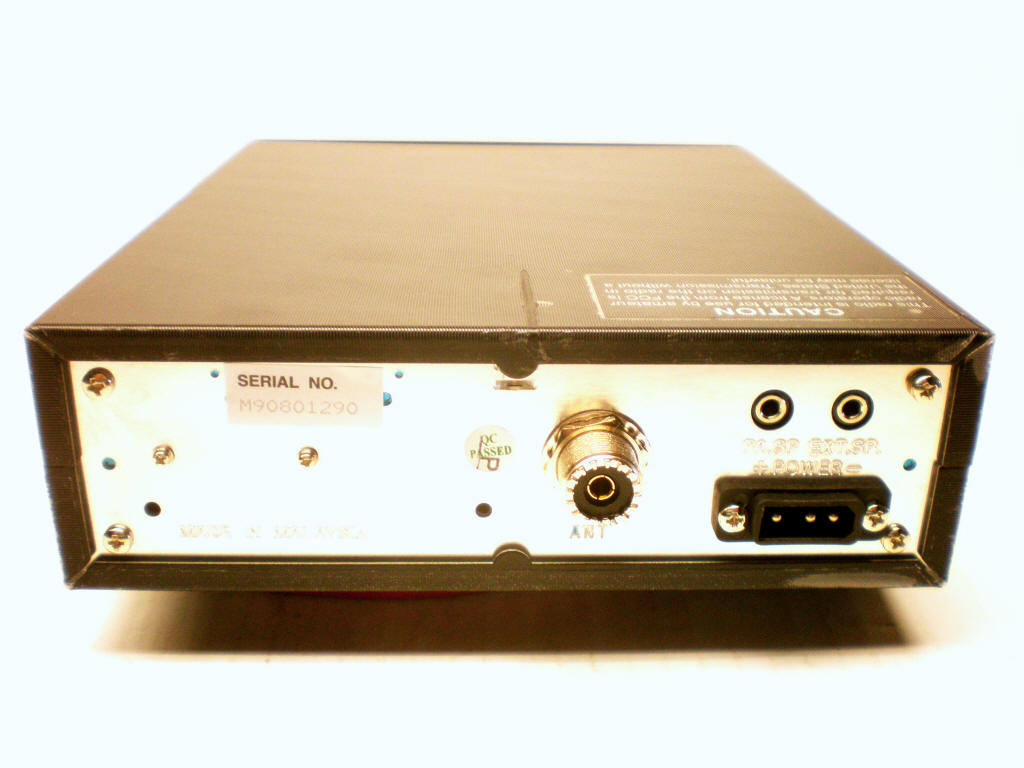

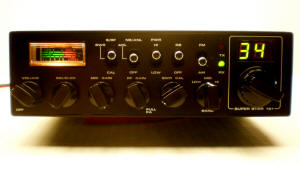

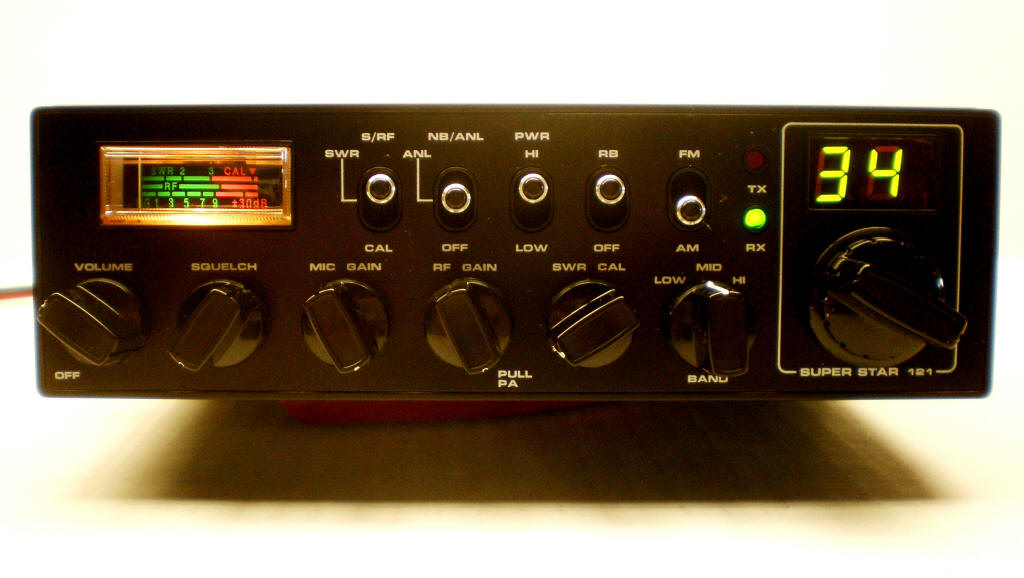

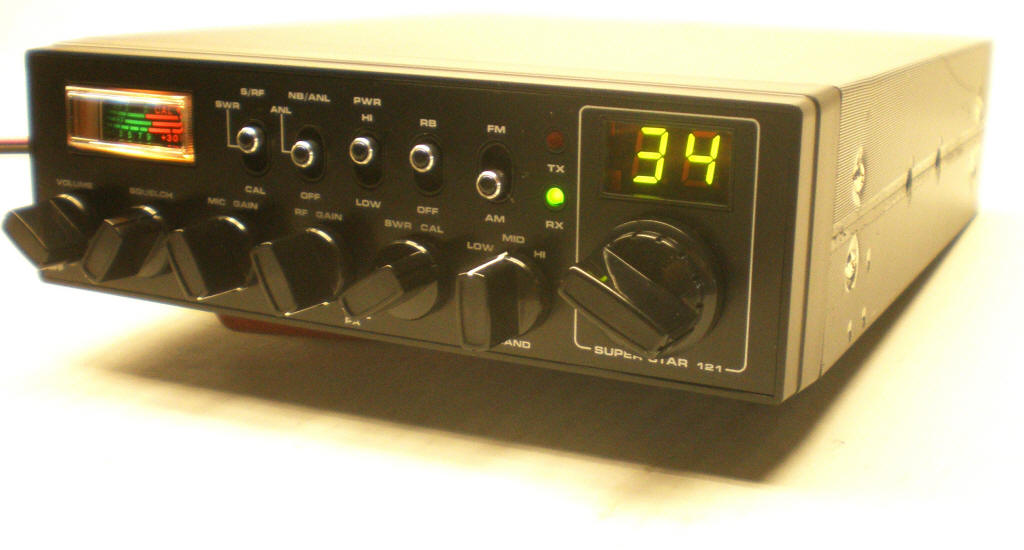

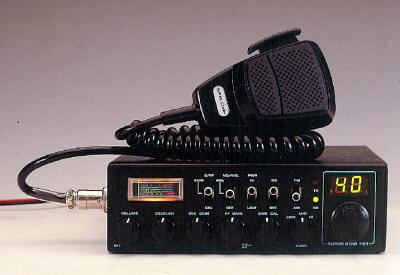

SS-121
AM/FM Mobile Radio



This is our "Hunters Special" radio. Which means this is the least expensive full size radio with 120 channel capability. Hunting and recreation people often have a need for the lower set of 40 channels.

The best handheld radio to go with this is the Cobra HH-38 which can also be modified to do 120 channels.





  • Analog S/RF meter indicates Receive Signal Strength, RF Power Output and SWR Level
  • Noise Blanker/Automatic Noise limiter
  • Two stage power output
  • Roger beep circuit with On/Off switch
  • Mic Gain/RF Gain control
  • Public Address capability
  • 8 watts AM/FM Power output





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

... Discontinued ... $135.00




Optional Accessories
   Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $29
   RFX-150 Final. (perform a tune-up to the radio.  Increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 125+ watts peak power. $185
  Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and lower noise)
$28
   Install an MD-1 Top Gun Modulator.
(wired behind the radio with optional switch for on/off)
$38
   Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back over the air) $69
   Install a Record/Playback Module 60 seconds (wired inside the radio with a switch on the side to record 60 seconds and to play it back over the air) $79
   Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65
   Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
  Install Nitro Knobs with dimmer control. Includes a 7 Knob set , parts and labor. $145



 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 C to + 50 C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-1/4" x 9-1/4" x 2-3/8"

 Weight

4.5 Lbs.

Shipping weight

9 Lbs.

 Transmitter



 RF Power Output

AM-FM: 4W/8W RMS
AM: 25W PEAK

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 Sensitivity for 10 dB S+N/N AM:  <1 uV
Sensitivity for 20 dB S+N/N FM: <1 uV
 Squelch Sensitivity

<0.5 V

 Image Rejection

> 50 dB

 AGC Figure of Merit  100 mV for 10dB
 Change in Audio Output
 Audio Response

300 to 280000 Hz

 Audio Output Power

2.5W @ 10% THD
