 10m
Mobile Radio |
|
Click image for larger view |

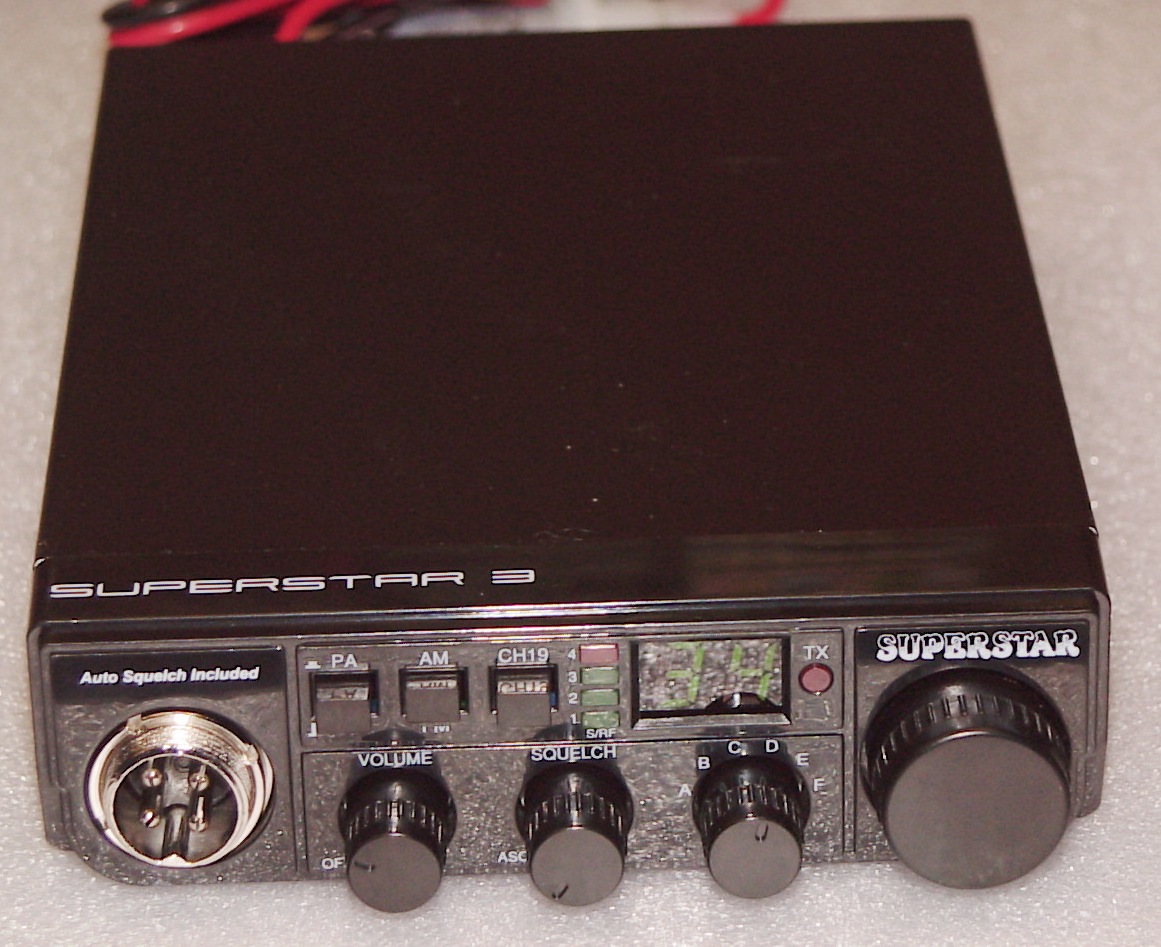

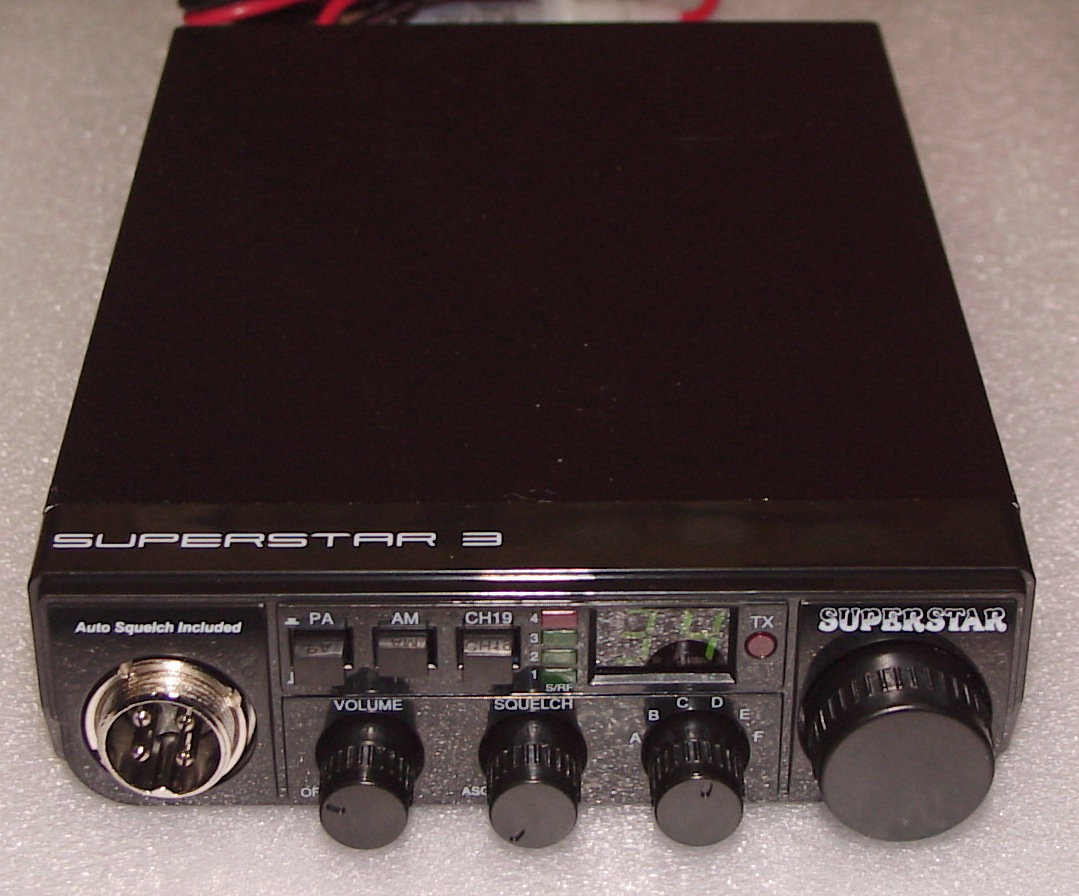

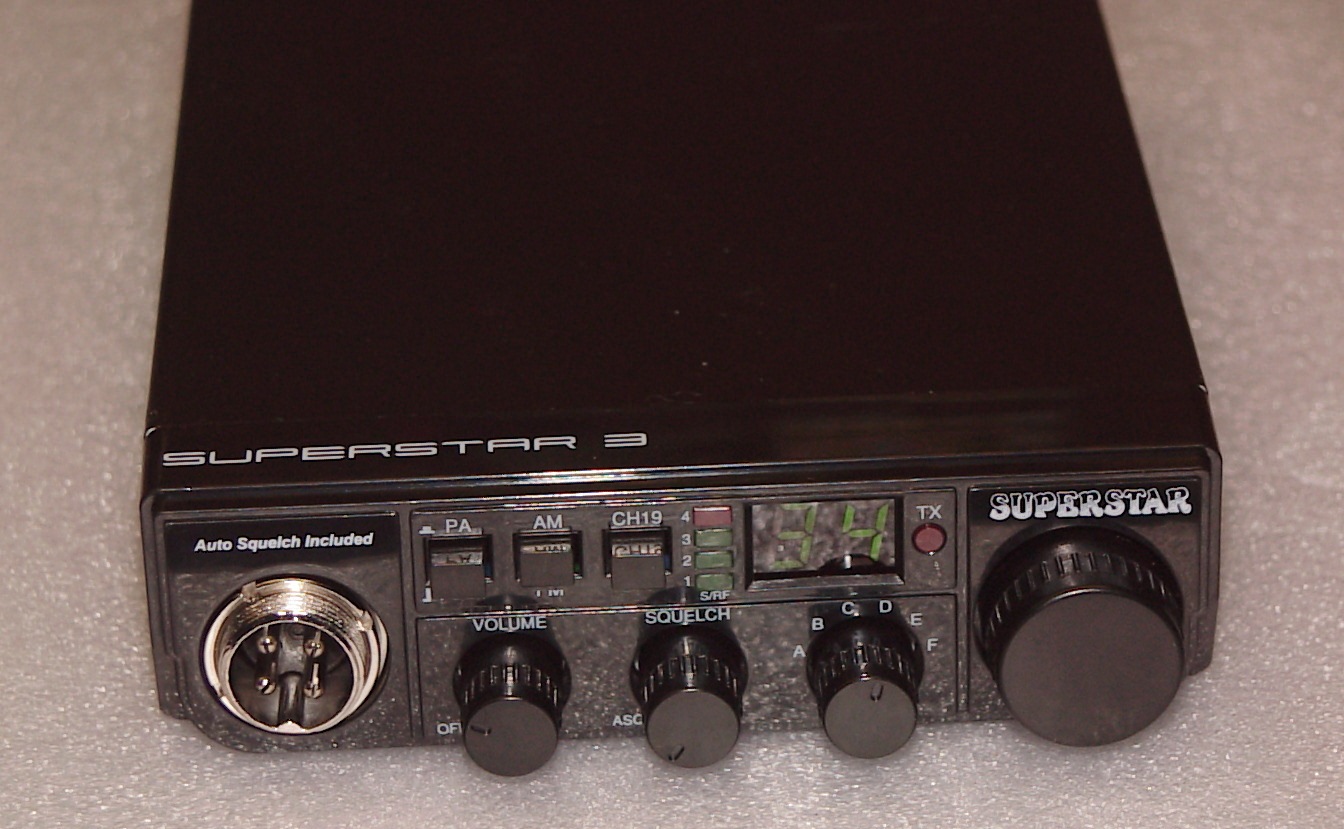

Superstar SS-3
AM-FM 10 Meter Radio
|
|
Download Manual |
|
Random information since it is not available anywhere else on the
internet as of yet.
VR-1 S-Meter
VR-2 Squelch
VR-3 AMC (limited range)
VR-4 unknown
VR-5 Carrier power
VR-6 FM Deviation
VR-7 RF Meter
ASQ Auto Squelch
|
|
|
|
|
***
This Item has been Discontinued
by the manufacturer and
remains
here for reference and support
information only. *** |
|
|
Specifications |
| Channels: |
240 AM/FM |
| Frequency Range: |
26.965 to 27.405 MHz |
| Frequency Control: |
Phase Locked Loop (PLL) synthesizer |
| Frequency
Tolerance: |
±0.005% |
| Operating Temperature: |
-30ºC to +50ºC |
| Microphone: |
Plug in type:
dynamic 4P |
| Input Voltage:
|
13.8 V DC nom. (+ or -
ground) |
| Current Drain: |
TX: full mod., 1.7A |
|
|
RX: with max. audio
output, 1.7A |
| Size: |
4-1/2”
W x 6-3/4” D x 1-3/8” H |
| Weight: |
1 lb. 9 oz. |
| Shipping Weight: |
3 lb. 6 oz. |
| Antenna Connector: |
UHF, SO-239 |
|
Transmitter |
|
Power Output:
(final = 2SC-2078) |
4 Watts |
|
Modulation: |
Class B amplitude
modulation |
| Freq. Response: |
300-2500 Hz |
|
Output Impedance: |
50 ohms, unbalanced |
|
|
|
