10 Meter Mobile Radios


Click image for larger view

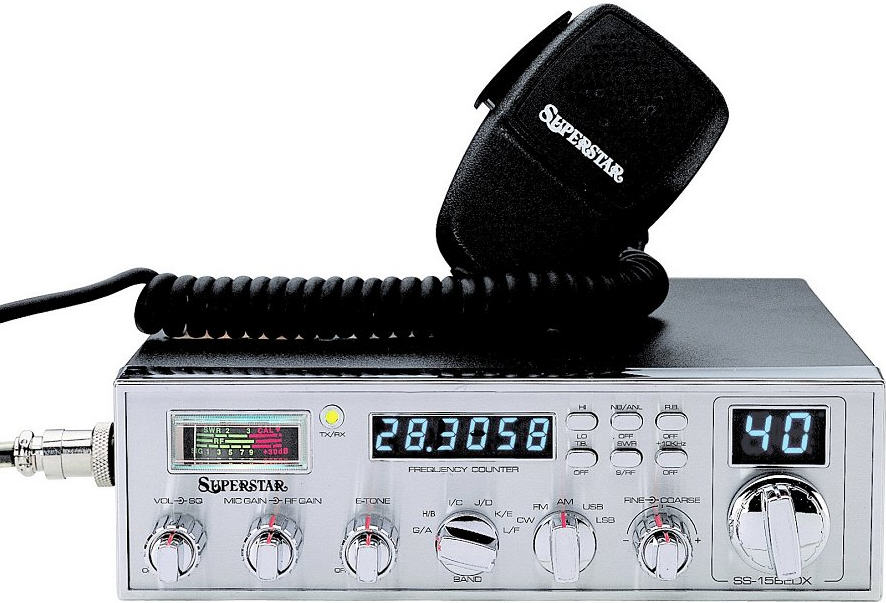

SS-158EDX
AM/FM/SSB Mobile Radio

Download Manual

The SS-158EDX is a reliable mid priced 10 meter AM-FM-SSB-CW mobile radio. With 25 watts peak AM, 10 watts RMS FM-CW, 25 watts PEP SSB, it provides high performance along with features such as a 6-digit frequency counter, Mic/RF gain, and dual finals.

The SS-158EDX has dual echo control and talk back switch along with a blue frequency counter, channel display and meter. Designed for easy mobile operation, an affordable price tag, and backed by Rangers 2-year factory warranty, the SS-158EDX will answer your needs for SSB mobile operation.




Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...Discontinued by Ranger... $239.50





Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $29
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$28

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$26

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$43

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Colors

Install Nitro Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 7 Knob set parts and labor.



$144



 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 C to + 50 C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-3/8"

 Weight

5 Lbs.

Shipping weight

10 Lbs.

 Transmitter



 RF Power Output

AM-FM: 10W RMS
AM: 25W PEAK
SSB: 25W PEP

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 V

 Squelch Sensitivity

<0.5 V

 Image Rejection

- 65 dB

 AGC Figure of Merit  100 mV for 10dB
 Change in Audio Output
 Hum and Noise

- 40 dB

 Audio Response

300 to 2500 Hz

 Audio Output Power

2.5W @ 10% THD
