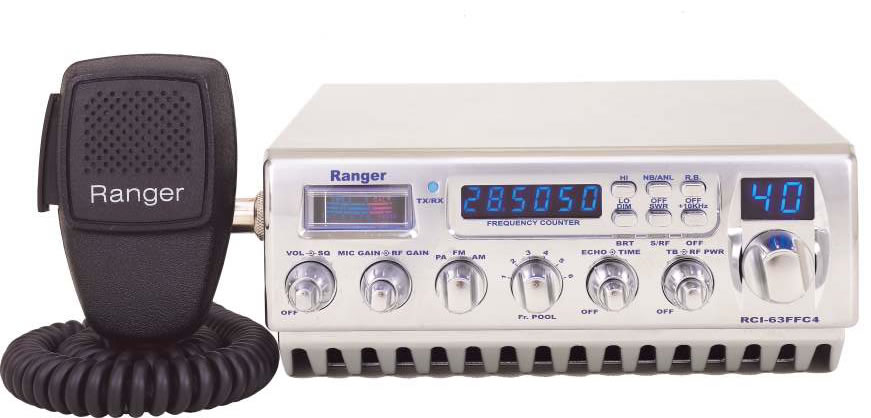

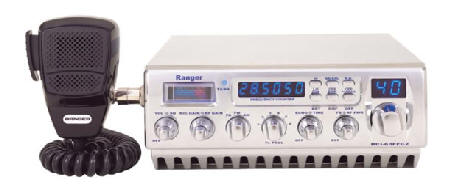

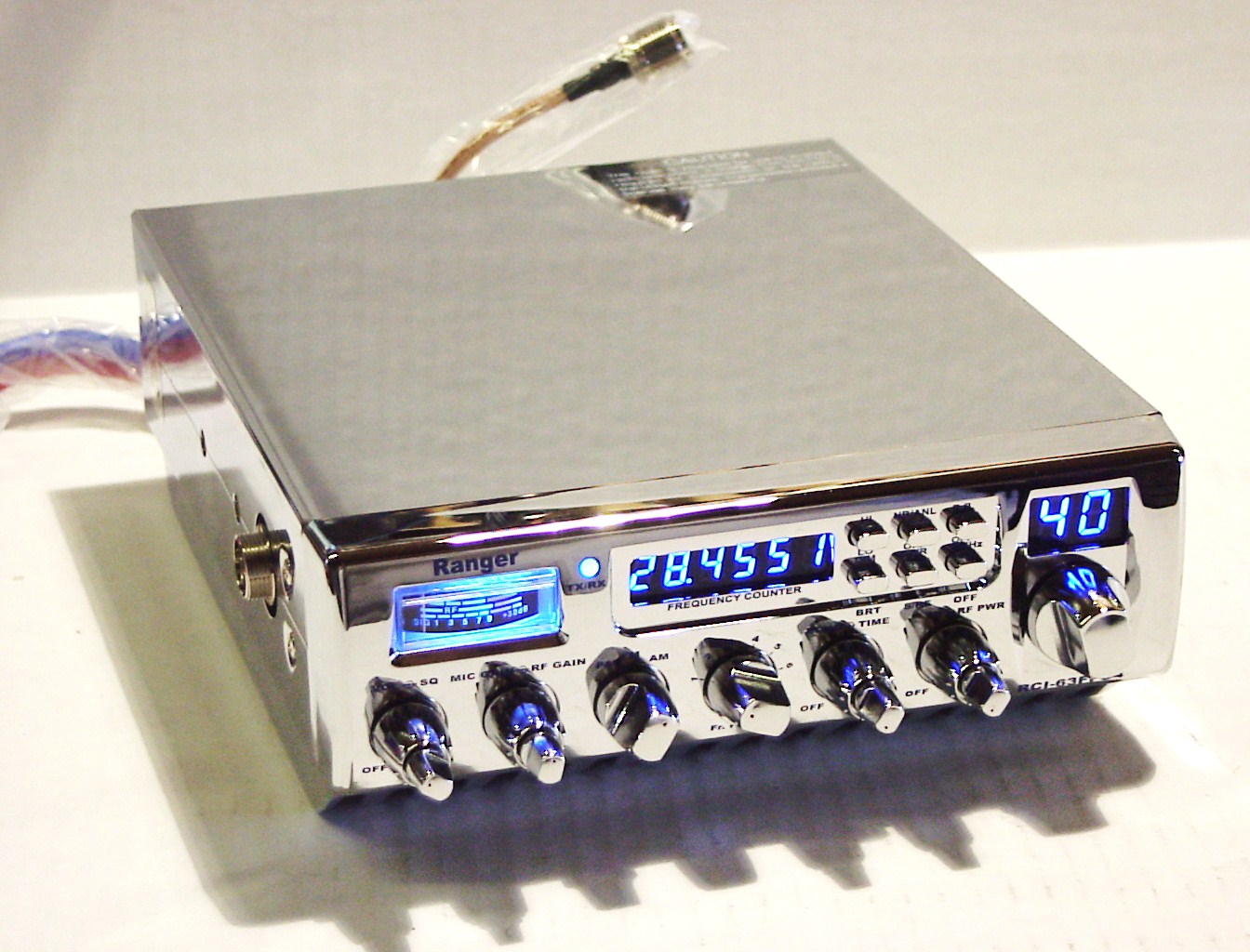

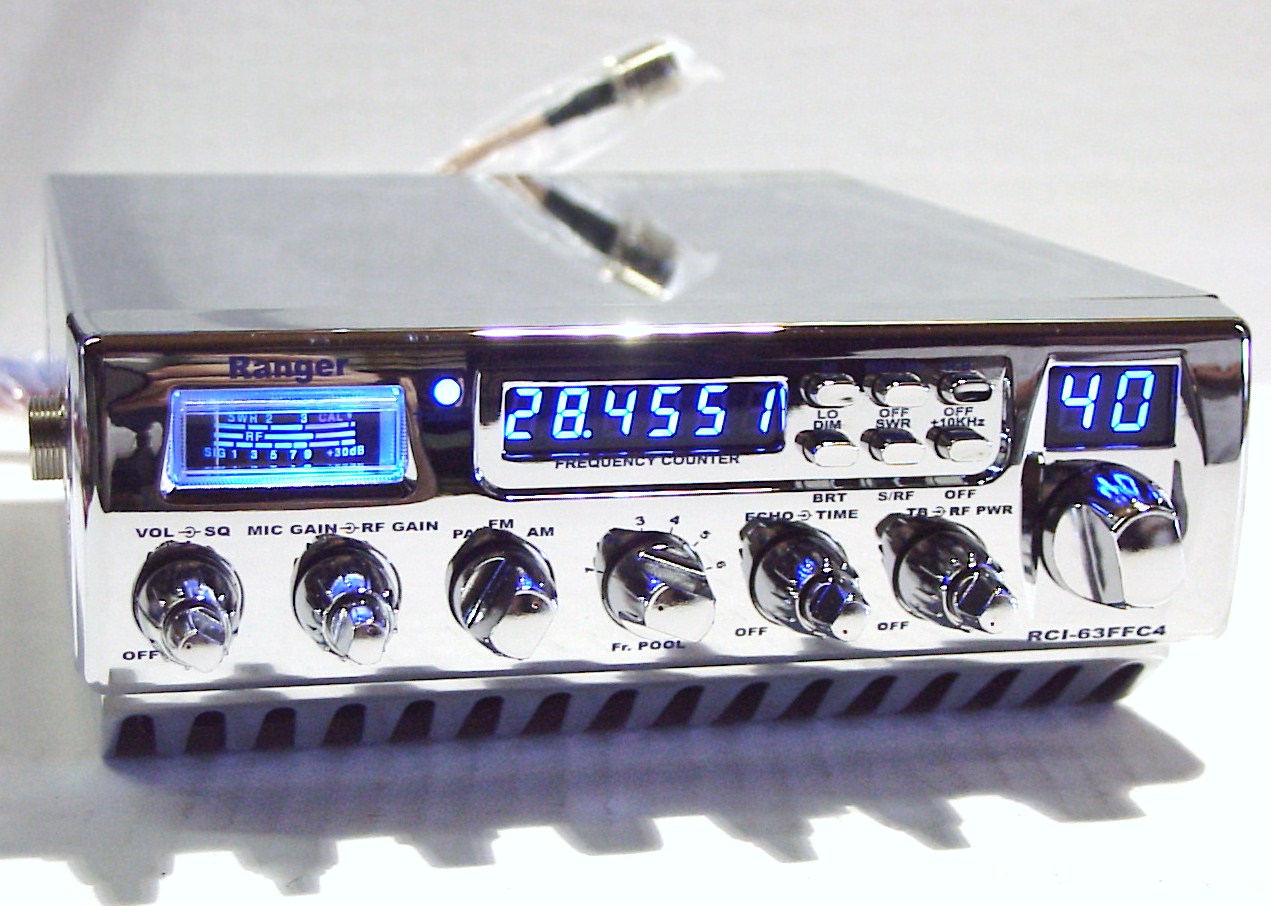

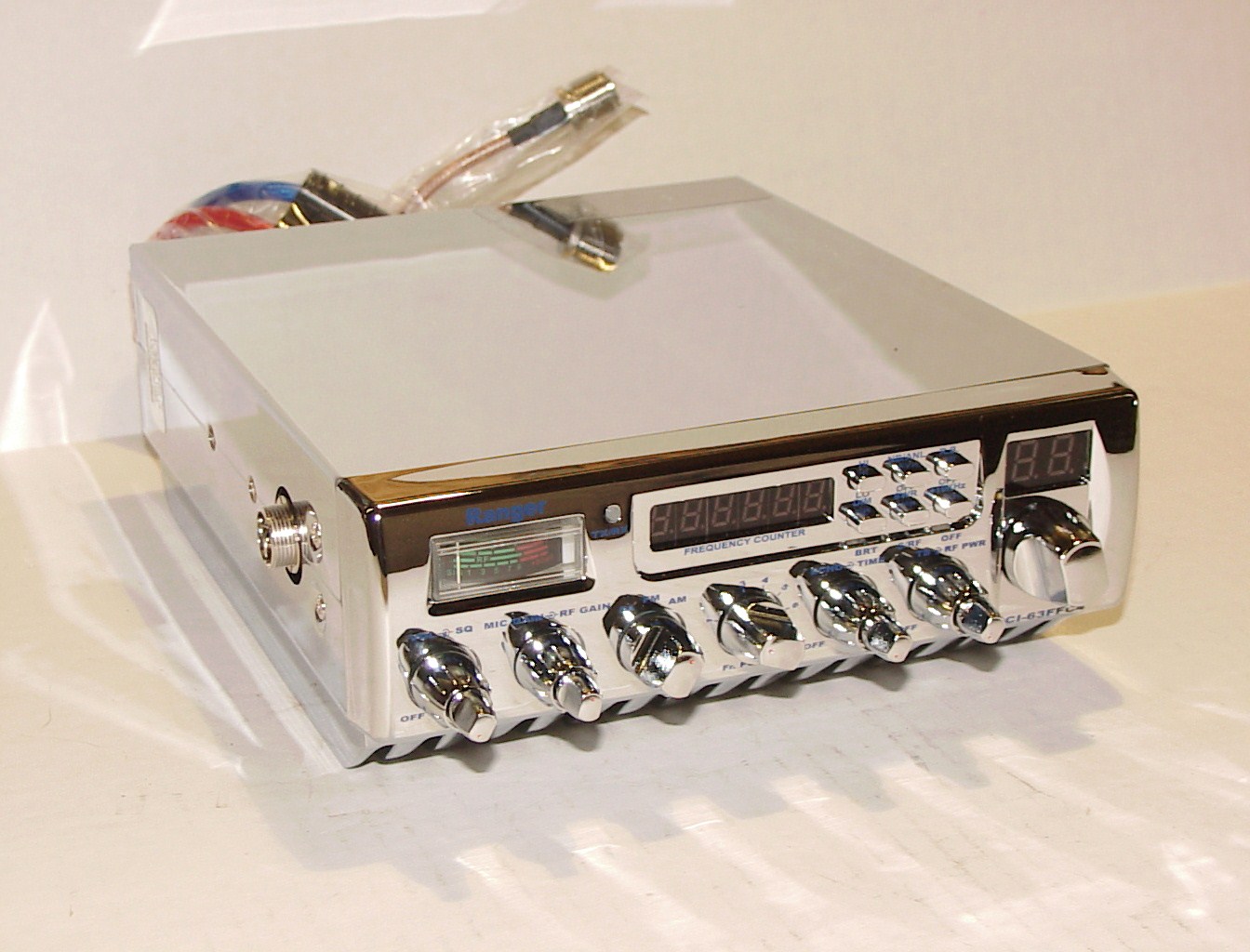

The Ranger RCI-63FFC4 amateur mobile transceiver offers
exceptional value for Novice and Technician Class amateurs upgrading to
Tech Plus and higher.
This entry-level unit is designed for easy, reliable and safe mobile
operation. The RCI-63FFC4 transceiver provides excellent receiver

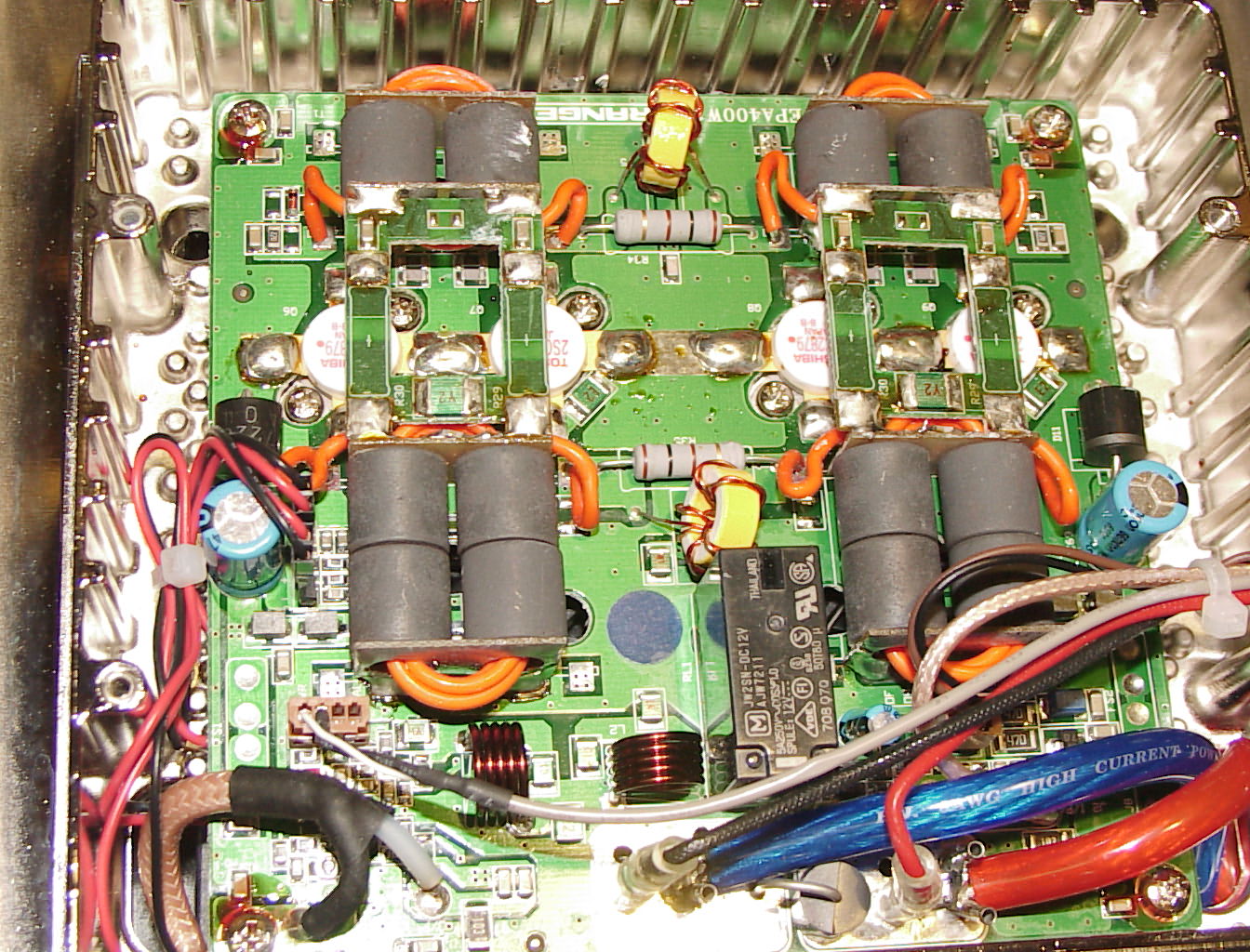

sensitivity and multi-mode operation. The 400 watts amplifier board has
four heavy duty 2SC2879 Toshiba transistors.
The easy-to-use frequency selection system covers the 10- meter amateur
band in 6-band segments. Actual operating frequency is accurately
displayed in the 6-digit LED display that’s easy to read even in bright
sunlight.
A channel indicator speeds return to a popular or previously used
frequency without interfering with the operator's attention to the road.
Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise
reduction during mobile operation.
Front panel RF power output control and RF Gain controls enable the
operator to set transmitter power and receiver sensitivity to match
operating conditions.
Additional front panel controls assure optimum performance under widely
varying conditions:
— A +10 kHz switch complements the frequency selection system by
shifting the Tx and Rx frequencies up by a known amount for increased
driving safety.
— Easy-to-read panel meter - three-functions indicating received signal
strength, transmitter power output, and antenna SWR.
- AM -FM and PA Modes
- High Sensitivity Receiver Design
- Echo &Talk/Back
- Variable RF Power Output
- Built-in Frequency Counter
- Blue LED Display
- Multifunction Panel Meter
- Display Dimmer
- Fully Chromed Housing and Face
- Heavy Duty Chrome Heat Sink
Comply with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful
interference. Further information can be found at the FCC
website http://fcc.gov or
the ARRL website http://arrl.org.
Transmitting using this radio requires an Amateur Radio License.
Licensing information can be obtained by visiting
www.fcc.gov or
http://arrl.org. In Canada, visit
http://strategis.ic.gc.ca
or http://www.rac.ca
|
