General

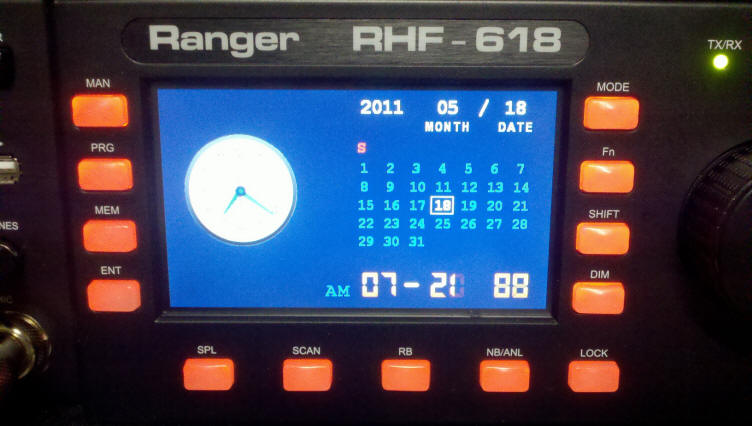

RHF-618

 Frequency Range

10 Mtr: 28.000 - 29.6999 MHz
12 Mtr: 24.8900 - 24.9900 MHz

 Tuning Steps

1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz

 Emission

USB, LSB, CW, AM, FM

 Frequency Tolerance

0.005%

 Frequency Control

Microprocessor / Phase-Locked-Loop Synthesizer

 Frequency Stability

0.001%

 Operating Temperature Range

-10 �C to + 50 �C

 Antenna Impedance

50 W

 Input Voltage

110VAC

 Microphone

400 W Dynamic PTT - 6 Pin

 Size (W x D x H)

 Weight

 Shipping Weight

 Transmitter

 RF Power Output (Factory OEM)
ESTIMATES UNTIL UNIT ARRIVES

CW / AM / FM: variable 10-70 Watts RMS
Peak AM: 130-150 Watts Peak power
SSB: 140 Watts (PEP)

 RF Power Output (Tuned-Up)
ESTIMATES UNTIL UNIT ARRIVES

CW / AM / FM: variable 5-50 Watts RMS
Peak AM: 180 Watts Peak power
SSB: 175 Watts (PEP)

 Modes

USB, LSB, CW, AM, FM, PA

 CW Keying

Semi break-in

 Carrier Suppression

- 50 dB

 Spurious Emission

- 50 dB

 Antenna Connector

UHF Type, 50 W

 Receiver

 Sensitivity

AM / CW: 0.5 �V for 10 db SINAD
FM: 0.25 �V for 12 db SINAD
SSB: 0.15 �V for 10 db SINAD

 Selectivity

- 55db

 Image Rejection Ratio

- 65 db

 Audio Output Power

2.5 Watts @ 10% THD into 8 W
