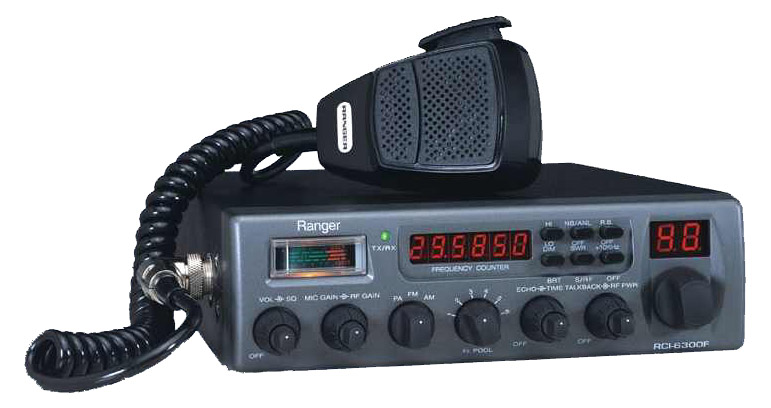

The
new Ranger RCI-6300F (AM/FM) series of amateur
mobile transceivers offer exceptional value for Novice and Technician Class
amateurs upgrading to Tech Plus and higher.
These new entry-level units are designed for easy, reliable and safe mobile
operation. Available in high
F-150 (FTB)
and
low
F-25 (FHP)
power versions, the
RCI-6300F transceivers provide excellent receiver sensitivity and multi-mode
operation at a fraction of the cost of full band transceivers.
The easy-to-use frequency selection system covers the 10- meter amateur band
in 6-band segments. Actual operating frequency is accurately displayed in the
6-digit LED display that’s easy to read even in bright sunlight.
A channel indicator speeds return to a popular or previously used frequency
without interfering with the operator's attention to the road.
Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise
reduction during mobile operation.
Front panel RF power output control and RF Gain controls enable the operator
to set transmitter power and receiver sensitivity to match operating
conditions.
Additional front panel controls assure optimum performance under widely
varying conditions:
— A +10 kHz switch complements the frequency
selection system by shifting the TX and RX frequencies up by a known amount
for increased driving safety.
— Separate coarse and fine tuning controls
for tuning above and below the selected frequency for ease of operations.
(RCI-6900F models).
— Easy-to-read panel meter - three-functions
indicating received signal strength, transmitter power output, and antenna
SWR.
For a
side-by-side features comparison chart of the RCI-6300 - 6900 Series versus the
other Ranger amateur models, please see the Comparison
Chart. |
Shopping
Cart
RCI-6300
Series
Download Manual
