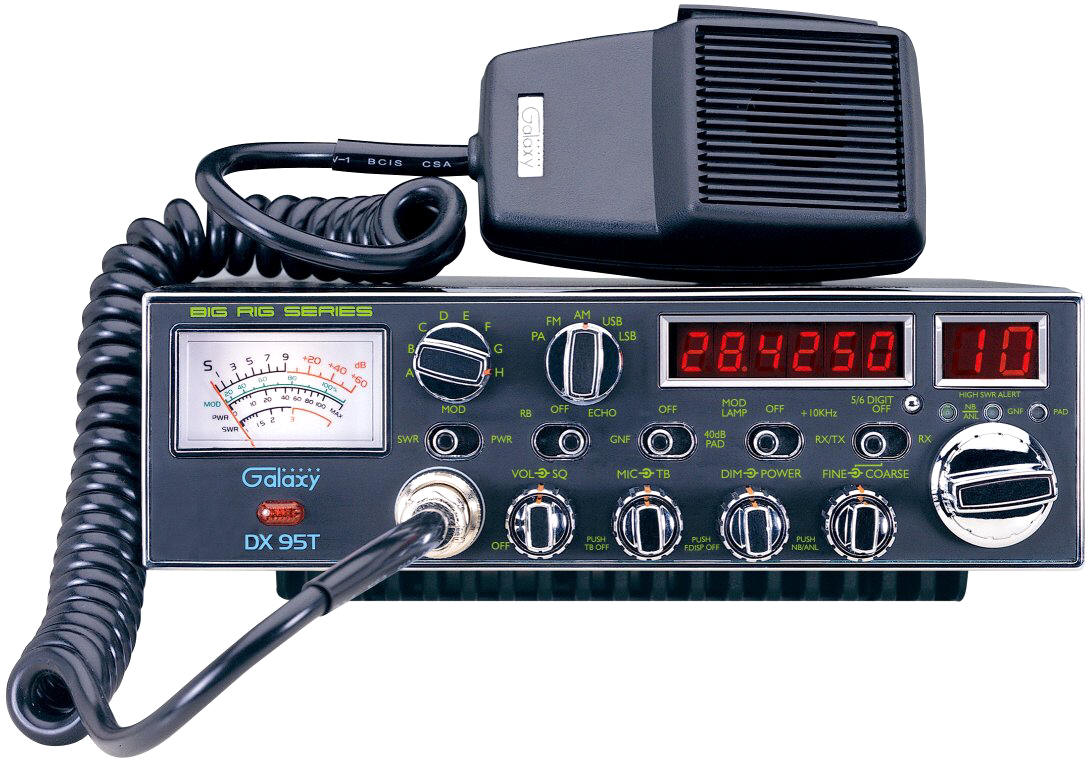

DX 95T2
High Power AM / FM / SSB
10 Meter Radio

Download Manual

Features
  • A High-Performance output circuit that uses two Toshiba 2SC2290 power transistors to generate 50 watts for AM/FM and 150 watts for SSB operation
  • Chassis incorporates a solid aluminum finned rear section as a heatsink
  • Additional heat sink on the bottom of the radio with an internal Micro cooling fan increases the radio height from 2.5 to 3 inches
  • Same main circuit board as the DX 2517, DX 93T, DX 48T and DX 45MP
  • "StarLite" faceplate is matte receive with all lettering backlit in green and blue
  • Switchable sixth digit provides five or six digit frequency display
  • Our exclusive "SuperSlider" circuit maximizes frequency control by switching the Fine clarifier between Receive/Transmit and Receive Only operation or completely out of the circuit with one slide switch. The Coarse clarifier operates on both receive and transmit unless the SuperSlider switch is off. When switched off, both clarifiers are out of the circuit.
  • Retro-look red modulation lamp (with On/Off switch) flickers like the old neon lamps of the Fifties and Sixties
  • Front mic jack
  • Variable power output control
  • Red channel and frequency digits
  • Heavy duty DC power cord
  • Large, easy-to-read meter with 4 scales:
    1. "S" meter indicates up to 60dB over S9
    2. Modulation percentage scale for use on AM
    3. Calibrated power scale
    4. SWR scale
  • Automatic SWR circuit (No complicated calibration procedure required)
  • LED's light red to warn of high SWR
  • Talkback circuit with On/Off switch and volume control
  • Variable dimmer control pot
  • On/Off switch for frequency display
  • Roger Beep circuit
  • NB/ANL circuit
  • Meter glows red during transmit
  • Two year limited warranty









Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

... Discontinued ...



Specifications

 General



 Frequency Range

28.315 ~ 28.755 MHz

 Emission

USB, LSB, AM, FM

 Frequency Tolerance

0.005%

 Frequency Control

Phase-Locked-Loop Synthesizer

 Frequency Stability

0.001%

 Temperature Range

-10 C to + 50 C

 Antenna Impedance

50 W

 Input Voltage

13.8 Vdc

 Microphone

Dynamic

 Size (W x H x D

 Size 7 3/4" x 2 7/8" x 10 1/4"

 Weight

6 lb

 Shipping Weight

 10 lb.

 Transmitter



 RF Power Output

2-50w RMS: AM / FM
150 Watts: SSB (PEP)

 Current Draw

25 Amps

 Modes

USB, LSB, AM, FM, PA

 Carrier Suppression

- 50 dB

 Spurious Emission

- 50 dB

 Audio Distortion

10%

 Frequency response

300 to 2500Hz

 Clarifier Range

Coarse: 6.0KHz, Fine: 1.0KHz

 Antenna Connector

UHF Type, 50 W

 Receiver



 Sensitivity

AM / CW: 0.5 V for 10 db SINAD
FM: 0.25 V for 12 db SINAD
SSB: 0.15 V for 10 db SINAD

 Selectivity

- 55db

 Squelch Sensitivity

<0.5 uv

 Image Rejection Ratio

- 65 db

 Audio Output Power

2.5 Watts @ 10% THD into 8 W

AGC Figure of Merit

100 mV for 10dB Change in Audio Output
