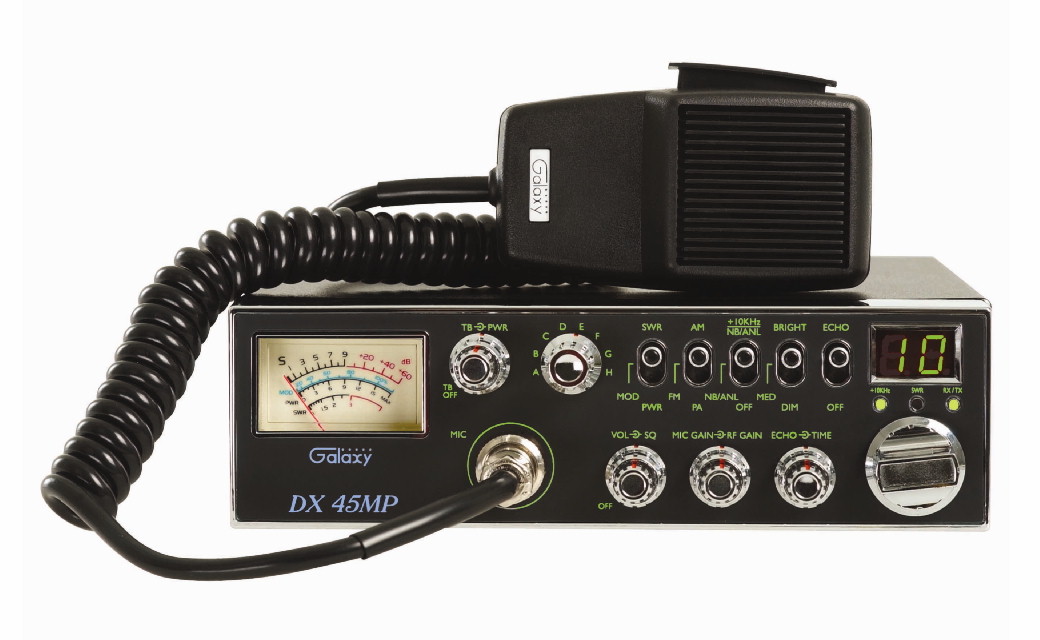

DX-45MP


10 Meter Mobile Radio

Click image for larger view

DX 45MP
Medium Power AM/FM
10 Meter Radio

Front mic jack
Two 2SC1969 output transistors that generate 10 watts of power for AM and FM operation (No SSB operation)
Chassis incorporates a solid aluminum finned rear section as a heatsink

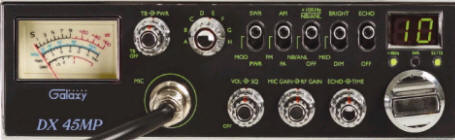

New "StarLite" faceplate is matte receive with all lettering backlit in green and blue
Same main circuit board as the DX 48T
Medium duty DC power cord
Large, easy-to-read meter with 4 scales:
1. "S" meter indicates up to 60dB over S9
2. Modulation percentage scale for use on AM
3. Calibrated power scale
4. SWR scale
Automatic SWR circuit (No complicated calibration procedure required)
LED lights red to warn of high SWR
Variable power output control
Echo with dual controls
Talkback circuit with On/Off switch and volume control
Green/Red LED indicator for Receive/Transmit
NB/ANL circuit
Receive gain control
Two year limited warranty

... DISCONTINUED ...
