  Orders with radio work are delayed 7 - 14 days

     10 Meter Mobile Radio

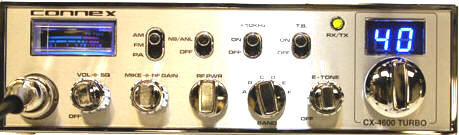

4600-Turbo
AM/FM 10 Meter Radio

... Discontinued...



Features
  • 30 Watts FM /AM carrier power

  • 175+W AM peak power

  • BLUE meter light

  • BLUE Channel LED

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • PA

  • Echo Board with Two Controls

  • Talk Back "ON" during Echo

  • Two Power Output Levels

  • Pre-wired for FC 347 or FC-30 Frequency Counter




VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)





Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.



The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.








CB Microphone Wiring (Galaxy)

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...Connex 4600 Turbo...
...Discontinued...
$369.50



Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) (AM/FM: 4-40w, Peak AM: 80~175w) $39
Switch Location
 Install a switch turn off the 400w amp.
Low power output is
(AM/FM: .1~.75w, Peak AM: 2~10w)
$15
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
SOLD OUT
 The  FC-347 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $59
LED Color
FC-30 Frequency Counter large face and dual input type, a plug  for this radio and external input for other radio types that have no plug in the back. $69
Colors
Install Star-Bryte Knobs with dimmer Starbrytecontrol. Includes a 6 Knob set , parts and labor. $172
Colors
Rings OnlyInstall Star-Bryte Rings behind the factory knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 LED Rings , parts and labor. $136



GENERAL

Frequency Range 28.065 to 28.505 MHz
Frequency Control  Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and
coiled cord.
Input power 13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).

Transmit:

AM/FM Hi Power 25A.

Receiver:

Squelched, 0.3A.
  Maximum Audio output, _ 0.7A.
Size

 Size 7 3/4" x 2 7/8" x 10 1/4"

Weight 12.0 1bs.
Antenna Connector UHF, SO239
Meter Illuminated; indicates relative output power,
received signal strength.

Transmitter

Power output AM/FM, - Selectable 40W/4W
AM Peak Power  150+ Watts.
Modulation High-and low-level Class B, AM
Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators  Meter- shows relative RF output power.
Transmit LED glows red when transmitter is
in operation.

Receiver

Sensitivity AM: 0.5 mV for 10 dB (S+N)/N at greater than
½ -watt of audio output.
  FM: 1.0 mV for 20 dB (S+N)/N at greater than
½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency  AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel
Rejection
60 dB AM
RF Gain Control 45 dB adjustable for optimum signal
reception.
Automatic Gain Control
(AGC)
Less than 10 dB change in audio output for
inputs from 10 to 100,000mV.
Squelch Adjustable; threshold less than 0.5 mV.
ANL Switch-able
Noise Blanker  RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round. or External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
