   10 Meter Mobile Radio

Click for larger

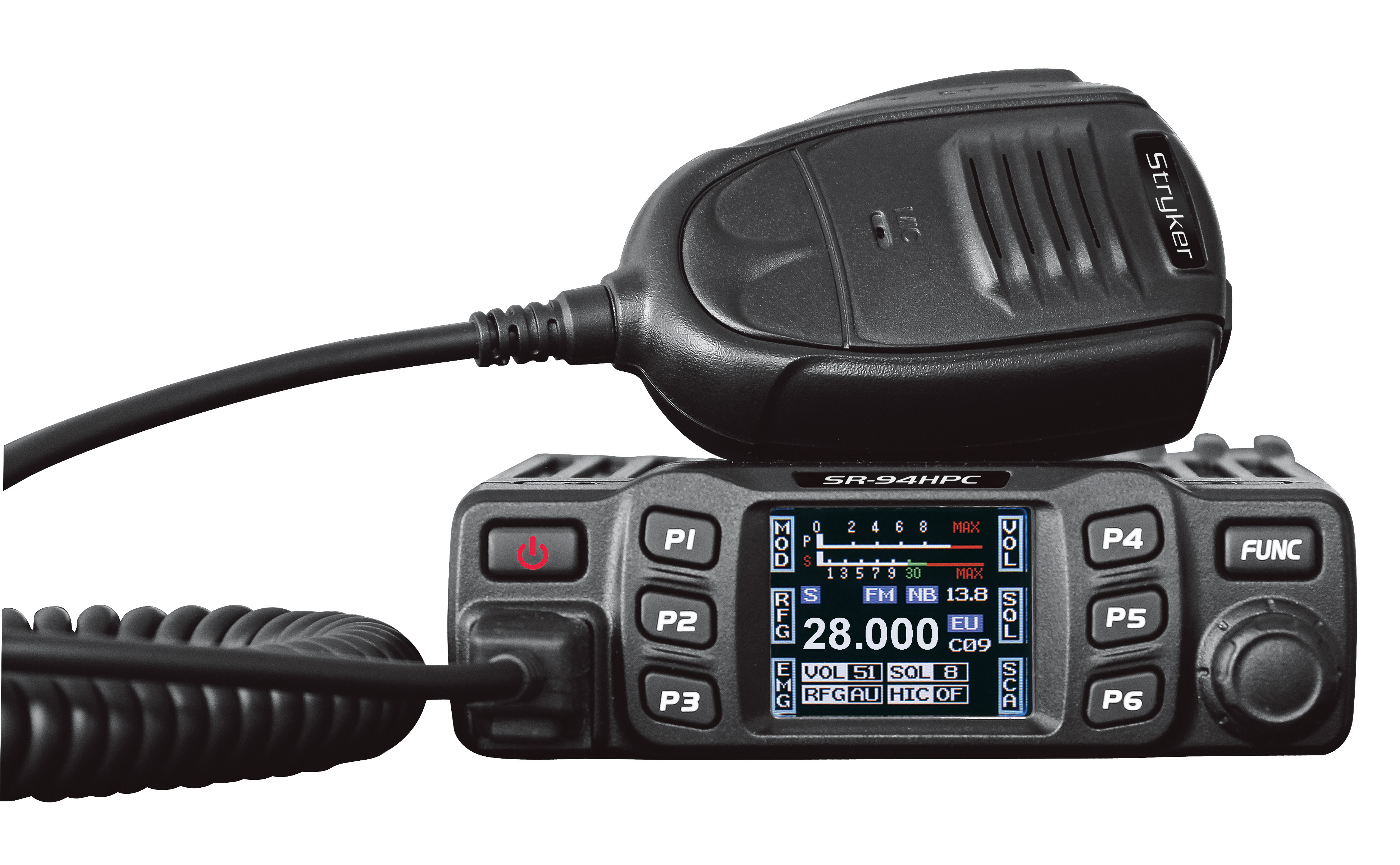

SR-94HPC

AM/FM 10 Meter Radio



Download Manual

The new SR-94HPC 10 Meter Radio offer advanced features, customizable settings, and 45 watts AM PEP in a remarkably small chassis. The wrap around cast aluminum heatsink does an excellent job at dissipating any heat that’s generated during transmit.

The SR-94HPC features a full-color TFT display. The clarity of the screen allows you to read it even if you are quickly glancing at it while driving down the road. You can choose what you want to show on the screen (features, functions, frequency, voltage, S units and more). There is a total of 6 push buttons around the screen (P1 – P6). Each button is assigned to a function; for example microphone gain or rf gain. Part of what makes the SR-94HPC unique is you can customize what feature or functions that you use most frequently.

Future accessories for the SR-94HPC include a Wireless Bluetooth microphone and Smart Phone App that connects to the radio via Bluetooth. Now that is what we call innovation!

The SR-94HPC is the perfect radio for an amateur that enjoys talking on 10 Meter FM Repeaters. With the optional CTCSS board, the SR-94HPC has 38 CTCSS tones, 104 DCS tones, and repeater offsets (+ or -).

The power output vs. physical size of the radio is what will surprise many of you! This much power is usually only available in a full-size DX chassis. We managed to utilize three FQP13N10 final transistors for 45+ watts of PEP. Like all Stryker Radios, it has strong AM transmit audio.

Measuring in at only 5.8” L x 4.8” W x 1.4” H, this radio will fit in any vehicle, regardless of size. Never before has full featured, high power radio been available in compact chassis. With clean, modern styling, the SR-94HPC looks great in any vehicle. The PCB & frame are exceptionally rugged, on the road, off the road or no road, the SR-94HPC can take it without any problem.

Features

  • Small Size: L 5.87" x 4.75" x H 1.5"
  • 10 & 12 Meters
  • 45+ Watts PEP
  • RF Power High / Low
  • AM / FM
  • MIC / RF Gain Controls
  • PC Programmable
  • CTCSS / Rep Offsets
  • Function Menu & More
  • Dimmable TFT Color Display
  • High & Low Power (4 watt or 10-watt carrier)
  • Backlit Keys
  • Scan Function
  • Dual Channel Watch
  • Channel and Frequency Display
  •  Integrated Automatic SWR  meter
  • Digital S-meter Display
  • 4 Memory Channels
  • Operating Voltage
  • RF gain Of / Auto + 10 Attenuation Levels
  • Noise Blanker Function & Hi-Cut Filter
  • Channel 9 & 19 Quick Access
  • Roger Beep function (8 settings)
  • CTCSS / DCS (encode & decode) 38 CTCSS / 104 DCS
  • DTMF (encode)
  • Microphone with UP / DOWN selection
  • Squelch (Manual or ASQ) and Volume Adjustable
  • Programmable via PC Software (Download from Stryker Website soon)
    • Time-Out Timer function
    • Bluetooth (optional)

...SR-94HPC.. $139.50



Optional Accessories

 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage)

$29

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19


Specifications

GENERAL

Modulation Mode

AM/FM

Frequency Range

28.000 ~ 29.700MHz (FM)

28.000 ~ 29.700MHz (AM)

Frequency Tolerance

±5.0ppm

Input Voltage

12/24V

Dimensions(in mm)

124(W) x 163(D) x 39(H)

Weight

Approx.670g

Frequency Control

PLL Synthesizer

Operating Temperature Range

-20° C TO + 55° C

Current Drain

Transmit

5A MAX

Receive

Squelched 0.3A

VOL Max

0.8A

Antenna Connector

UHF,SO-239

TRANSMITTER

Power Output

4 WattsFM/AM / 10 Watts AM/FM

Transmission interference

inferior to 4nW(-54dBm)

Frequency Response

300-3000Hz

Modulated signal distortion

inferior to 5%

Output Impedance

50 ohms

RECEIVER

Sensitivity

Less than 1uV for 10dB(S+N)/N

Image Rejection

70dB

Adjacent Channel Rejection

60dB

IF Frequencies

1st 10.695MHz

2nd 455KHz

Automatic Gain Control(AGC)

Less than 10dB change in audio

Output for inputs from 10 to 50000uV

Squelch

less than 1uV

Audio Output Power

3 watts into 8 ohms

Frequency Response

300-3000Hz




Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca









The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
