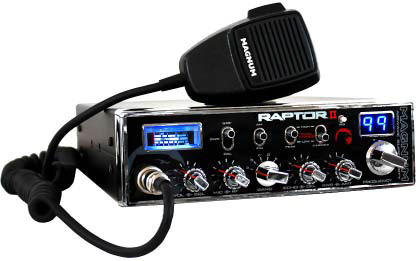

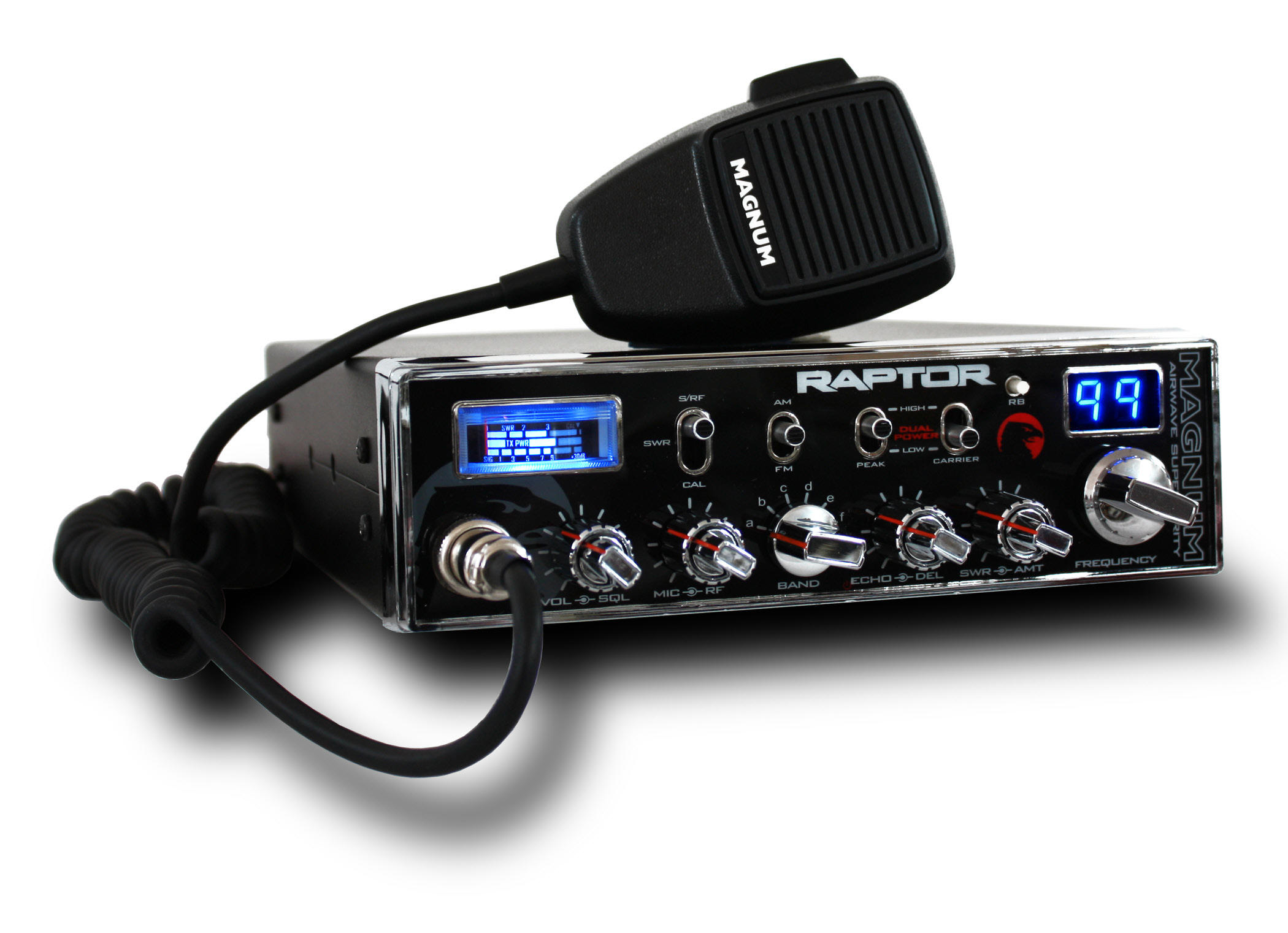

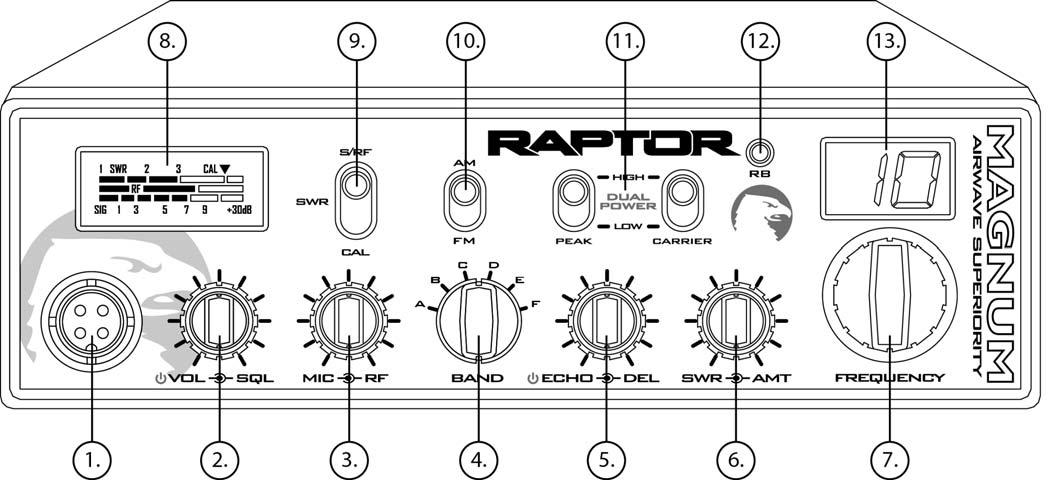

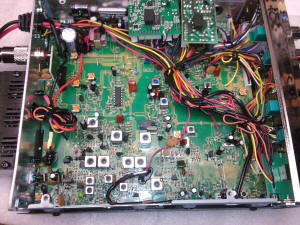

The Magnum Raptor II is a combination microprocessor and phase-lock loop (PLL) controlled radio combining both high RF performance with a user-friendly front panel. The Magnum Raptor is built rugged to withstand years of use in harsh mobile environments. Although engineered with mobile use in mind the Magnum Raptor, with the addition of a high quality 20 amp regulated power supply, may be easily adapted to fixed station operation.

The Raptor is equipped with Magnum’s exclusive “Dual Power” system for ease of switching between 80 watts PEP Hi power and 25 watts PEP Low power. The low power setting is for close proximity radio contacts or when running an external amplifier.

For low power, simply place both controls to the down or LOW position. (2w carrier and 25w peak) It is critical to keep the AM transmitter’s peak to average ratio correct in order to  prevent your signal from being compressed or distorted and that is the reason for 2 controls, insuring the correct peak to average ratio at all times.



Features

  • 10 Meter Amateur Transceiver
  • AM / FM Modes
  • True Dual Power Output - 80 & 25 Watts PEP
  • Selectable Peak and Carrier RF Output Settings
  • Front Panel Microphone Jack
  • Blue Back Lit LED Display
  • Built-In SWR Bridge
  • S/RF/SWR Meter - Blue LED Backlit
  • RF Gain and Microphone Gain Controls
  • SWR / Calibrate Meter and Controls
  • TURBO Digital Echo - A Magnum Exclusive!
  • AMT - All Mode Talk-Back with Volume Control
  • Roger Beep with On/Off Control
  • Ext. Frequency Counter Jack on Rear Panel
  • MARS / CAP Capable (Permits Required)
  • 1 Year WarrantyMicroprocessor Controlled Transceiver






... Unavailable ...





Optional Accessories
   Tune-up (and free frequency conversion.)
(Some radios have internal factory options for expanded frequency coverage / more channels)
$29
   Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$54
   Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$30
   Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$57
   Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65
   Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
   Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
   Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18




GENERAL SPECIFICATIONS
Emission Modes

FM (F3E) / AM (A3E)

Antenna Impedance 50 ohm, unbalanced
Frequency Control Digital Phase-Lock Loop (PLL) Synthesizer
Frequency Accuracy Better than +10 ppm from 0 - 40 0C after 15 min. warm up

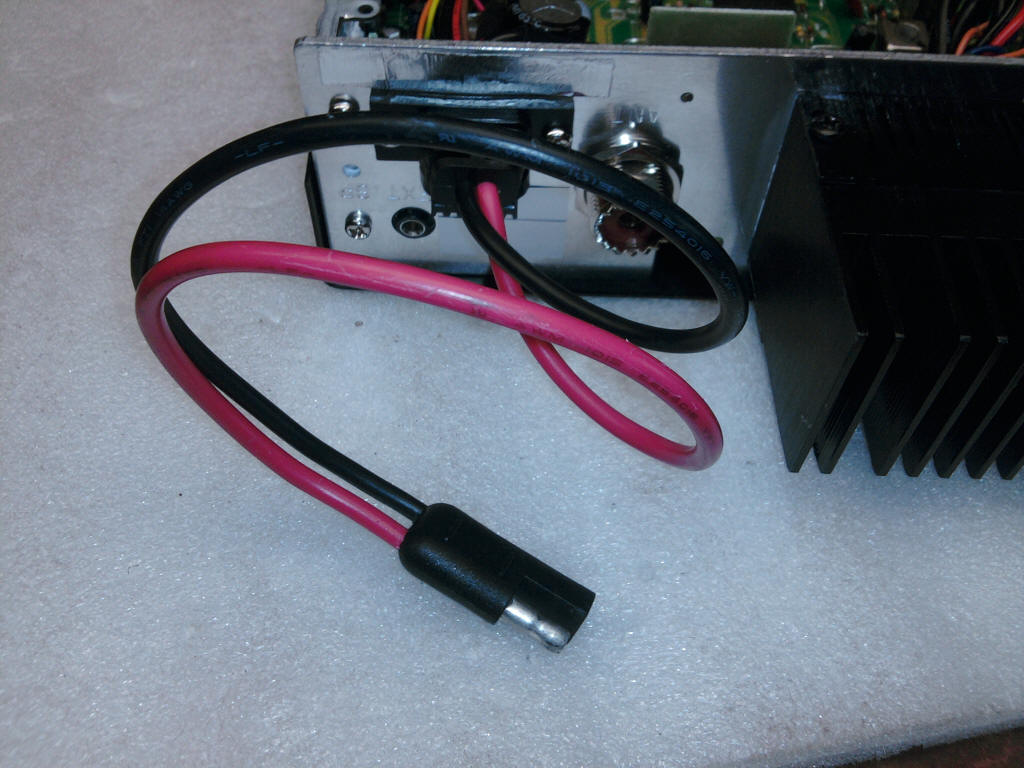

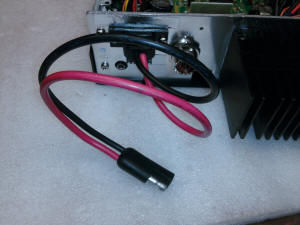

Power Requirement

12 – 13.8 V DC, negative ground

Current Consumption 10 amps maximum
Dimensions 7.75 x 10.75 x 2.25inches
Weight 4.4 lbs.
TRANSMITTER SPECIFICATIONS
Power Output FM............. 15 Watts
AM Carrier... 2 Watts Low / 15 Watts High
AM Peak..... 25 Watts Low / 80 Watts High
Tuning Steps 10 kHz
Final Transistor ERF7530
Spurious Emissions More than 50 dB below peak output power
Carrier Suppression

More than 40 dB below peak output power

FM Deviation +/- 2 kHz maximum
Audio Response More than 30dB below peak output
Frequency Response 400 to 2800 Hz
Microphone Impedance ECM, 600 to 1K ohm
RECEIVER SPECIFICATIONS
Circuit Type

Dual-Conversion Super-Heterodyne



Sensitivity

AM ............ 0.5 μV at 10 dB S + N/N

FM ............ 0.3 μV at 12 dB SINAD

Selectivity  AM / FM ... 6.0 kHz (-6 dB) / 18 kHz (-60 dB)
Adjacent Channel Rejection Better than 70 dB
IF Rejection

Better than 80 dB for all frequencies

Frequency Response 250 to 3000 Hz
Audio Output Power

2 watts minimum at 10% THD with an 8 ohm load

Audio Output Impedance 8 ohms
