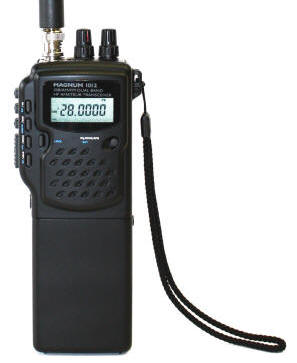

Magnum 1012 HT AM/SSB

954-771-8161

OPEN
TUE - SAT
10-4 EST

CAT Enterprises

Tech Library	Shopping Cart	Contact Us
CB Repair		Items on eBay

Features

Frequency Conversion options:

The Magnum 1012 has eleven different frequency and Code selections:

Code 1: 10 Meter Band (28.000 – 29.690MHz), AM/FM/SSB
Code 2: 12 Meter Band (24.890 – 24.990MHz), AM/FM/SSB
Code 3: 454 channels (25.165 – 29.655MHz), AM/FM/SSB
Code 4: 454 channels PL (25.160 – 29.650MHz, ‘0’ Raster), AM/FM/SSB
Code d: German 80 channel CB (26.565 – 27.405MHz), AM (1W)/FM/SSB
Code EU: 40 channel CB (26.965 – 27.405MHz), AM(1W)/FM/SSB
Code E: 40 channel CB (26.965 – 27.405MHz), AM/FM/SSB
Code PL: 40 channel CB (26.960 – 27.400MHz, ‘0’ Raster), AM/FM/SSB
Code U1: UK 40 channel CB (27.601 – 27.991MHz), AM/FM/SSB
Code U2: UK 40 channel CB (26.965 – 27.405MHz), AM/FM/SSB
Code US: USA 40 channel CB (26.965 – 27.405MHz), AM/SSB

We usually use code 3 and this is the Frequency Chart.

Code 3 is the most popular but then the 12 meter band is not accessible. To reprogram to code 2 "on the fly" is presently impossible. You have to access the contacts, short two pins, turn on the power all at the same time. It is just not something you do while on the hiking trail. It's almost more accurate to describe it as a 10 or 12 meter radio.

*Optional Accessories*
	SPM-1 Speaker Mic Speaker/ Lapel microphone. (wired with a plug for this radio )	$18
	Longer Antenna HT-1. (Increases range by more than 400%)	$19

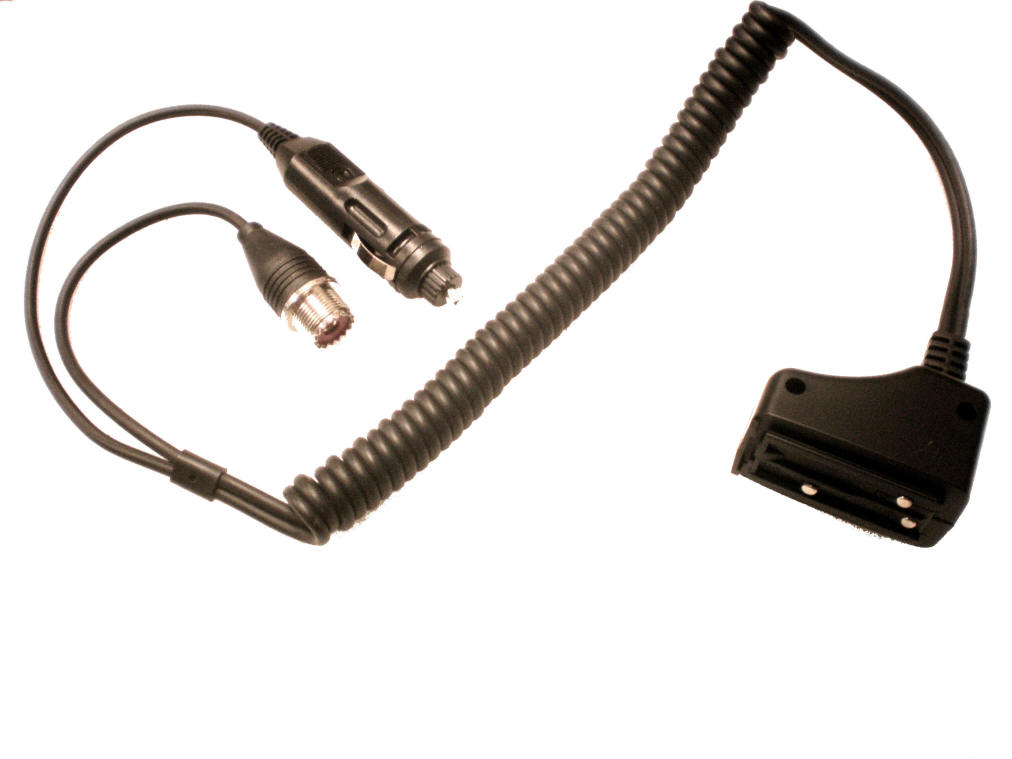

	Mobile Adapter MOB-1012. (External connection for power and antenna)	$38
	Add a Small External Speaker (plugs into back of the radio for improved sound)	$12
	Add a Large External Speaker (plugs into back of the radio for improved sound)	$18

GENERAL
Frequency Range	See code chart to right
Frequency Control	Phase Lock Loop (PLL) synthesizer.
Operating Temperature Range	-5° F to +110° F
Size	7.5”(H) x 2.75”(W) x 1.5”(D).
Weight	9 oz.
Antenna Conductor	BNC
TRANSMITTER
Power Output	AM, High:3 watts. Low: .7 W SSB, High:3-4 watts, Low: 1W PEP.
Modulation	High-and low-level Class B, Amplitude Modulation.
Current Drain:	Less than 1200 mA.
Output Impedance	50 ohms, unbalanced.
RECEIVER
Standby Current	50 mA w/o battery save mode
External Speaker (Not Supplied)	8 ohms; disables internal speaker when connected.
