Type:
High quality amplified crystal

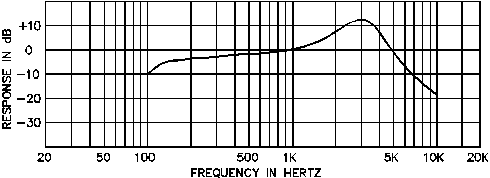

Frequency Response:
Maximum Output Level:
-20 dB below 1 volt per microbar at 1 kHz into 1 megohm load
Amplifier Voltage Gain:
26 dB
Impedance:
5000 ohms max. (matches all transmitters)
Cable:
Five conductor (one conductor shielded) coiled cord that extends to 2.3 m (7 1/2 ft.)
Housing:
Die Cast Zinc Alloy
Finish:
Polished Chrome
Battery:
Standard 9 Volt Battery (Not Included)
Battery Drain:
1.2 ma

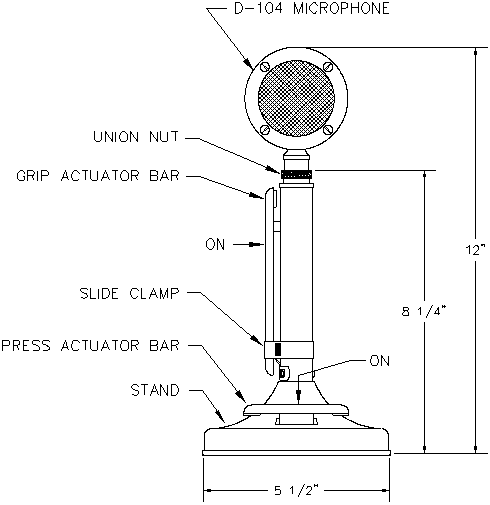

Size:
TUP9-D104SE: 305 mm (12") high x 135 mm (5 1/4") diameter
D104SE: 103 mm (4 1/16") high x 77 mm (3 1/32") wide x 29 mm (1 1/8") deep
TUP9SE: 210 mm (8 1/4") high x 135 mm (5 1/4") diameter
