D104-FE



    The Final Edition! Yes, that’s right, after 70 years Astatic is finally discontinuing their most famous microphone ever.

The D104FE Silver Eagle is a combination of the original super talk-power D104 crystal microphone with a transistorized rugged, versatile TUP9SE Stand. The Silver Eagle is entirely chrome plated and features a grip-to-talk bar and a press-to-talk bar. The D104FE is compatible with our "G" series of microphones. The microphone head plugs into the top of the mast and is locked on by means of a union nut. The TUP9SE stand has a built-in two stage silicon transistor amplifier having high impedance input. The output impedance is suitable for the inputs of all commercial transmitters or transceivers. The TUP9SE stand is entirely chrome plated. The D104FE crystal head features an engraved eagle on the rear of the head and is entirely chrome plated.

Additional features now include:

  • individually serialized base,
  • Certificate of Authenticity,
  • "Final Edition" Badge with the
  • original Astatic logo,
  • and a clear display case.



Remember the old 10-DAL SSB Head? That's Great audio !





Unavailable...No longer in production



Specifications
Type: High quality amplified crystal

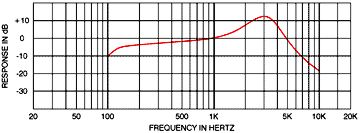

Frequency Response: Adjustable, See Frequency Response Curve on left
Maximum Output Level: -20 dB below 1 volt per microbar at 1 kHz into 1 megohm load
Amplifier Voltage Gain: 26 dB
Impedance:
5000 Ohms max. (matches all transmitters)
Cable: Five conductor (one conductor shielded) coiled cord that extends to 2.3 m (7 1/2 ft.)
Housing: Die Cast Zinc Alloy
Finish: Polished Chrome.
Battery: Standard 9 Volt Battery (Not Included)
Battery Drain: 1.2 ma
Size: TUP9-D104SE: 305 mm (12") high x 135 mm (5 1/4") diameter
D104SE: 103 mm (4 1/16") high x 77 mm (3 1/32") wide x 29 mm (1 1/8") deep
TUP9SE: 210 mm (8 1/4") high x 135 mm (5 1/4") diameter
Weight: TUP9-D104SE: 1.22 kilograms (2 lbs. 11 oz.)
D104SE: 255 grams (9 oz.)
TUP9SE: 964 grams (2 lbs. 2 oz.)
