Microphones



Click image for larger view

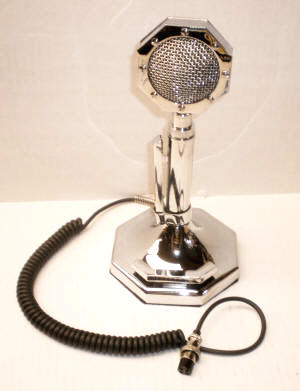

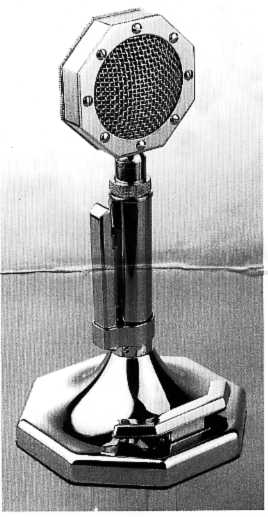

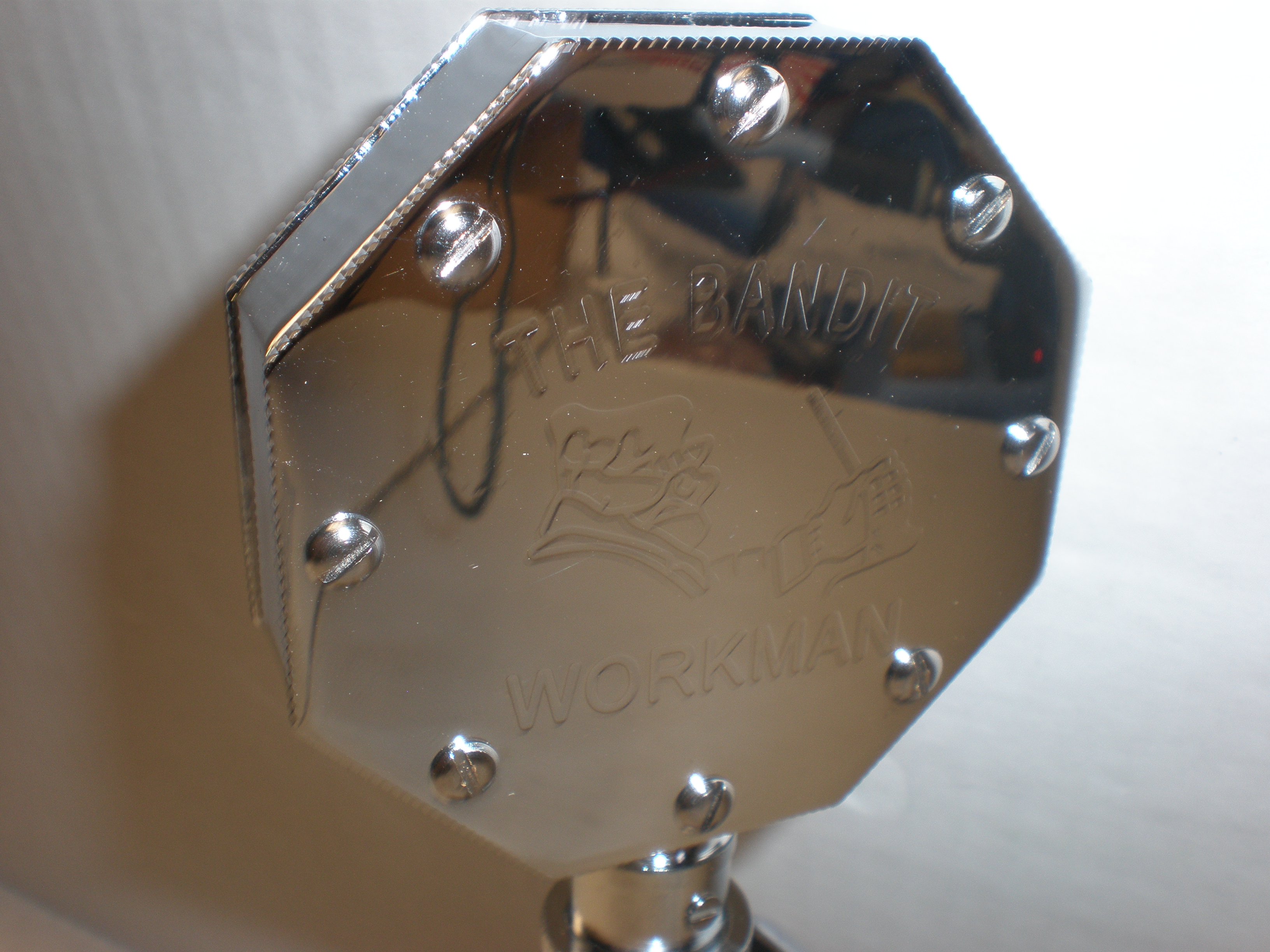

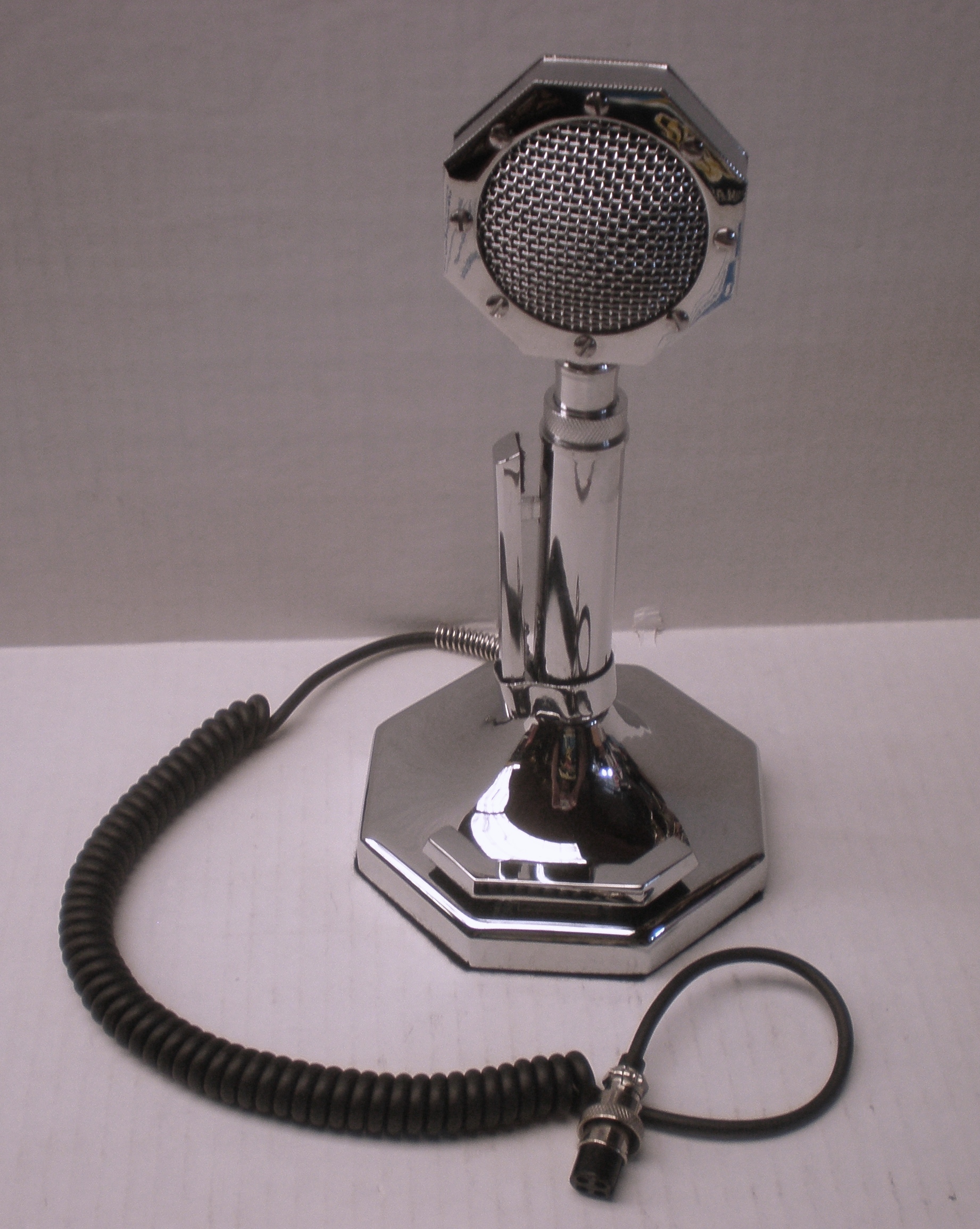

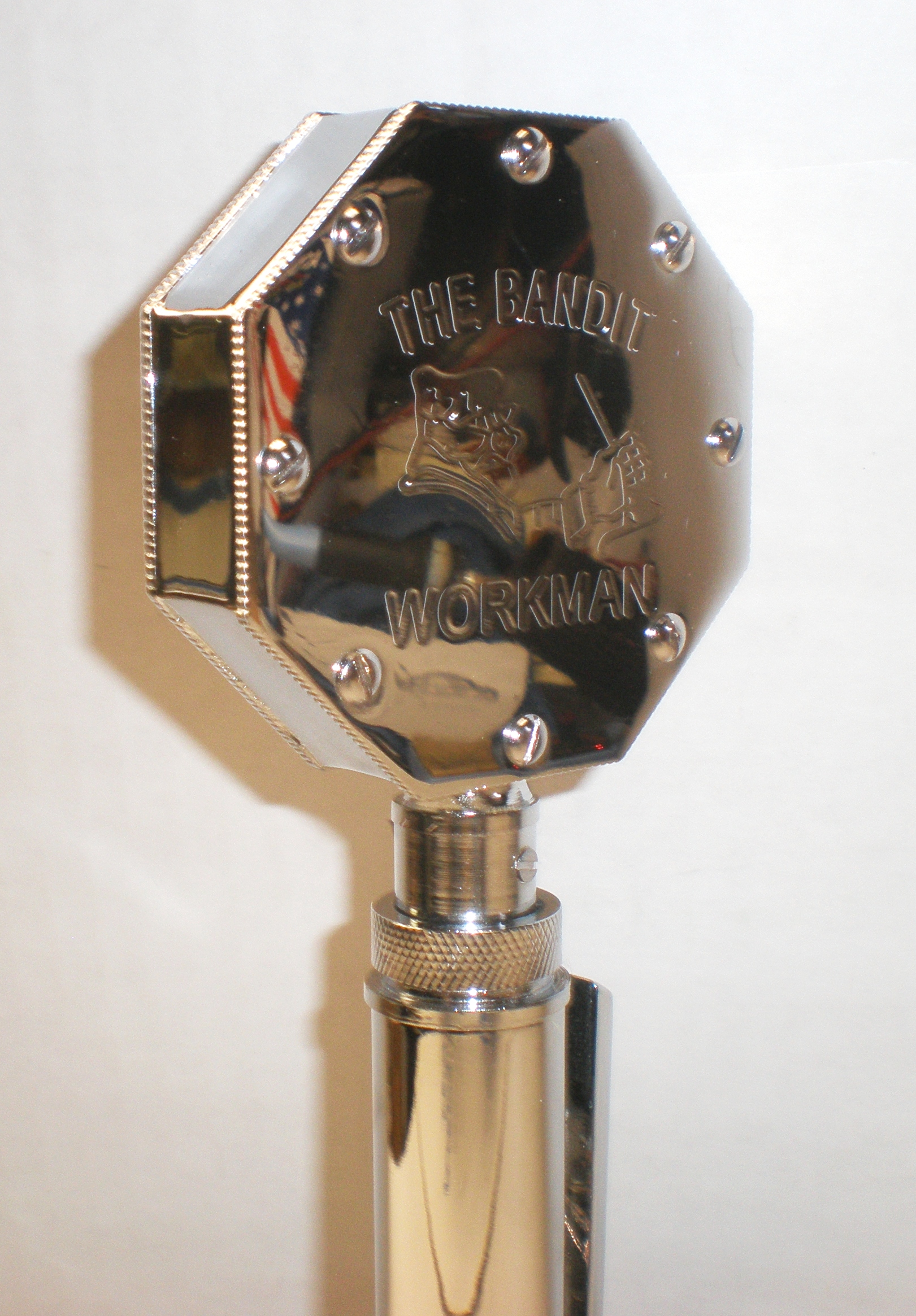

Super Star

"Silver Salute"




The SILVER SALUTE is a Base Microphone for the CB and amateur communications enthusiast. It is entirely chrome plated and features a grip-to-talk bar and a press-to-talk bar. The microphone head plugs into the top of the mast and is locked on by means of a union nut (See drawing on other side).



  • Entirely chrome plated
  • Variable output volume
  • "grip-to-talk" bar and a "press-to-talk"
  • Like a Short D104 (won't tip over as easy)
  • Does NOT sound just like a D104.

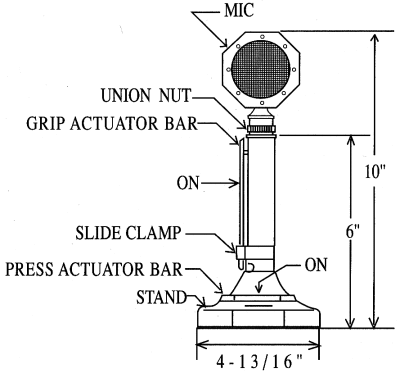

Front Diagram
Front

Back

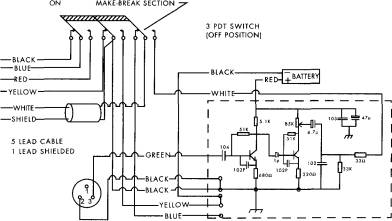

Schematic


  ... Discontinued ...




Specifications

Type: Dynamic MIC

Frequency Response

See Frequency Response Curve on other side
Sensitivity: -12 ± 2dB(at 1KHz)
Impedance: 600 Ohms
Cable: Five conductor coiled cord that extends to 9ft (2.7M)
Housing:

Die cast zinc alloy

Finish:

Polished chrome

Battery:

Standard 9 volt battery (not included)

Weight: 1.10Kg(2.41b, 38.8oz)

Size:

254mm(10") high x l23mm (4.8") width (Bottom)






Contact Button
Contact
