Mobile CB Radio


Click image for larger view

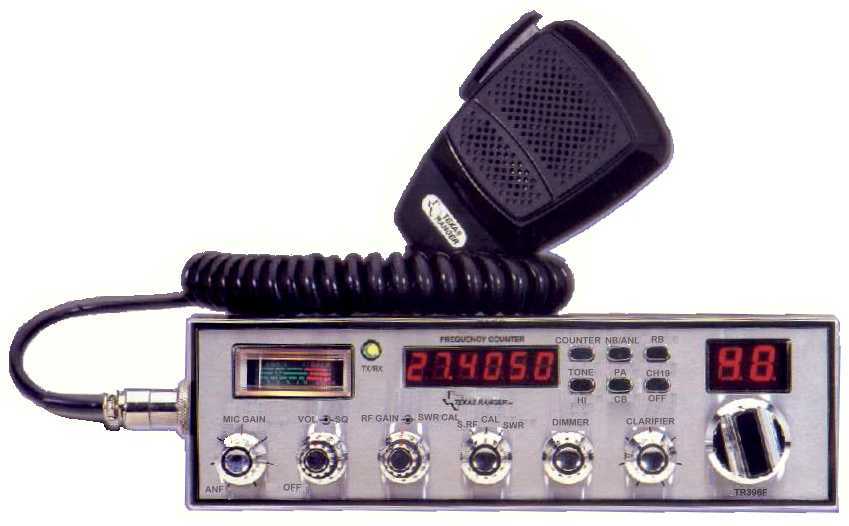

TR-396F

Download Manual

     The Texas Ranger TR-396F is one of the new radios featuring the "new circuit design" concept by Ranger Communications, Inc. Built with ruggedness, durability and reliability in mind, this model will answer your needs for a high performance radio for those interested in AM only operation.

     The TR-396F features Ranger Exclusive new Advanced Noise Filter Circuit for improved signal to noise ratio, providing high noise rejection capability that others just claim they have. This one works! You will instantly notice marginal signals pop in better when you turn on the switch and listen to your reception with a quieter signal. The Advanced Noise Filter circuit de-emphasizes the audio high frequency response in order to increase the signal-to-noise ratio of weak signals. This provides you with the ability to receive those marginal signals with much more clarity and understandability. Combined with the Noise Blanker and the Automatic Noise Limiter, this has to be the quietest mobile stations ever manufactured

  •  Built-in 6 Digit Frequency Counter
  •  Frequency Display On/Off Switch
  •  2 Digit Channel Indicator
  •  Variable Dimmer Control
  •  PA/CB Switch
  •  2 Color Xmit/Rcv Indicator
  •  Advanced Noise Filter Circuit Switch
  •  Automatic Noise Limiter / NB Switch
  •  Illuminated S/RF/SWR Meter
  •  S/RF/SWR Switch
  •  Roger Beep Switch
  •  Adjustable Volume/Squelch Control
  •  External PA Jack
  •  External Speaker Jack
  •  RF Gain/SWR/Cal Switch
  •  RF Gain Control
  •  Tone Switch
  •  Clarifier Control
  •  Mic Gain Control
  •  Dynamic Mike Included
  •  Built in Voltage Overload Protector Circuitry
  •  Switch for Instant Access to Channel 19
  •  2 Year Warranty







... DISCONTINUED ...



Specifications

 General

TR-396 F

 Frequency Range

26.965 - 27.405 MHz

 Channels

40 CB

 Frequency Control

Phase-Locked-Loop Synthesizer

 Frequency Stability

0.001%

 Operating Temperature Range

-30º C to + 50º C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 W

 Speaker Impedance

8 W

 Size (W x D x H)

7-7/8" x 9-1/4" x 2-1/8"

 Weight

5 lb

 Shipping Weight

6 lb. 5 oz

 Transmitter



 RF Power Output

4 Watts AM

 Carrier Emission

Better than -55 db

 Spurious Emission

Better than -55 db

 Audio Distortion

10%

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic

 Receiver



 Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

Adjustable (threshold less than 0.5 µV )

 Image Rejection

-65 dB

 Audio Power Output

2 Watts @ 10% Distortion

 AGC Figure of Merit

100 mV for 10 dB Change in Audio Output

 Audio Response

300 to 2500 Hz

 Clarifier Range

1.5 KHz ± 0.5 Hz
