                              Mobile CB Radio

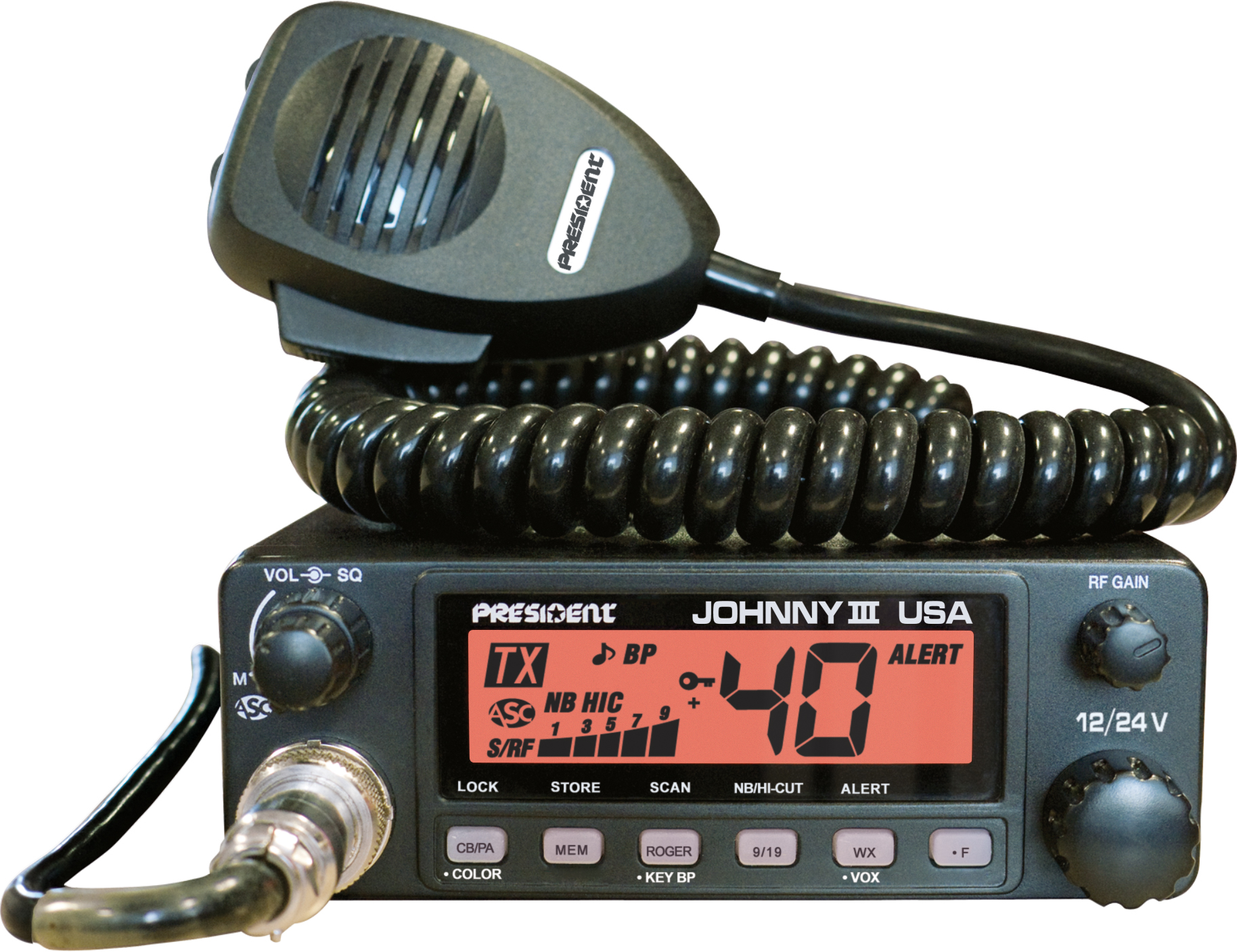

JOHNNY III USA 12/24V (Orange)

Click for larger image

Johnny III USA
AM  CB Radio

  Download Manual



President also extends the warranty to 5 years, when a consumer buys a President radio and antenna together.




Features

JOHNNY III USA - 12/24V

- 40 channels AM
- Channel rotary switch
- Weather Alert
- Volume adjustment and ON/OFF
- Manual squelch and ASC (Automatic Squelch Control)
- Multi-functions LCD display
- S-meter
- Vox function (Hands free)
- ANL filter and HI-CUT
- RF Gain
- Scan
- Priority channel memory
- F function key
- Beep Function
- Roger Beep
- Key locking
- Front microphone plug
- External loudspeaker jack

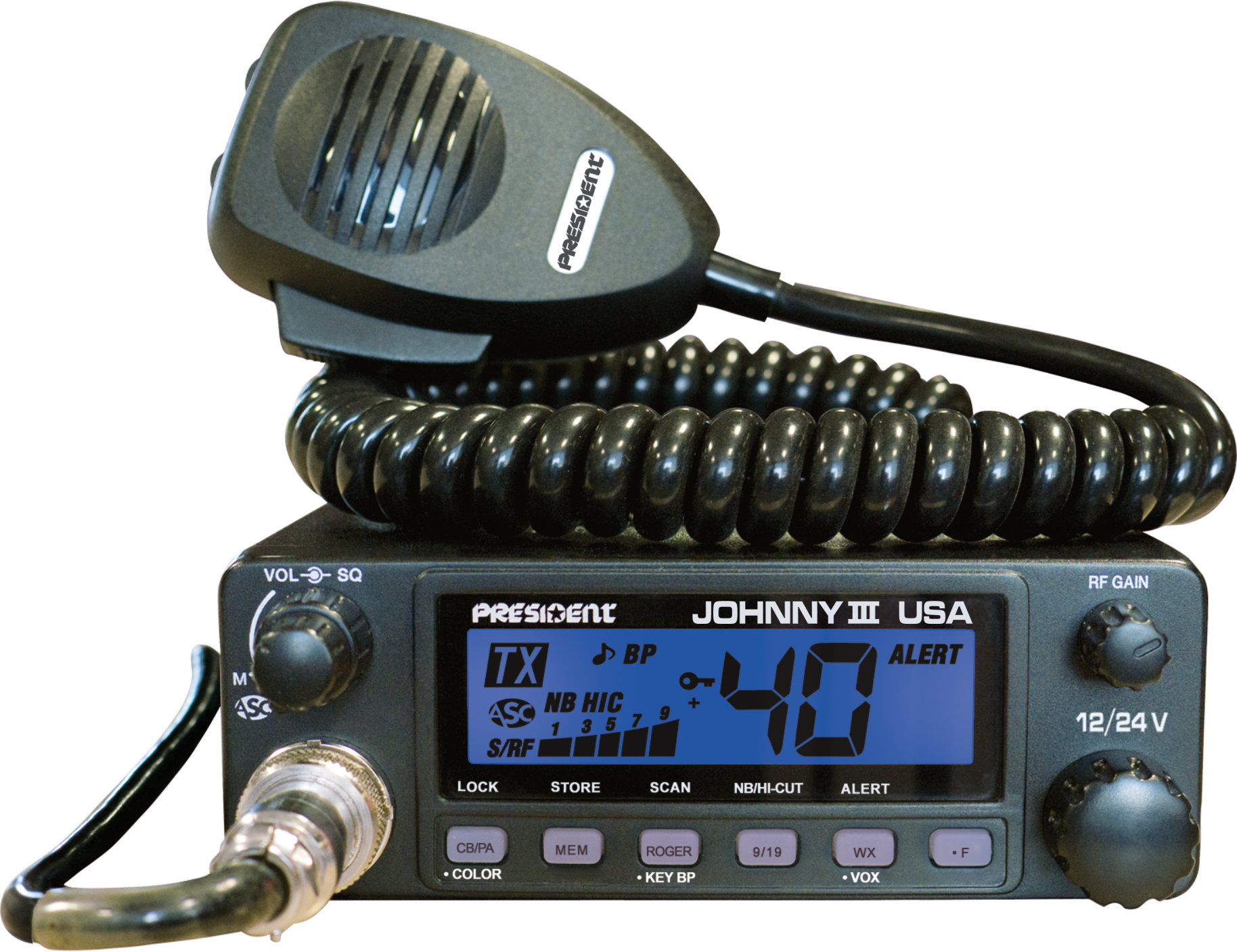

Backlight color:

Orange Green Blue

Warranty Duration 2 + 3 years.

-




ASC2+3 years warrantyRoHS - Lead FreeMurata inside



Click for larger images



JOHNNY III USA 12/24V (Orange)
JOHNNY III USA 12/24V (Orange)

Click for larger images




WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753









Mic wiring diagram:





... Johnny III... $119.50


Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance)  (5W carrier and 28-30w peak power.) $29
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 6 pin plug)
$61
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 6 pin plug)
$44
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$54

With buttons?

 Astatic RD104-E Amplified microphone.
(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.
$57
or
$99

  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address

 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications demo. Enter your Gmail so we can send a share to our Google drive for you to view. We upload twice monthly. $19



General
Number of channels 40 Cx (100% FCC)
Number of weather channels 7 Cx
Weather alert
Modulation modes AM
Frequency ranges from 26.965 MHz to 27.405 MHz
Weather channels from 162.400 MHz to 162.550 MHz
Antenna impedance 50 ohms
Power supply 13.8 V / 27.6 V
Size (W x D x H) 4.92 in. x 1.77 in. x 5.91 in. / 125 mm x 45 mm x 150 mm
Weight ~ 1.54 lbs / ~ 0.7 kg
Accessories supplied Ultra light electret microphone with support, mounting cradle, screws
Filter ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance +/- 200 Hz
Carrier power 4 W (Constant / Stabylised)
Transmission interference inferior to -60 dBc
Audio response 300 Hz to 3 kHz
Emitted power in the adj. channel inferior to 20 W
Microphone sensitivity 3 mV
Drain 1.7 A (with modulation)
Modulated signal distortion 1.8 %
Reception
Maxi. sensitivity at 10 dB (S+N)/N 0.6 V - 111 dBm
Frequency response 300 Hz to 3 kHz
Adjacent channel selectivity > 60 dB
Maximum audio power 2 W
Squelch sensitivity minimum 0.2 V - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate 60 dB
Intermediate frequency rej. rate 70 dB
Drain 300 mA nominal / 850 mA maximum



Warranty Duration 2 + 3 years.






The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
