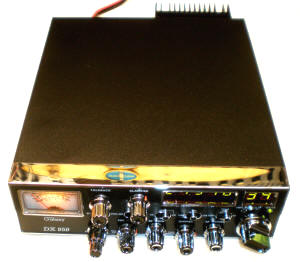

The item for bid is a BRAND NEW, never been opened, GALAXY DX-959 CB radio. We are an authorized dealer of GALAXY radios and are offering this to you at a great price.

With a New Original Equipment Final Output Section with high performance low pass filter by:

This radio will be removed from the box BRAND NEW and have the VIAGRA 120 channel expansion board installed using the front panel tone control switch. The clarifier will be expanded to allow slide in TX/RX. The Famous RF Limited TRB-X3 newest technology clear echo board will be installed using the front panel Talkback position. We move the Talkback to the back of the radio.. The receiver will be modified using new and better receiver parts ( 4 diodes and one transistor) to improve the sensitivity and lower the noise. By utilizing a high gain, super low noise transistor and four Schottky diodes in the AM detection and Noise Blanker stages it will increase the incoming signal and greatly improve the signal to noise ratio in the receiver (by approx 6db or 1 S-unit).

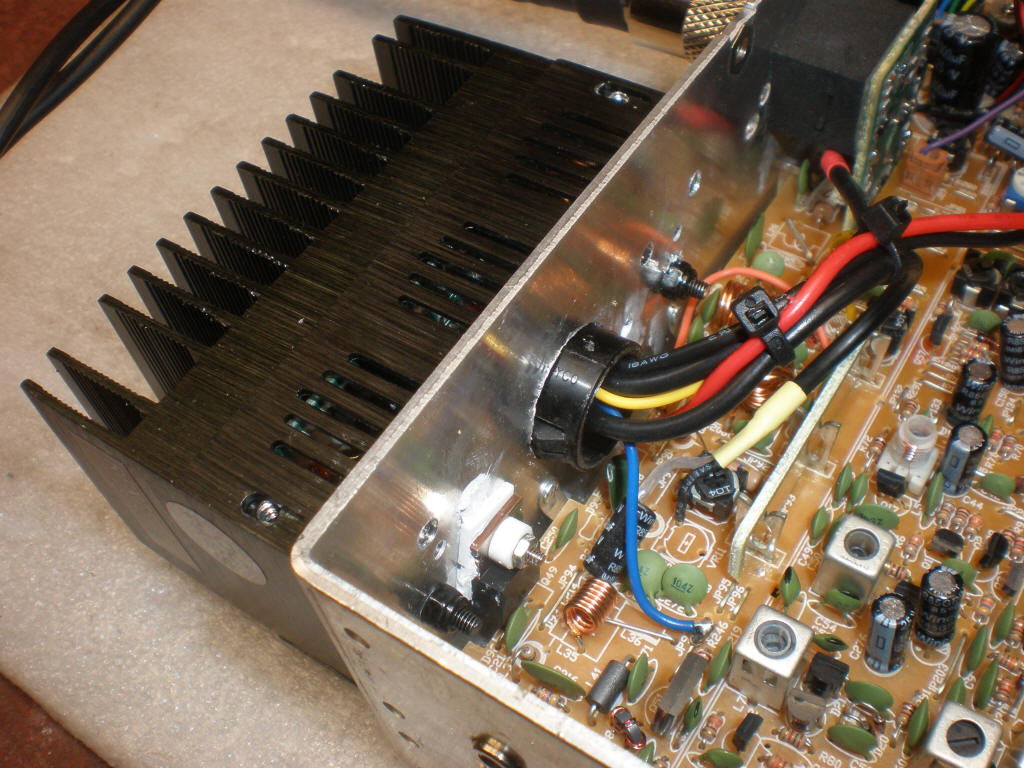

After the RX mods are done a frequency alignment to the synthesizer will be done in AM, USB and LSB modes individually. The receiver will be aligned maximum reception. The transmitter will have the final stages removed and a new and better section, called the RFX-75 installed and then output is aligned for maximum power and modulation.

AM: 5 - 15W carrier and 60-65W peak power

SSB: 50-55 W PEP

No alignments or tuning will bring the radio to any harmful levels.

Screwdriver Audio

All radio work will be performed by:

Features

RFX-75 RF output section.
Large, easy-to-read meter with 4 scales:
1. "S" Meter indicates up to 60 dB over S9
2. Modulation Percentage Scale for use on AM
3. Power Scale Calibrated for AM and SSB
4. SWR Scale
Automatic SWR Circuit (no complicated calibration procedure)
"Talkback" Circuit with On/Off Switch and Volume Control
Variable Power Output Control
Roger Beep with On/Off switch and LED Indicator
Galaxy Noise Filter for use on weak signals
High SWR Alert LED Indicator
Five-digit Frequency Display
+/- 1.0 kHz Receive Clarifier
Noise Blanker and Automatic Noise Limiter
AM, SSB and PA Modes
3-Position Tone Control Switch
Green/Red LED Indicator for RX/TX
LED Channel Indicator
Dimmer Control
Receive Gain Control
Mic Gain Control

... DX-959 Professional AM CB radio with RFX-75...

$450^.00

*Upgrades !!*
	Viagra 120 Channel expansion board Installed. Get 26.515 to 27.855 and discover the world of freeband DXing. Using tone switch for band control.
	Modify the Clarifier to control TX and RX frequency. Get enough slide to access between channels (zero raster like 27.450)
	RF Limited TRB-X3 Echo Installed. high performance echo/reverb. Front mounted echo control (Talk back moved to the back).

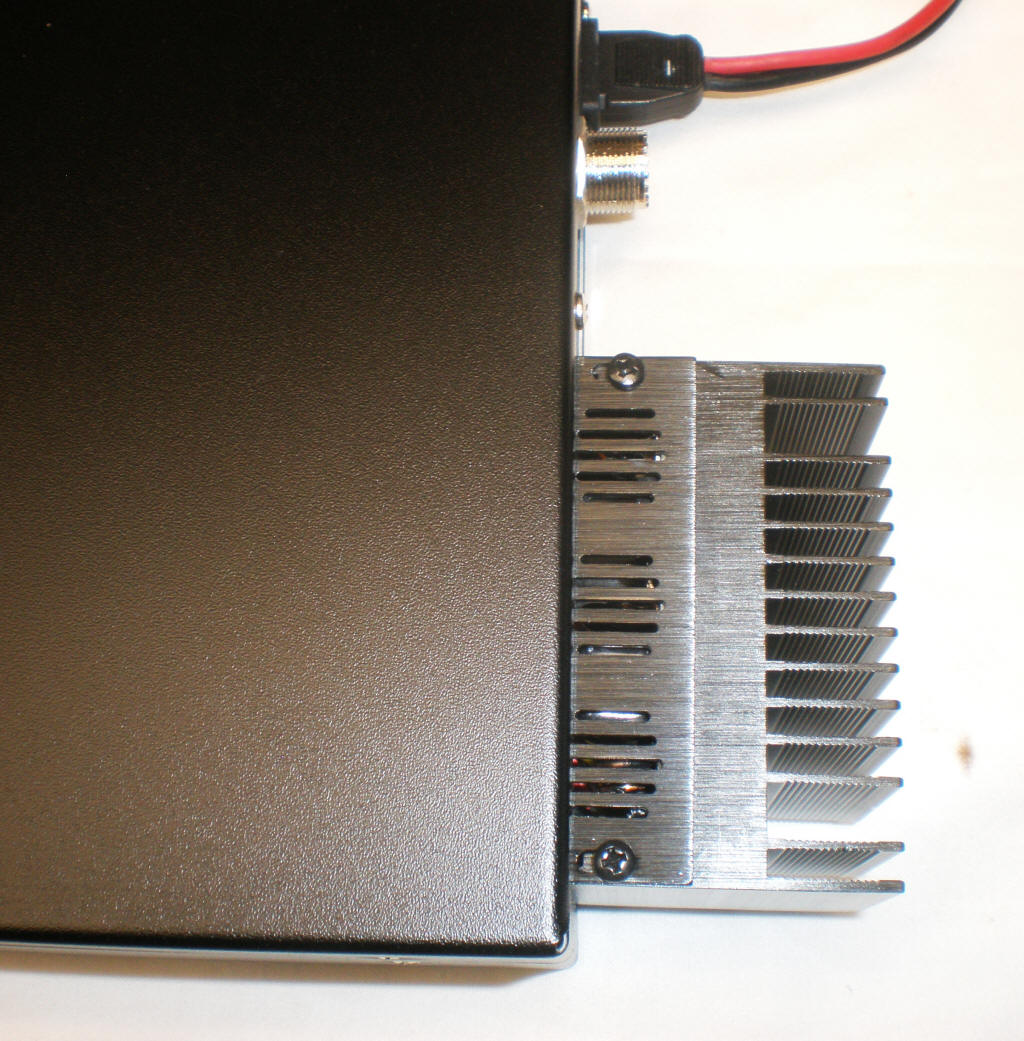

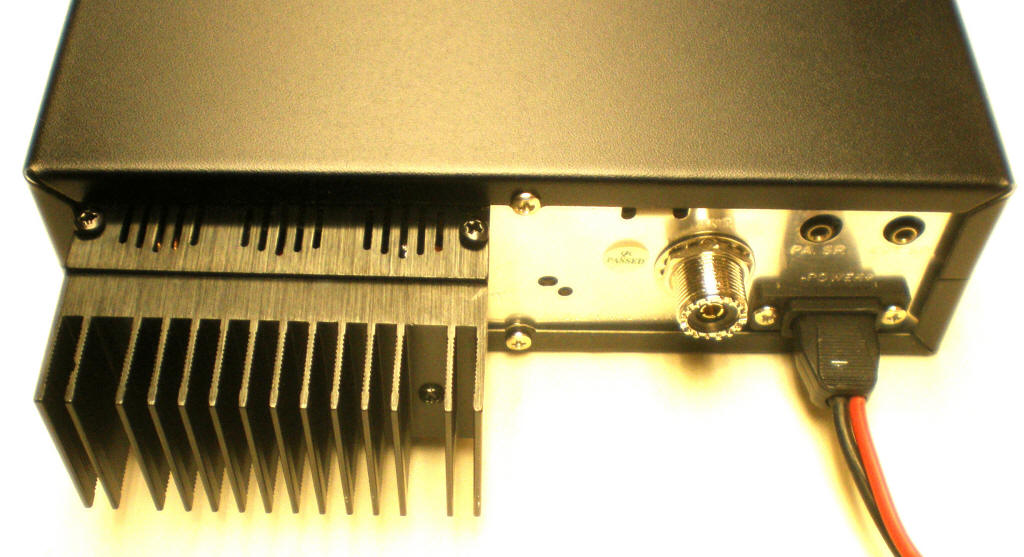

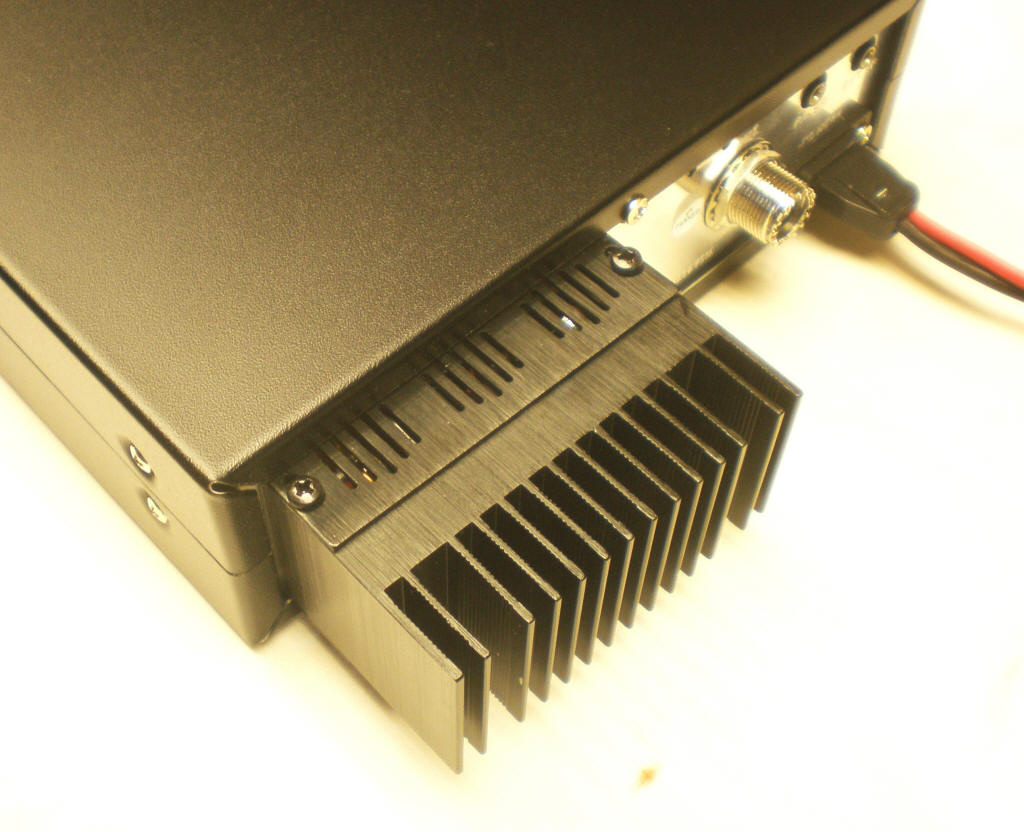

	POWERBAND RFX-75 Installed. Original Equipment Final Output Section with high performance low pass filter.
	Replace both detector diodes with low noise Schottky diodes increasing receiver sensitivity lowering the noise floor.
	Replace noise blanker diodes with low noise Schottky diodes to improve the reduction artificial electrical noise.
	Replace receiver 1st RF transistor for increased gain, increasing receiver sensitivity and again lowering the noise floor.
	I don't Replace any other AF or RF stage components. They don't need to be.
	I precisely tune the Receiver IAW The Factory Service manual Chapter 4.1.3 (8 steps).
	I precisely tune the Transmitter IAW The Factory Service manual Chapter 4.1.2 (9 steps).
	I precisely tune the Synthesizer IAW The Factory Service manual Chapter 4.1.1 (This is the frequency alignment and is 8 steps).
	I adjust the final and driver MOSFET gate voltage for proper RF bias.
	I AM an actual repair facility so I CAN take your repairs and you don't have to send it to Galaxy. I will warranty for a full 90 days and Galaxy warranty remains intact for 2 years.
	I use only NEW Galaxy radios, NO REFURBs like my competition.
	Radio complies all FCC part 95 Requirements
	IAW**= In Accordance With

Specifications

GENERAL:
Channels	40
Frequency Range	26.965 - 27.405 MHz
Emission	AM/USB/LSB
Frequency Control	Phase-Lock-Loop Synthesizer
Frequency Stability	0.001%
Temperature Range	-30^oC to +50^oC
Input Voltage	13.8V DC
Antenna Impedance	50 Ohms
Speaker Impedance	8 Ohms
Size	7-7/8"(W) x 11-1/4"(D) x 2-1/8"(H)
Weight	6 lb.
TRANSMITTER:
RF Power Output	AM 5 - 15W 60+W peak; USB/LSB 15 - 55+W PEP
Frequency Response	300 to 2500 Hz
Frequency Tolerance	0.005%
Spurious Emission	Better than -55dB
Unwanted Sideband	Better than -55dB
RECEIVER:
Sensitivity for 10dB S+N/N	AM: 0.5uV; USB/LSB: 0.25uV
Squelch Sensitivity	Less than 0.5uV
Audio Power Output	2W @ 10% distortion
Image Rejection Ratio	-65dB
AGC Figure of Merit	100mV for 10dB Change in Audio
Clarifier Range	+1.0 KHz
