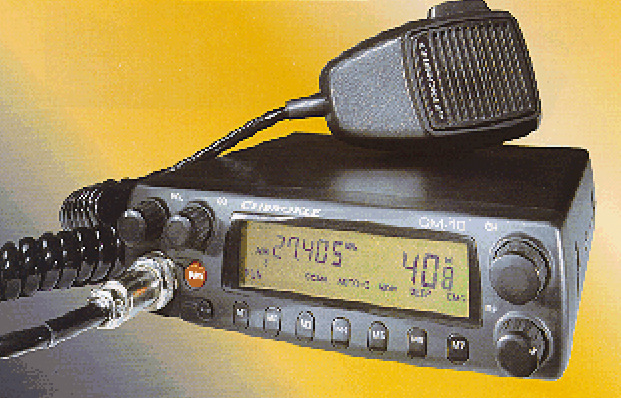

Cherokee CM-10

Sorry recent word from our sources say that all deals fell through and there may be no Cherokee radios re-released. :(

*Optional Accessories*
	Tune-up. (perform a tune-up to radio to increase power, audio and performance)	$25
	Tune-up and frequency conversion. (Modified for expanded frequency coverage / more channels)	$35
	Astatic D104-M6b Amplified microphone. (wired for this radio with a four pin plug and a battery installed)	$70
	DM-452 Echo Amplified microphone (wired for this radio with a 4 pin plug)	$45
	Add a Small External Speaker (plugs into back of the radio for improved sound)	$12
	Add a Large External Speaker (plugs into back of the radio for improved sound)	$18

GENERAL

Channels: 40

Frequency Range: 26.965 to 27.405 MHz

Frequency Control: Phase Locked Loop (PLL) synthesizer

Frequency Tolerance: +\- 0.001%

Operating Temp: -10 C to +60 C

Microphone: Plug in type: Dynamic

Input Voltage: 13.8V DC

Size: 5.75"W x 6"D x 1.75"H

Weight: 2.5 lbs.

Antenna: UHF, SO-239

TRANSMITTER

Power Output: 4 Watts

Modulation: Class B Amplitude Modulation

Output Impedance: 50 Ohms

Mic. Sensitivity: 3.5 mv @ 50% modulation

RECEIVER

Sensitivity: 0.7mv for 10dB S/N

Image Rejection: Greater than 60 dB

Audio Output Power: Greater than 3 watts (10% distortion)

Freq. Response: 300 - 3000hz

Internal Speaker: 8 Ohms

Specifications and features are subject to change without notice.
