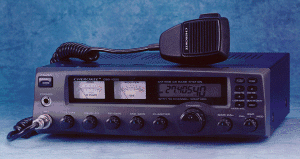

Cherokee CBS-1000

OPEN
TUE - SAT
9-4 EST

CAT Enterprises

Tech Library	Shopping Cart	Contact Us
CB Repair		Items on eBay

URGENT !!! --- Our shopping cart is OLD and FAILS many web browsers and how they handle Java. We are very sorry if this is also you. PLEASE call us to order, send an email , send your phone number, send a Yahoo message

, ANYTHING but please DON'T go away.

Features

40 channel AM, 40 channel USB, 40 channel LSB operation

Liquid crystal "Information Center" with complete operating information including frequency readout

4 watt AM power output, 12 watt SSB power output

10 NOAA weather channels, including International

Course/fine clarifier controls

Mic gain/RF gain/Squelch control

Dual measurement meters

SWR calibration

Selectable noise blanker and ANL

5 preset memory locations

Auto channel scan auto memory scan

Many additional features

*Optional Accessories*
	Tune-up. (perform a tune-up to radio to increase power, audio and performance)	$25
	Tune-up and frequency conversion. (Modified for expanded frequency coverage / more channels)	$35
	Astatic 878DM Amplified DESK microphone. (wired for this radio with a four pin plug and a battery installed)	$65
	Galaxy Echo Amplified DESK microphone. (wired for this radio with a four pin plug and a battery installed)	$99
	Astatic D104-M6b Amplified microphone. (wired for this radio with a four pin plug and a battery installed)	$70
	DM-452 Echo Amplified microphone (wired for this radio with a 4 pin plug)	$45
	Add a Small External Speaker (plugs into back of the radio for improved sound)	$12
	Add a Large External Speaker (plugs into back of the radio for improved sound)	$18

GENERAL

Channels: AM40CH. USB40CH. LSB40CH. WX(Receiver)10CH.

Emission Type: USB. LSB(A3J). AM(A3)

Jacks: Antenna, Mike, External Speaker, Head Phone

Display: LCD Panel, SRF/Analog Meter, MOD/SWR Analog Meter

Frequency Range: 26.965MHz to 27.405MHz

Supply Voltage: 120V AC

Accessories: Plug-in Mike, Mike Hanger & Screw, Manual.

Antenna Impedence: 50 Ohm

Speaker Impedence: 4-8 Ohm

Operating Temp. Range: -20 degrees C to 50 degrees C

AM TRANSMITTER

RF Power Output: AM 4 Watts

Modulation: High and Low level, Class B

Spurious & Harmonic Suppression: More than 60 dB

Mic Sensitivity 50% Modulation: 2mV

A.M.C. Dynamic Range: More than 40 dB

Power Drain: 13.7 VDC, 1.5A

SSB TRANSMITTER

RF Power Output: 12 Watts PEP

Carrier Suppression: More than 50 dB

Unwanted Side Band Suppression: More than 50 dB

Harmonic Suppression: More than 60 dB

Power Drain: 13.7V DC, 2.5A

RECEIVER

Sensitivity:
AM:
SSB:
Weather: 0.5 uV for 10dB (S+N)/N
0.25 uV for 10dB (S+N)/N
1.0 uV (12dB SINAD)

Image Rejection: More than 40 dB

IF Rejection: 60 dB

Adjacent Channel Rejection: 60 dB

Cross Modulation: 50 dB

Squelch Range: Adjustable. Threshold less than 1uV

RF Gain Control: 30 dB

Clarifier Range: Coarse, +/- 5KHz; Clarifier, +/- 2.5 KHz

Audio Output Power: 3 Watts @ 10% THD; 8 ohms

Current Drain: Maximum: 1.0 AMP, No Signal: 0.5 AMP

Specifications and features are subject to change without notice.
