  Orders with radio work are delayed 3 - 14 days
PNI

HP7120 and Extra 48 Antenna

PNI Escort Radio HP 7120 and exta 48 Title

Download Manual
CB PNI Escort Radio HP 7120 ASQ, RF Gain, 4W, 12V and CB PNI Extra 48 antenna with magnet included, 45cm, SWR 1.0

7120

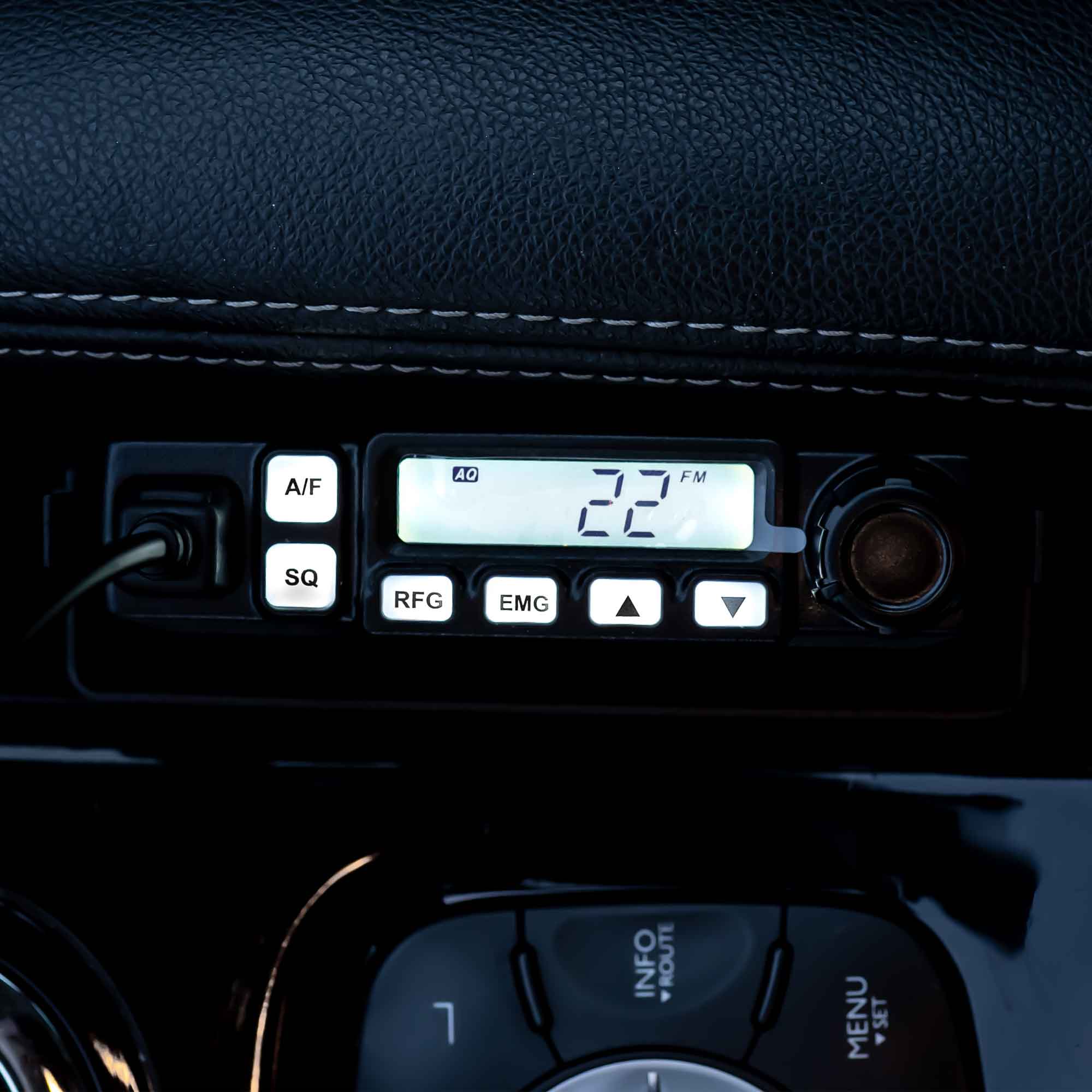

Small size The small size (only 110 x 120 x 25 mm) enables the station to be positioned even in the smallest of spaces without the need for a real installation, as in the case of a classic CB.


Double squelch, adjustable and digitally automaticDouble squelch, adjustable and digitally automatic The PNI Escort HP 7120 is equipped with a digital automatic squelch. The manual and automatic Double Squelch module offers settings on 28 and 9 levels together with the RF Gain function for a finer adjustment of the reception.






  • Working frequency 26 - 28 MHz
  • AM/FM

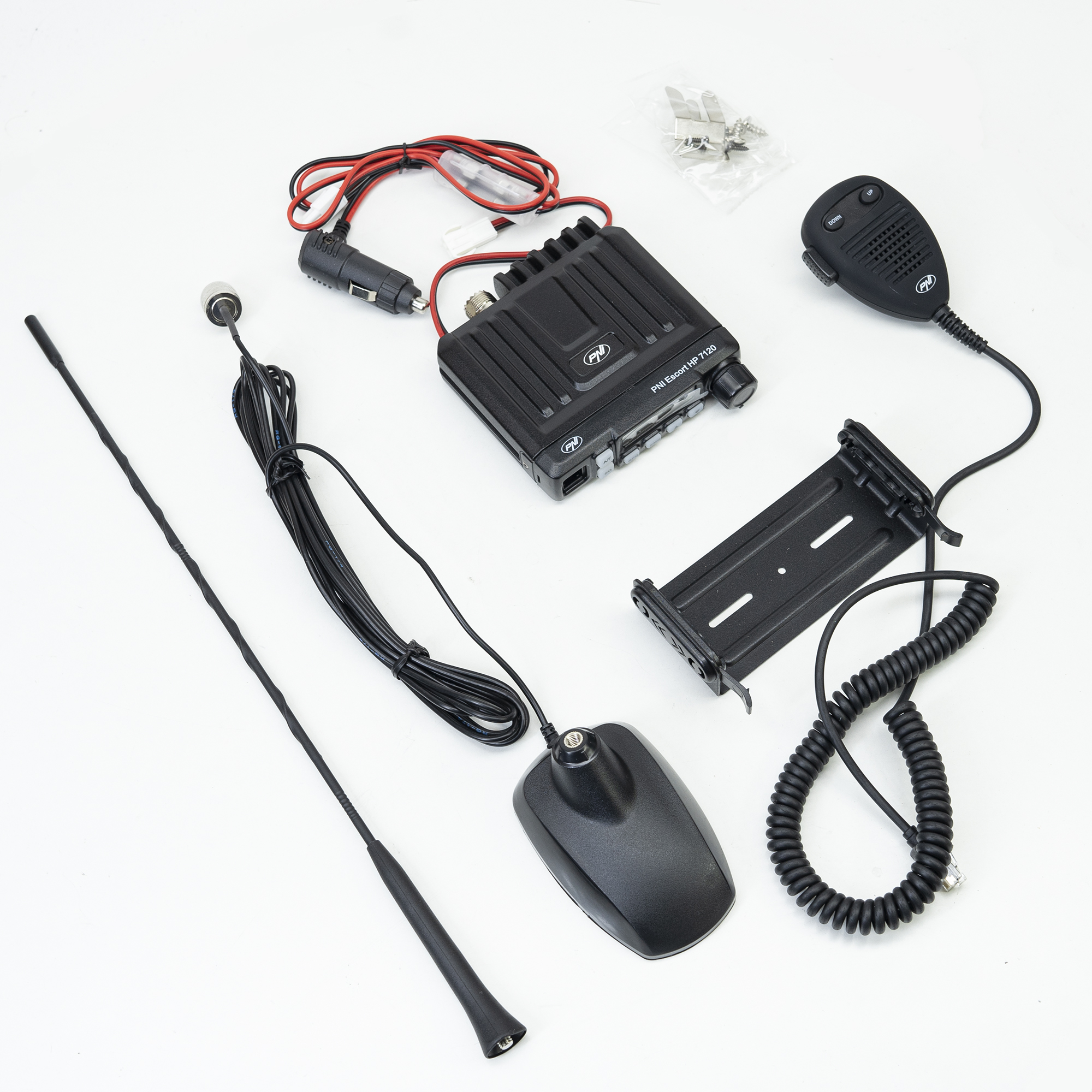

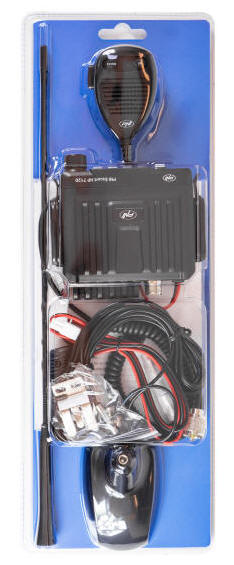

  • HP 7120 radio station and an Extra 48 antenna with magnet
  • 28 SQ levels,
  • 9 RF gain levels and
  • 9 digital ASQ levels.
  • Minimum SWR in the center of the band
    less than 1.2:1
  • Antenna Length 54cm (antenna)
  • impedance 50 Ohm
  • Antenna Material Fiberglass
  • Connector PL259 Cable length 4m
  • Polarization: vertical
  • Operating temperature -26 ° C ~ + 60 ° C
  • Warranty : 24 Months (Manufacturer)

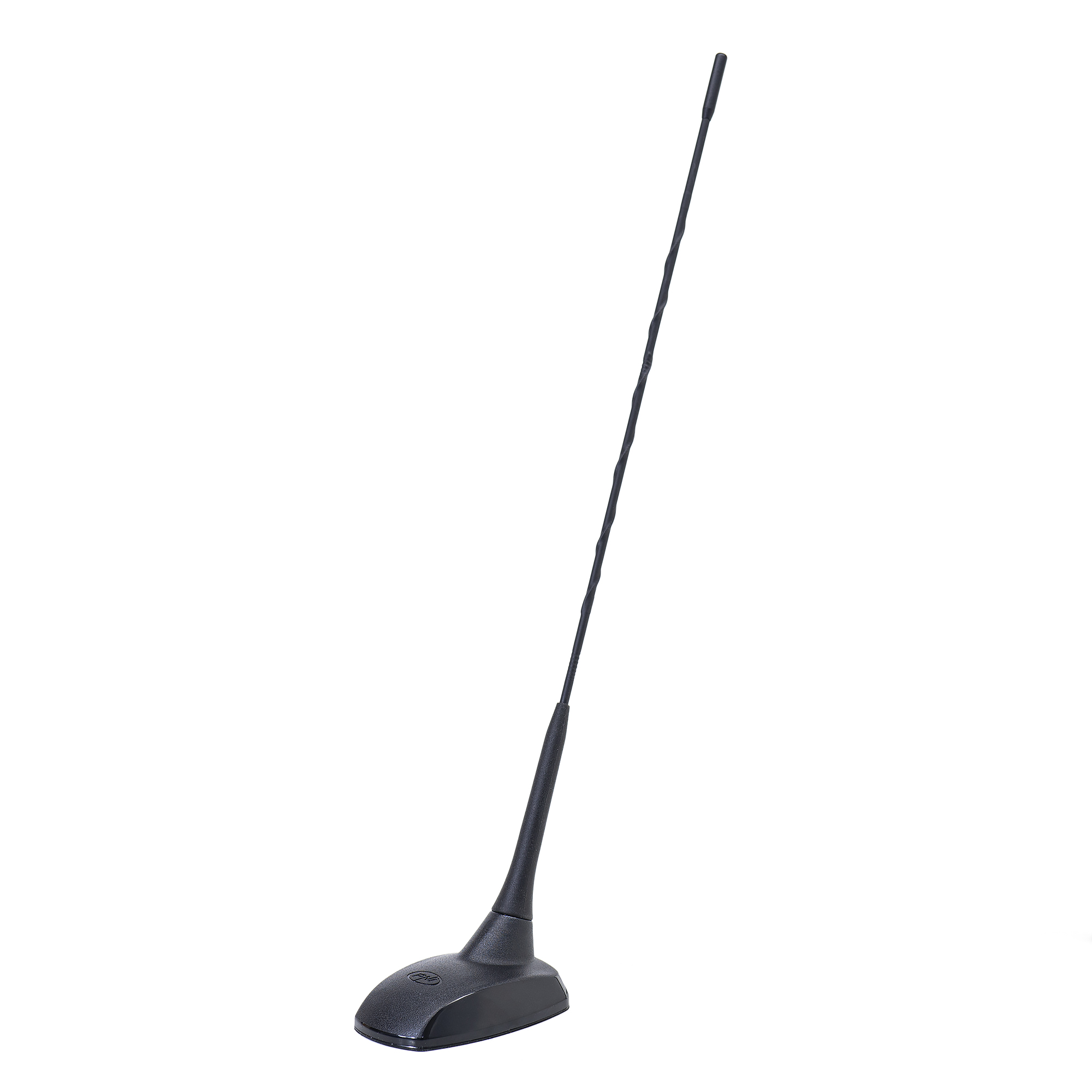

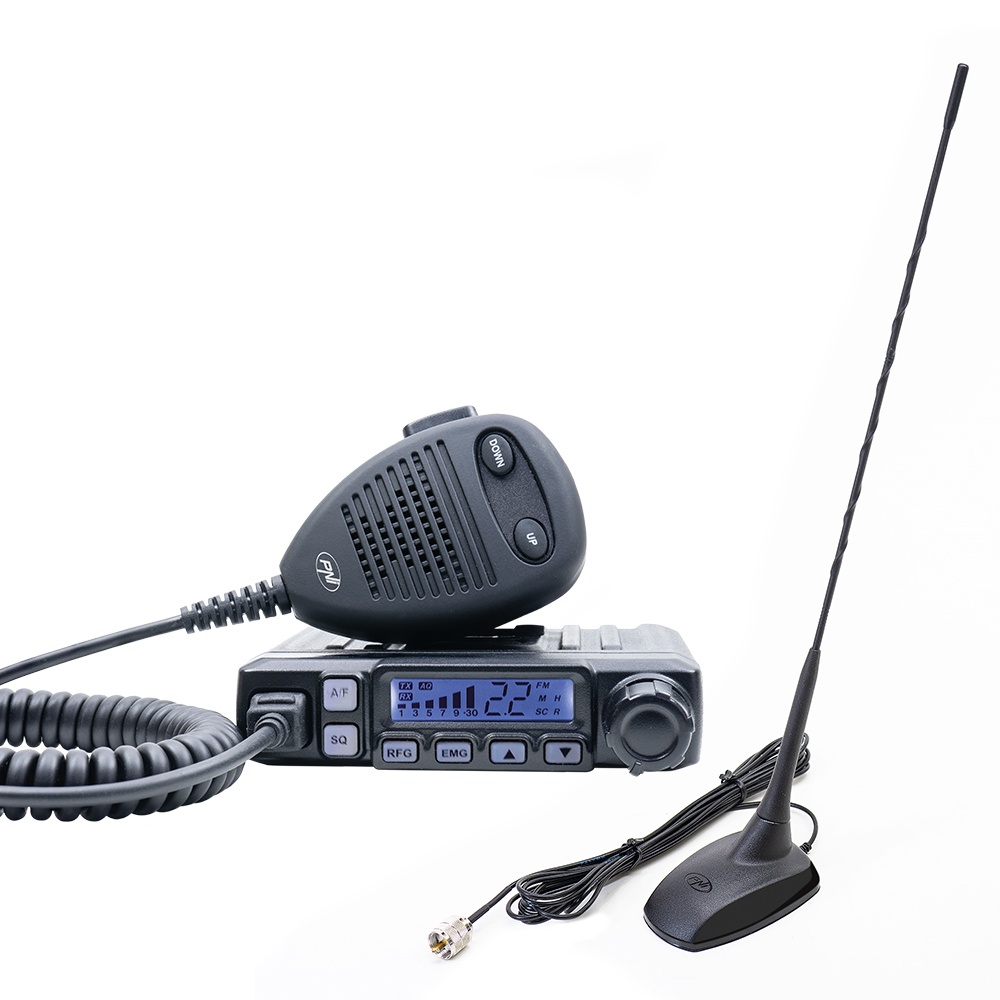

   HP7120 and Extra 48 Antenna  7120 and extra 48PNI Extra 48 antenna

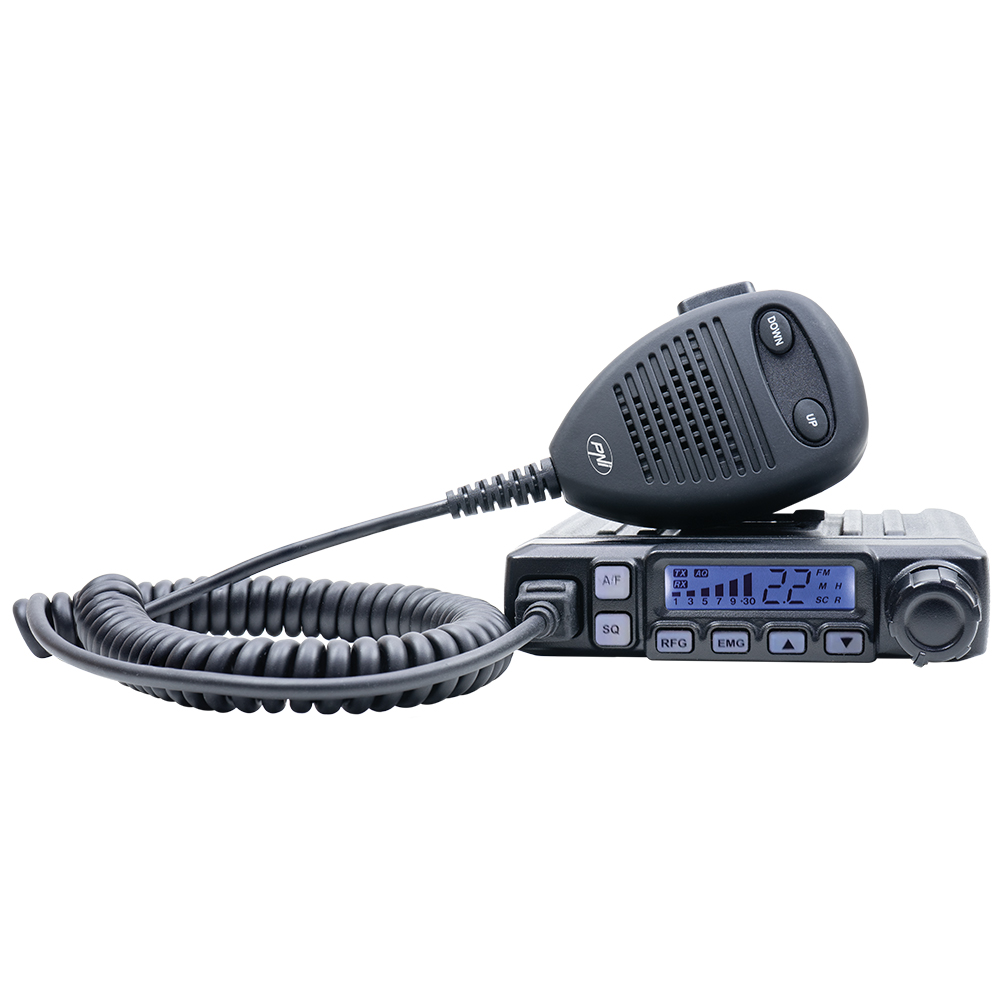

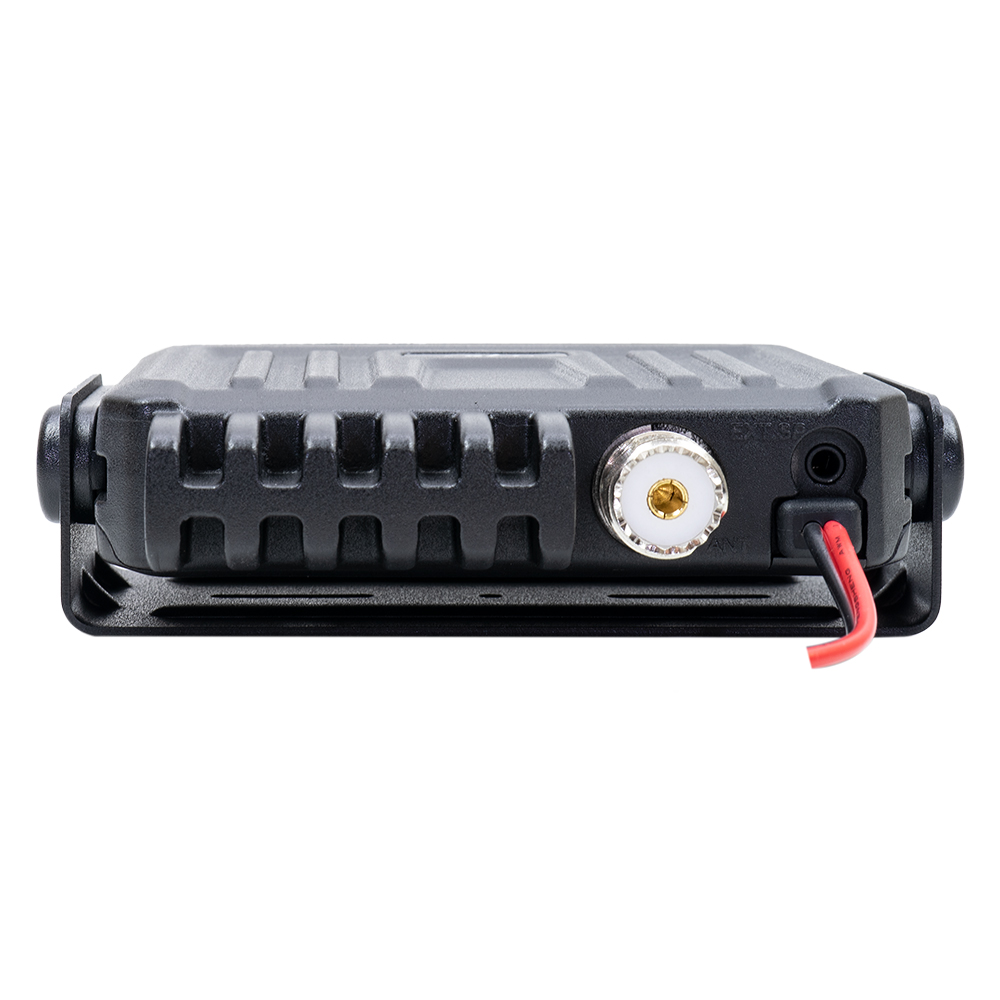

PNI HP7120 and extra 48    PNI HP7120  PNI Etra 48 antenna

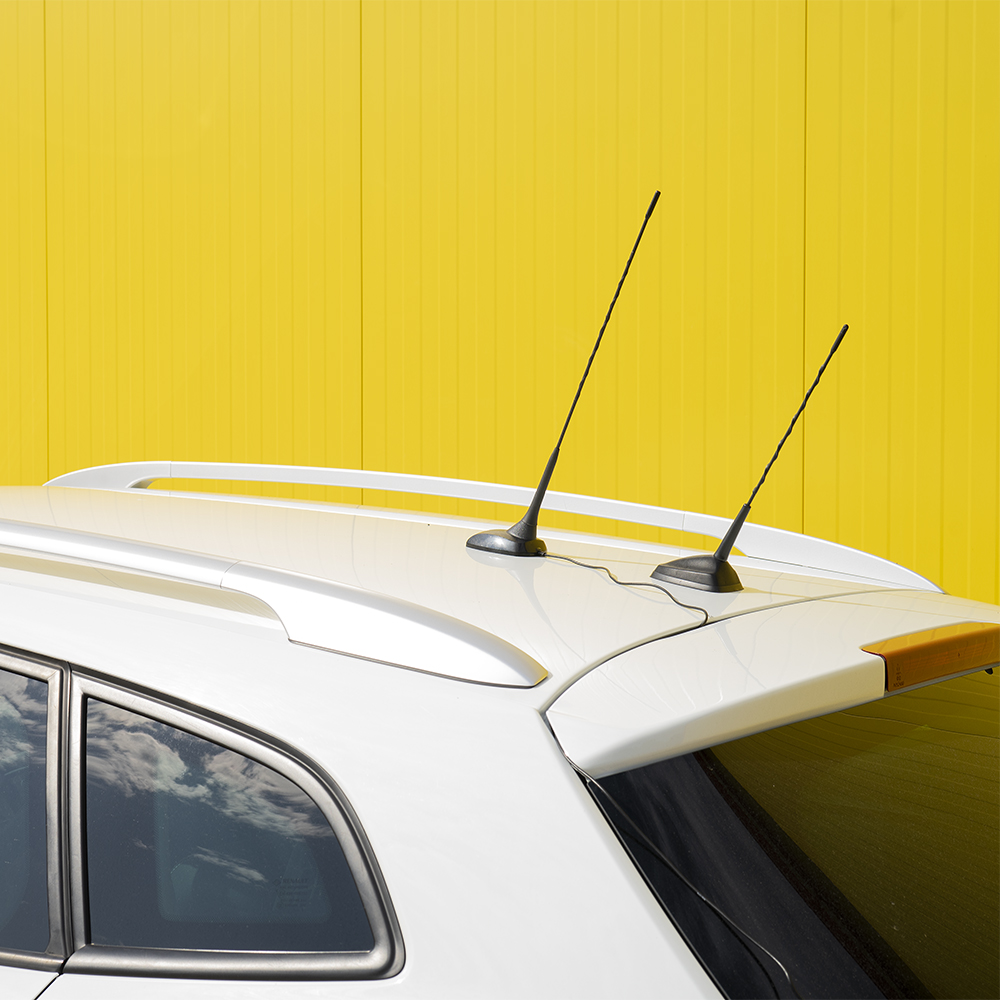

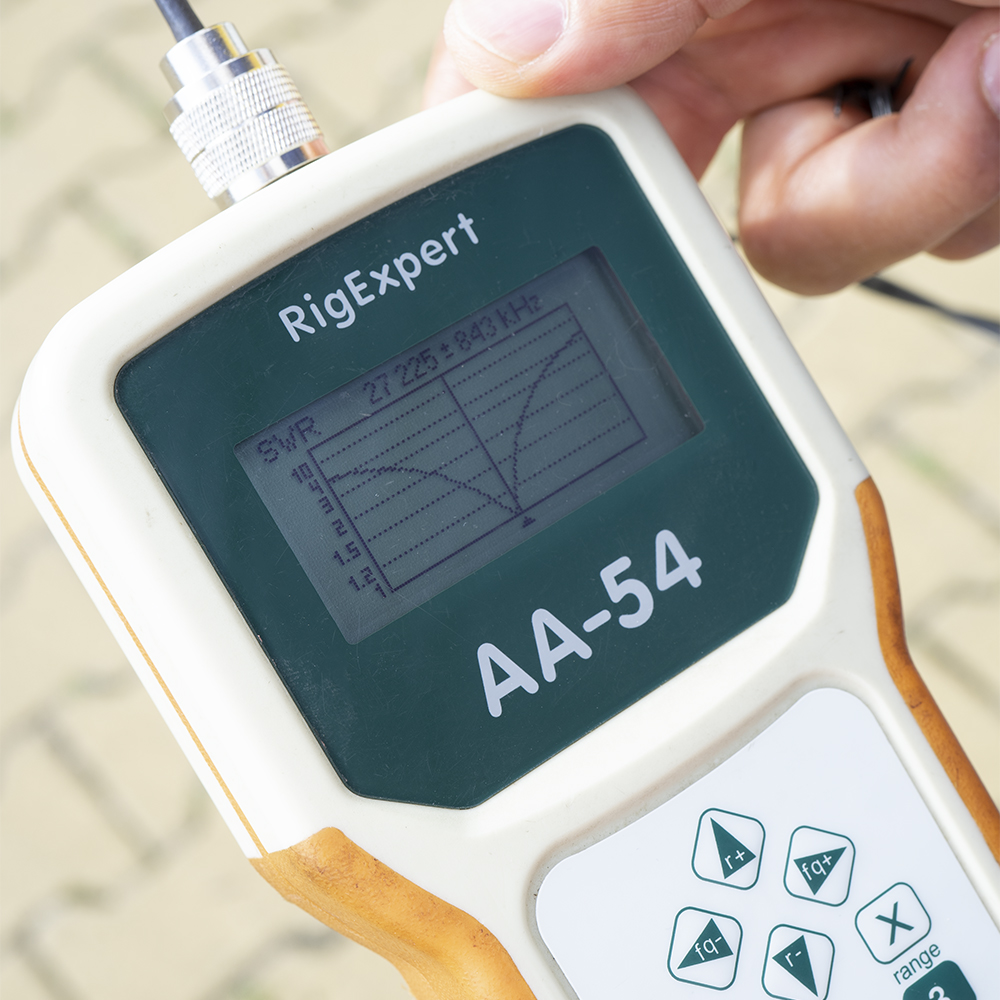

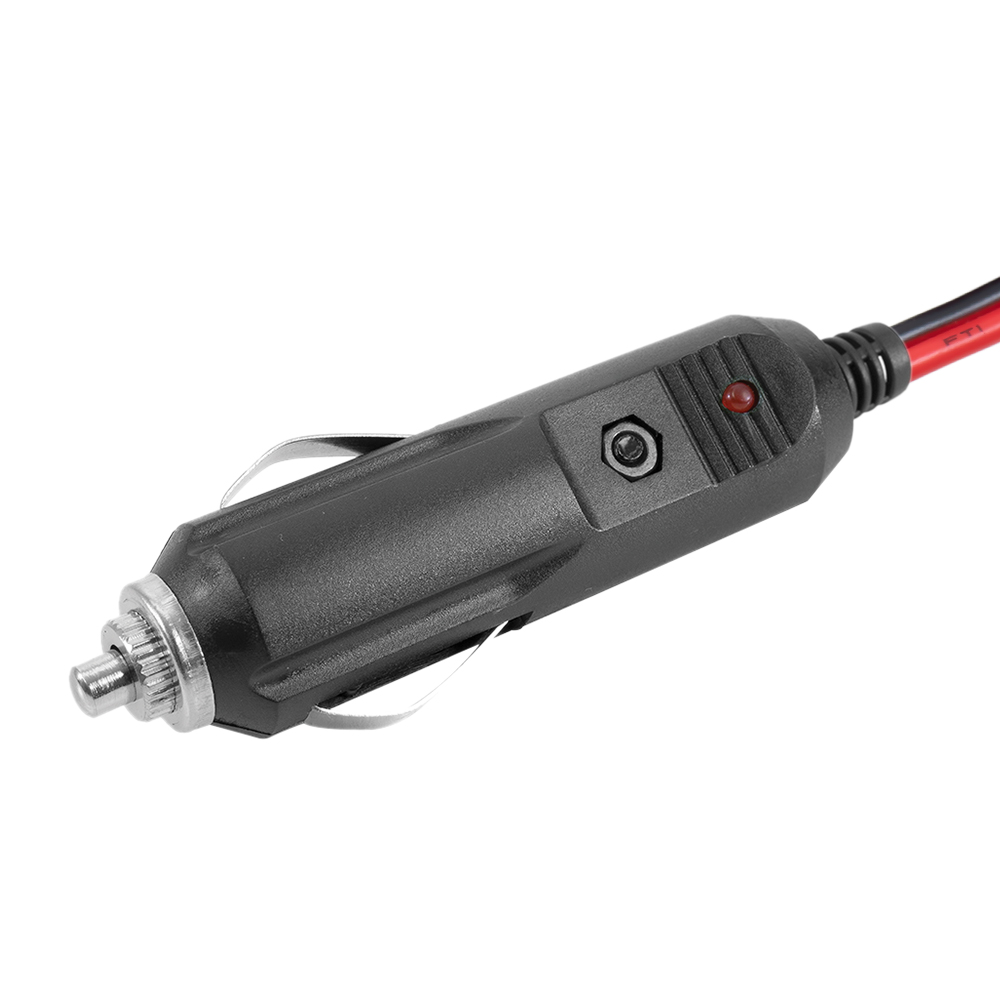

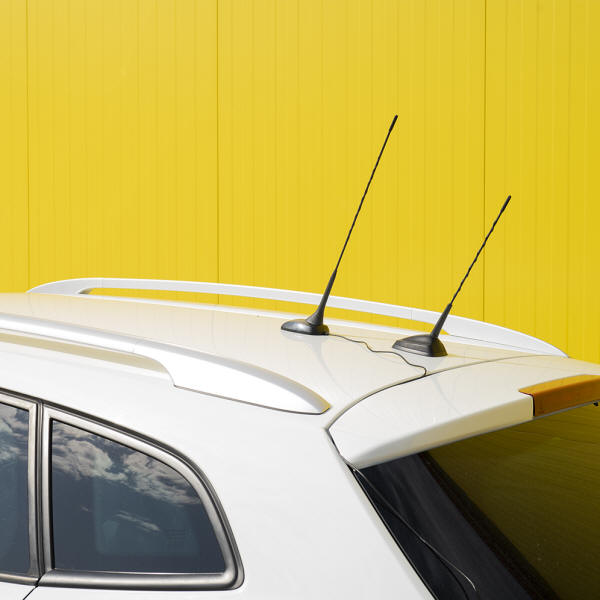

PNI Extra 48 Antenna   PNI Lighter Plug  PNI extra 48 Rig Expert


PNI Mic wiring for RJ45
              Microphone Wirring diagram




The HP 55 PNI Escort The HP 7120 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.
Escort HP7120 Radio +
Extra 48 Antenna		 $99.50

Optional Accessories
Dead Key
 Tune-up. perform a tune-up to radio to
optimize power, audio and performance		 $19
Wireless Bluetooth Microphone.
 (The microphone and dongle can communicate wirelessly with the CB radio station up to a maximum distance of 10m )		 $39
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 14w 6w 20w
* The most informative meter and the one we use.



General features of the radio station

Broadband type AM-FM
Frequency 26.965-27.405 MHz
channels 40 AM / FM
Microphone type RJ45 plug
Power speaker audio 1 W
Sensitivity (20dB SINAD) greater than 1 µV (AM / FM)
Emission power 4 W
Modulation 80 - 90%
Mounting 1 DIN Yes
feeding 12 V
Consumption 2A maximum
Dimensions / Weight 110 X 120 X 28/385 g
Special features of the radio station
Adjustable ASQ Yes, 9 levels
SQ - Squelch Yes, 28 levels
Scan channels Yes
RF Gain Yes, 9 levels
Lock the keyboard Yes
Multicolored screen Yes
Emergency channel button 9/19 Yes
Operating temperature -26 C - +60 C

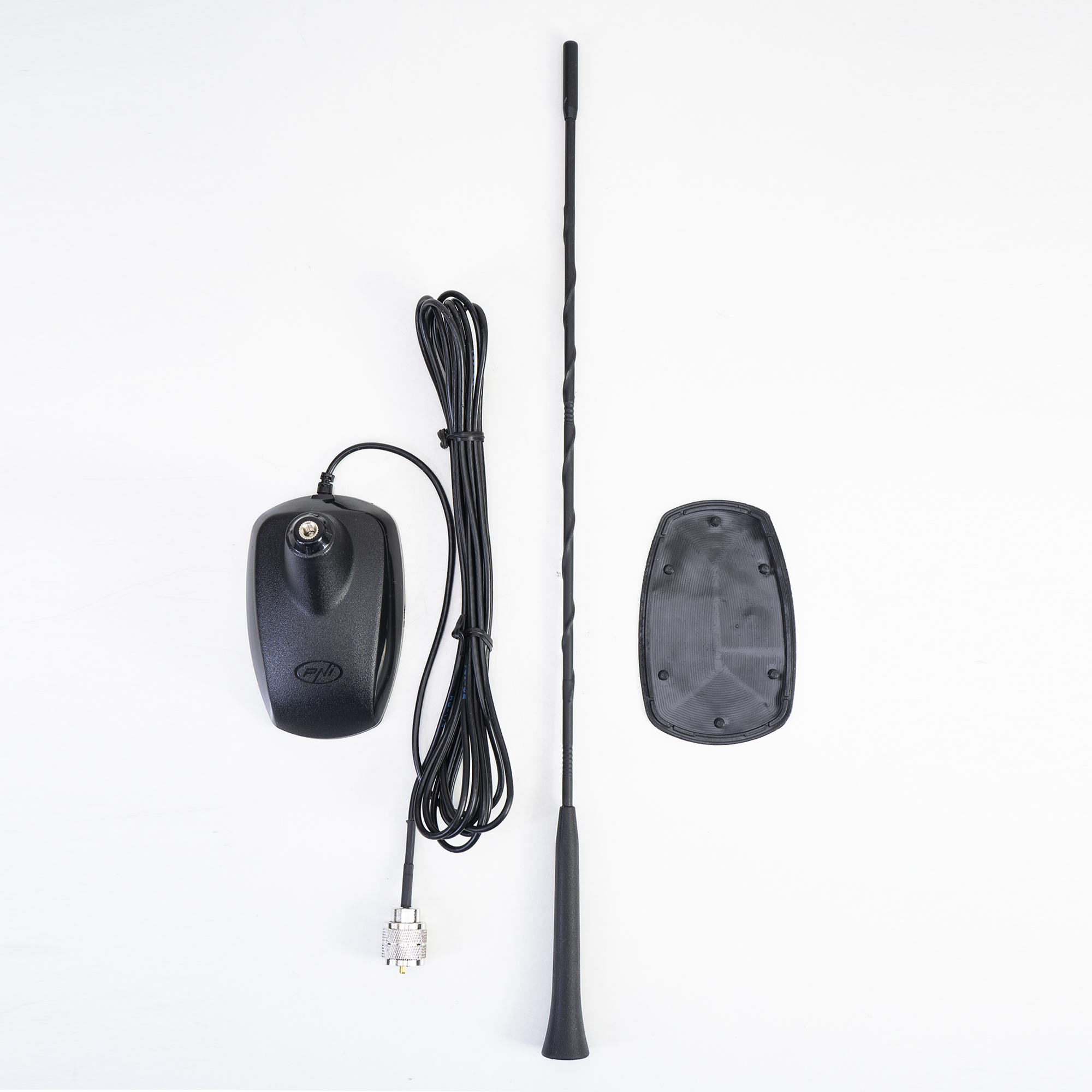

Features radio antenna
Working frequency 26 - 28 Mhz
Maximum applied power 150 W
Minimum SWR in the center of the band 1.0
Antenna length 45 cm
Working distance 10 km
impedance 50 Ohms
Material Fiber glass
Tip connector PL259
Magnetic base included Yes
Magnetic base diameter 103 x 66 x 40 mm
Cable length 4m
