40-Channel CB radio

Midland

75-822


Download Manual

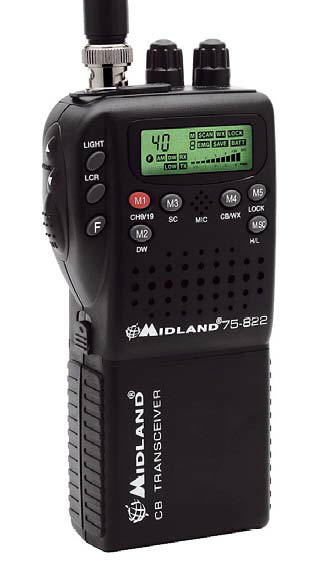

The Midland 75-822 represents the state-of-the-art in high-tech engineering. It is designed
for 40 Channel Citizen Band operation, in a compact package that is big on
performance. It is a quality piece of electronic equipment, skillfully constructed with
the finest components. The circuitry is all solid-state and mounted on a rugged
printed circuit board. The 75-822 is designed for reliable and trouble-free
performance, either as a portable or mobile CB.



Features

  • Memory channel scan
  • 10-channel weather/all hazard receiver
  • Emergency channel 9
  • 5 memory channels.
  • Last channel recall
  • Large, lighted LCD readout
  • Built-in electret microphone
  • Two battery cases (1) for Rechargeable batteries AND (1) Alkaline.
    These are battery cases only, no batteries included.
  • Flexible antenna

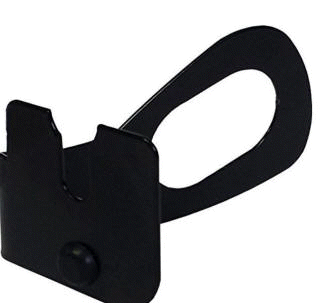

  • Metal belt clip
  • Carry strap
  • AC charger & 12V adapter
  • Full Manufacturer's Warranty


You Get all three adapters:

1) Alkaline Battery Pack
2) Rechargeable Battery Pack

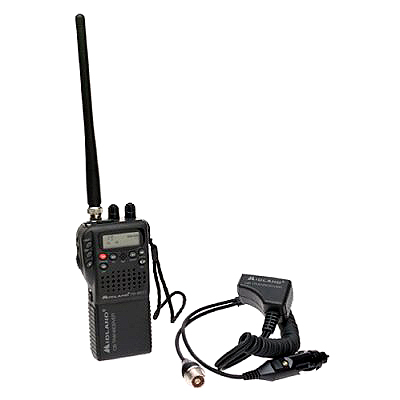

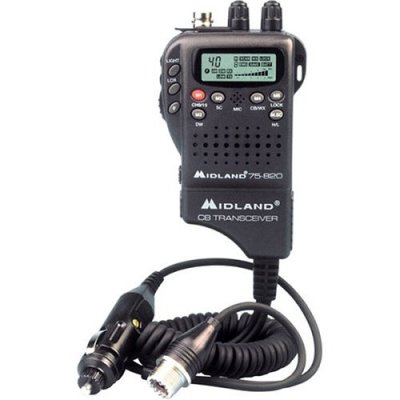

3) Mobile adapter for external power and
external antenna.
















Comes with Radio and these in the box:

SOLD

OUT

... NEW 75-822...

$84.50




Optional Accessories
 Tune-up. (perform a tune-up to radio to increase power, audio and performance) $25
 Tune-up and modify for 120 channels. (Operate from 26.515 to 27.855) $30
 Longer Antenna HT-1 (27" Metal telescopic) $22
 Longer Antenna HT-2 (27" Rubberized Flexible) $29
 SPM-1 Speaker Mic Speaker/ Lapel  microphone. (ready with a plug for this radio ) $19
Open Face
Closed Face
 Motorcycle Helmet Kit (plugs into top of the radio) $49

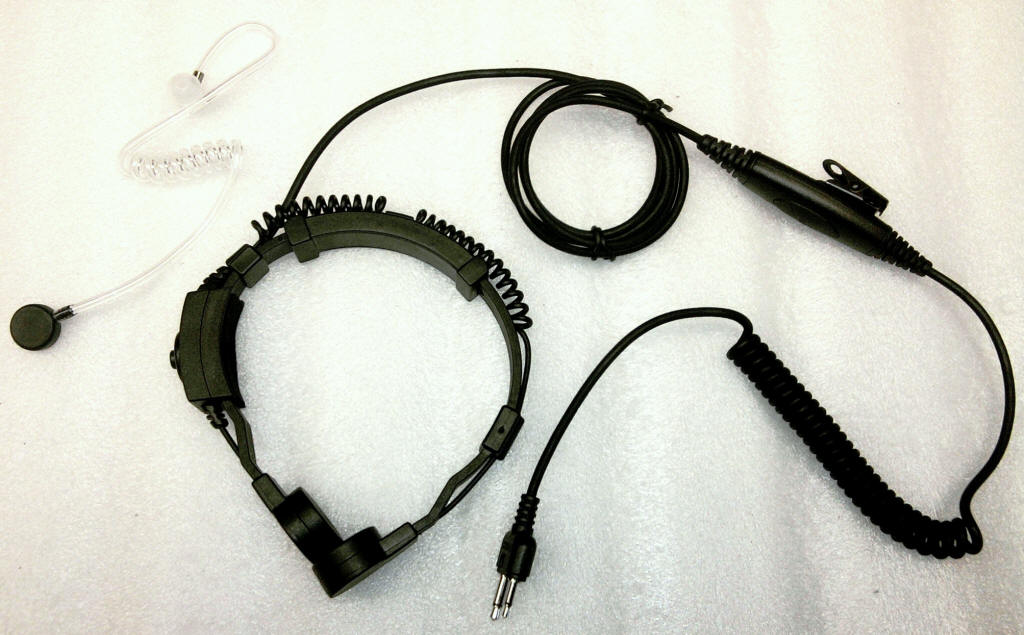

Throat microphone- Military Style
(plugs into topof the radio)

$54


Earbud Microphone
(plugs into top of the radio)

$24
 Astatic D104-M6b Amplified microphone.
(wired for the radio and a Duracell battery added)
(Special HT wiring)
$59
 Astatic RD104E Amplified microphone.
(wired for the radio and a Duracell battery added)
(Special HT wiring)
$62
 Add a Small External Speaker
(plugs into top of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into top of the radio for improved sound)
$18

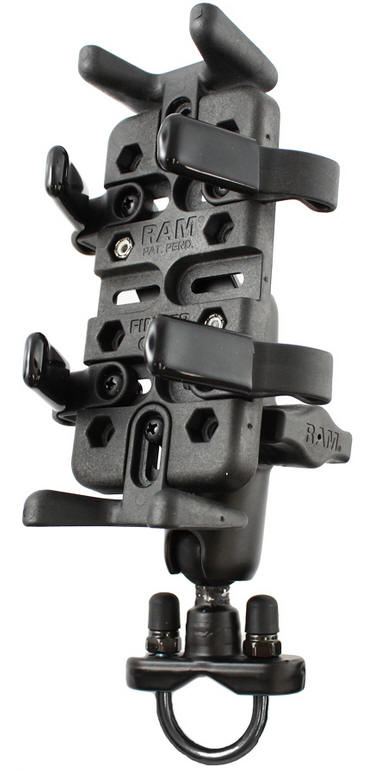

Customer recommended RAM handlebar mount.

(NOT sold here)

$54









GENERAL

Frequency range 26.965-27.405 MHz
Channels 40
Modulation type AM
Antenna impedance 50 Ohm
speaker 8 Ohm
Microphone Electret
Unit Weight (lbs) 0.4
Shipping Weight (lbs) 4
Unit Dimensions (H x Wx D) in 3.5 x 2.75 x 1.5
Package Size (H x Wx D) 9.5 x 6.75 x 2.38
Power Requirement 6AA
Operating Temperature Range -30 +50 C
RoHS Compliant  Yes



The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT sound great with a stock mic on it.
 If your CB is more than a tool for work, you NEED to upgrade your microphone.  My personal favorites are the Astatic 636L and RD104E.



If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.
