 Orders requiring technical work are shipped in about 7-14 days.


W-5000
Parts Kits
Base load and Trucker versions



Parts listing below is for information only
and individual parts shown are not sold separately.
All parts availability is via the Parts KITS only.

Base Load

Wilson Base Parts Identification
Coaxial Cable:  Part #200178 ( black only ).
(original full size photo lost)

Magnetic Mount

Magnet Cover: Part #900108 - Black Only

Wilson Mag Mount Parts Identification

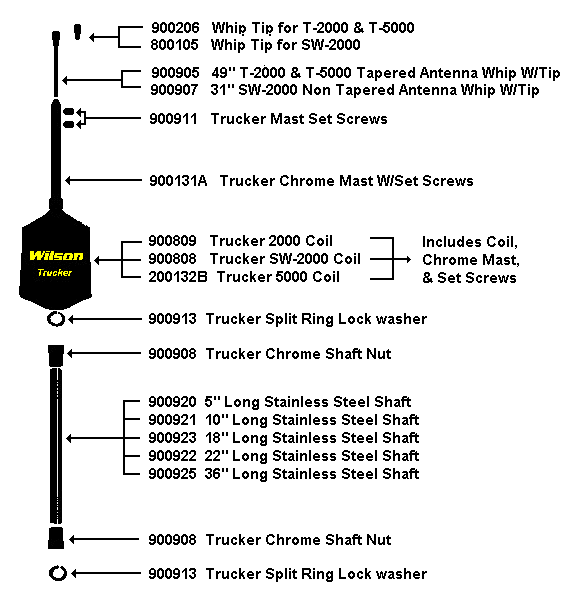

Trucker Series

Wilson Trucker Parts Identification



Parts listing below is for information only
and individual parts shown are not sold separately.

PART #

PART DESCRIPTION

880-200160 Coil W/mast & Set Screw (BK or WH)
880-900501 Mast Set Screws
880-900701 Rubber Coil Washer Base (O-Ring)
880-900209 Chrome Mast with Set Screws.

880-900901

62" W-1000 and W-5000 Tapered Antenna Whip W/Tip
880-900906 66" W-1000 and W-5000 Extra Long Tapered Antenna Whip W/Tip
880-900801 Allen Wrench for W-1000, 2000, W-5000, W-500 and the Little Wil.

Parts Kits available for sale

STATUS

DESCRIPTION

INCLUDES

PRICE EACH

W1000 HARDWARE BAG
UPC #: 0 20126 90913 1

880-901000

WEATHER CAP, PL259 ADAPTOR, HEX KEY

$14.99

W1000/W5000 MAGNET MOUNT REPAIR KIT
UPC #: 0 20126 90916 2

880-910010

MAST, SET SCREWS, STAR WASHER, PANEL NUT, MYLAR SET, RUBBER COIL WASHER

$15.99

W1000/W5000 ROOF MOUNT REPAIR KIT
UPC #: 0 20126 90917 9

880-910020

MAST, SET SCREWS, PANEL NUT, RUBBER COIL WASHER, STAND OFF, ROOF GASKET

$15.99

W1000/W5000 TRUNK MOUNT REPAIR KIT
UPC #: 0 20126 90918 6
DOES NOT COME WITH CHROME TRUNK LIP "880-909096" shown in chart below...I don't know why...I guess because it is a "repair kit", not a -"make a trunk mount from a roof top" kit.

880-910030

MAST, SET SCREWS, PANEL NUT, RUBBER COIL WASHER, STAND OFF, TRUNK GASKET

$15.99



Parts listing below is for information only
and individual parts shown are not sold separately.
All parts availability is via the Parts KITS only.



PART #

PART DESCRIPTION

200177 Black Magnet Mount W/Cable
200175 Roof Top Mount Assembly (BK only)

  200174 Solder-Tip PL259 W/Reducer
900502 Trunk Mount Set Screw
880-900104-N Plastic Stand Off (BK or WH)
900706 Roof Mount Gasket
900704 Trunk Mount Gasket
909096 Trunk Lip conversion kit.
For use with Roof top models, not suitable for magnetic conversion. For magnetic conversion you will need the roof top kit and trunk mount.
500127 Magnet polyester bottom cover set (2 pc)
