 Base
Sation Antenna
|
 |

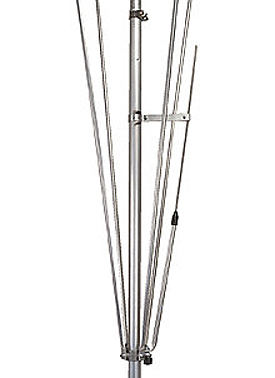

Vector 4000
CB Radio Base Station,
Omni-directional
|
 Download Manual |
- CB & 10m Base station antenna
- Omni directional
- Tunable by whip length adjusting
- High power handling capability
- Made of aluminum alloy 6063 T-832
- UP-GRADE: Lower radiation angle for the best DX,
new tuning possibility
|
|
|
OUT |
...Vector
4000... |
$199.50 |
|
|
|
Electrical Data |
|
Type: |
3/4 λ
coaxial J-pole |
|
Frequency range: |
tunable from 27 to 28.5 MHz |
|
Impedance: |
50Ω
unbalanced |
|
Radiation (H-plane): |
360� Omni
directional |
|
Polarization: |
vertical |
|
Gain: |
2 dBd,
4.15 dBi |
Bandwidth
@ SWR ≤ 2: |
≥ 1400 KHz (120 channel) |
| SWR
@ res. freq.: |
≤ 1.2 |
| Max. power: |
1000 Watts (CW) continuous
3000 Watts (CW) short time |
|
Feed system / position: |
Gamma match / base |
| -Connector: |
UHF-female |
| |
|
|
Mechanical Data |
| Materials:
|
Aluminum, Steel, Nylon |
|
Wind load / resistance: |
329 N at 150 Km/h / 130 Km/h |
|
Wind surface: |
0.29 m� |
|
Height (approx.): |
8480 mm |
|
Weight (approx.): |
4700 gr |
|
Mounting mast: |
�
35-42 mm |
| Shipping Size: |
57" x 5"x 6"
13lbs |
|
|
