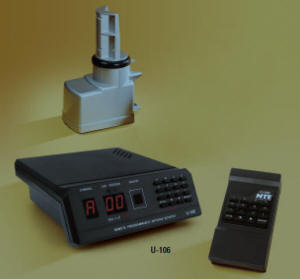

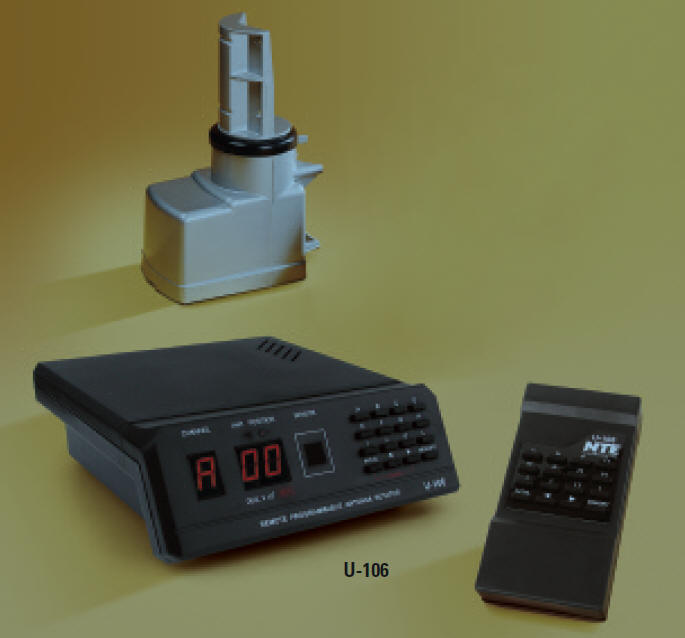

U-106
Antenna Rotator and
Control Box w/ remote
Discontinued
|
|
 Download Manual
|
|
- Completely automatic control;
indicator
accurately shows orientation of antenna.
- Precision cut steel gears
hardened for long
service life
- Rugged, one-piece cast aluminum
housing
designed for greatest strength in high
stress areas
- Large bearing surfaces and
strong,
reinforced mast for lateral load support
- Ball bearing provided for thrust
(vertical)
load
- High torque - easily handles
largest TV/FM
antenna arrays
- Built to take high winds and
harshest
weather extremes - water tight seal, fully
lubricated drive train
- Control designed for smoother,
quieter
operation
-
Optional TB-105 Support Bearing
available
for extra-rigid installation
- UL and CSA listed
DIGITAL DISPLAY CONTROLLER
- Microprocessor controller with 18
functions
- Digital display indicates antenna
position
during operation
INFRARED REMOTE CONTROL
- 16 function soft-touch key pad
remote
- Control antenna directions with
the touch of
a button from your armchair to change
direction easily
|
|
|
|
|
...NTE
U106
Rotor and Control box... |
$129.50 |
|
Discontinued
|
|
|
|
Rotator Specifications |
| Range of Rotation |
360°+ 5° - 0 (w/ Mechanical
Stop) |
| Rotation Time |
70 Seconds |
| Rotation Torque |
8 Ft.-Lbs. |
| Vertical Load Capacity |
100 Lbs. (max.) |
| Support Mast Size |
1.125” - 2” Dia. |
| Connecting Cable (Not
Supplied) |
20 AWG, 3-Conductor |
| Weight (Drive plus Control
Unit) |
10 Lbs. |
|
