Base Station CB Antenna

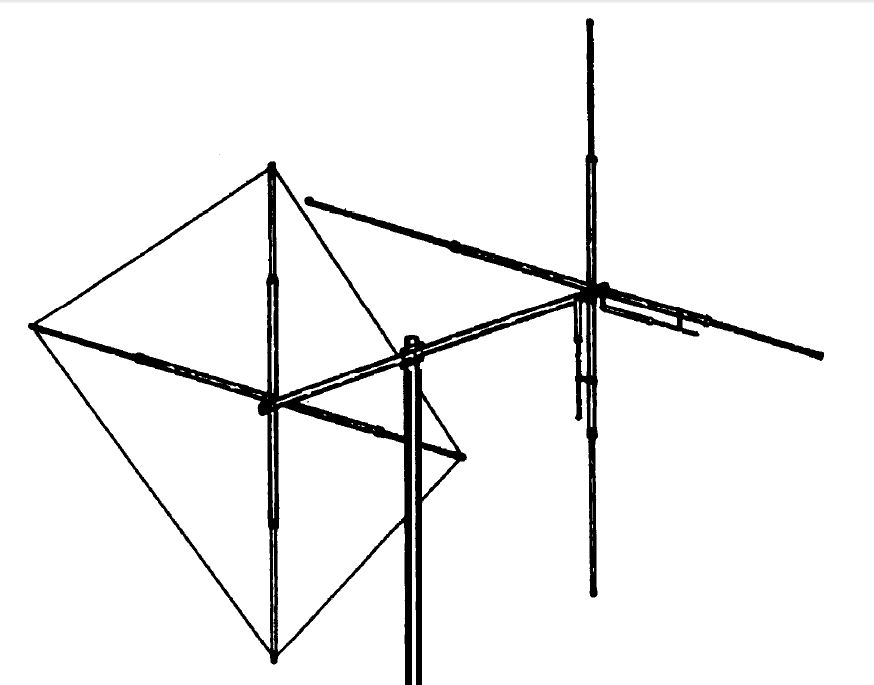

Y-Quad
CB Radio Base Station,
Beam Antenna

Dual Polarity


Download Manual


     Using a Quad reflector with a Yagi driven element, the Y-Quad combines the advantages of both designs to give the best performing lightweight antenna available, with switch-able polarity. The Quad reflector assures low angle of radiation even at low heights for real long distance performance.

The Quad reflector gives excellent front to back ratio of 25-30 db along with excellent forward gain.

Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.




...Y-Quad... $179.50





Boom Length (feet) 6
Boom OD (inches) 1.5
Number of Elements 4
Longest Radius (feet) 17.5
Turn Radius (feet) 8
Surface Area (sq. ft.) 2.7
Wind Survival (mph) 90
Tuning (Meters) 11
Gain (db) 11
Power Multiplication 14X
Front-to-Back Sep. (db) 25-30
VSWR (adjustable) 1.1 or less
Weight (lbs)
Shipping Weight (lbs) 13
Ship by: 81" x 6" x 2" Calculate shipping
for UPS or Priority Mail
  Our ZIP is 33334
Our PayPal buttons are programmed for USA shipping only.
 If you are in another country we will bill you for the remainder of your shipping charges.
