Base Station Antenna

Maco Flat 8

 Flat 8
   CB Radio Base Station,
    Beam Antenna

Download Manual

Yagi-Quad CB Base Station Antenna

     The most powerful and directive CB beam antenna on the market has a gain of 18dB and develops an effective multiplied power level 60 times that of your normal transmitter! It will handle up to 2kW. This, combined with unparalleled directivity, enables you to communicate with distant stations never before possible.

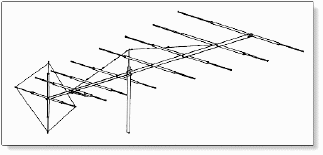

     Mounted on a 40-foot boom, the Flat 8  uses 7 Yagi-type elements plus a Quad reflector. Electrically this provides you with four more parasitic elements for a cumulative total of 11 elements! Adjustable gamma matches obtain the lowest SWR for both vertical and horizontal polarization. Forward gain, front-to-back ratio, and side rejection are the highest in the industry.



This antenna is like the laser 500 with Flat Side only.

Power handling is 2000W PEP


Need Higher power?
Upgrade your gamma match to:











Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.




HIGH PERFORMANCE and MADE IN THE U.S.A.




Call To Order ...Flat 8... $735.50

Boom Length (feet) 40
Boom OD (inches) 3
Number of Elements 10
Longest Radius (feet) 18
Turn Radius (feet) 21
Surface Area (sq. ft.) 10.5
Wind Survival (mph) 90
Tuning (Meters) 11
Gain (db) 18
Power Multiplication 60X
Front-to-Back Sep. (db) up to 46
VSWR (adjustable) <1.2
Weight (lbs) 76
Ship by: This type of shipping costs hundreds of dollars so be aware of this when ordering.
Each shipping estimate takes time and effort, serious inquiries only. The box is  246" x 8" x 8" and weighs 135LBS Crated. After you order MaCo will call you and make plans for the trucks arrival.
Truck shipping!
$150-$275
