Base Station CB Antenna


 Flat 6
   CB Radio Base Station,
  Beam Antenna


Download Manual

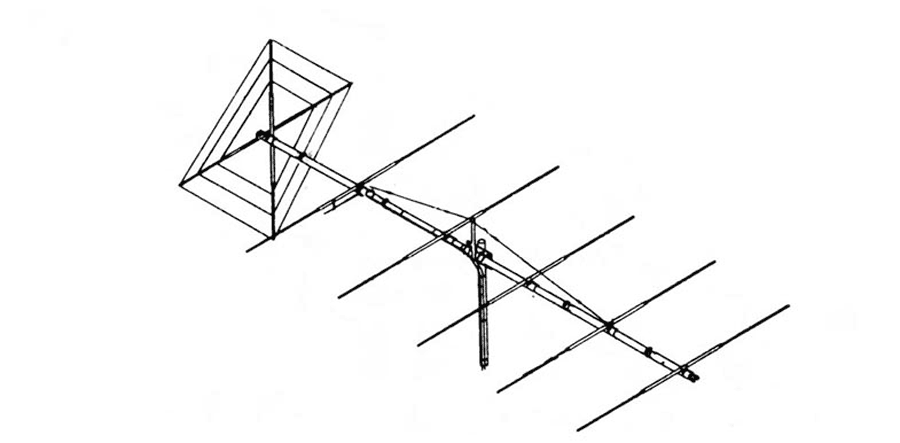

     The 6 Element Laser is designed to achieve the maximum gain and front  to back ratio using a Quad Reflector and Yagi Parasitic elements. There are six elements horizontal OR six elements vertical, scientifically spaced on a 31 ft. boom. This antenna is like the laser 400 with Flat Side only, plus a 5 KW Gamma match





Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.




HIGH PERFORMANCE and MADE IN THE U.S.A.


...Beam Antenna...
Sale starts 5-1-11

$469.50
 $424.50


Boom Length (feet) 31
Boom OD (inches) 2
Number of Elements 8
Longest Radius (feet) 18
Turn Radius (feet) 17
Surface Area (sq. ft.) 9
Wind Survival (mph) 90
Tuning (Meters) 11
Gain (db) 17
Power Multiplication 50X
Front-to-Back Sep. (db) 40-44
VSWR (adjustable) 1.1 or less
Weight (lbs)
Shipping Weight (lbs) 41
Ship by: 81" x 6" x 6" Calculate shipping
