 Base
Station Antenna
|
 |
M105HV
CB Radio Base Station,
Beam Antenna
Dual Polarity
|
 Download Manual |

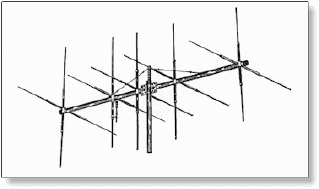

In the classic directional Yagi design, the Dual Maximum Beams line of base
station antennas can are vertically or horizontally polarized for best
base-to-mobile or base-to-base communications. It is actually 2 beam
antennas on one boom.
Most economical antenna of its type on the market today, all Dual Maximum Beams
feature MACO adjustable gamma match for high performance. Ruggedly built, swagged slotted tubing for maximum strength with minimum wind loading.
|
|
|
|
| Boom Length (feet) |
26 |
| Boom OD (inches) |
2 |
| Number of Elements |
10 |
| Longest Radius (feet) |
19 |
| Turn Radius (feet) |
15 |
| Surface Area (sq. ft.) |
8.47 |
| Wind Survival (mph) |
90 |
| Tuning (Meters) |
10-11 |
| Gain (db) |
15.5 |
| Power Multiplication |
40X |
| Front-to-Back Sep. (db) |
31 |
| VSWR (adjustable) |
1.5 or less |
| Weight (lbs) |
40 |
| Ship by: |
UPS |
|
|
