Base Station Antenna


  Laser 400
    CB Radio Base Station,
    Beam Antenna

    Dual Polarity

Download Manual

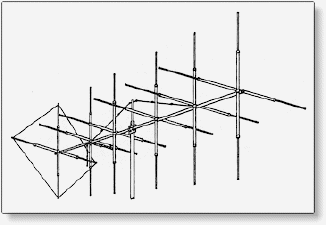

     The 12 Element Laser is designed to achieve the maximum gain and front to back ratio using a Quad Reflector and Yagi Parasitic elements. There are six elements horizontal and six elements vertical, scientifically spaced on a 31 ft. boom. The 12 Element Laser is second only to the Super Laser 500. It uses the same top quality aircraft aluminum the larger Laser 500 uses, except uses a 2" boom.



Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.


Power handling is 2000W PEP


Need Higher power?
Upgrade your gamma match to:













HIGH PERFORMANCE and MADE IN THE U.S.A.




...Laser 400... $619.50

Boom Length (feet) 31
Boom OD (inches) 2
Number of Elements 6+6
Longest Radius (feet) 18
Turn Radius (feet) 17
Surface Area (sq. ft.) 10.5
Wind Survival (mph) 90
Tuning (Meters) 11
Gain (db) 17
Power Multiplication 50X
Front-to-Back Sep. (db) 40-44
VSWR (adjustable) 1.1 or less
Weight (lbs)
Shipping Weight (lbs) 50
Ship by: 81" x 6" x 6" Calculate shipping
for UPS or Priority Mail
