Base Sation Antenna


Click for Larger Image

BA-1 Balcony
Antenna
    CB Radio Base Station,


Download Manual

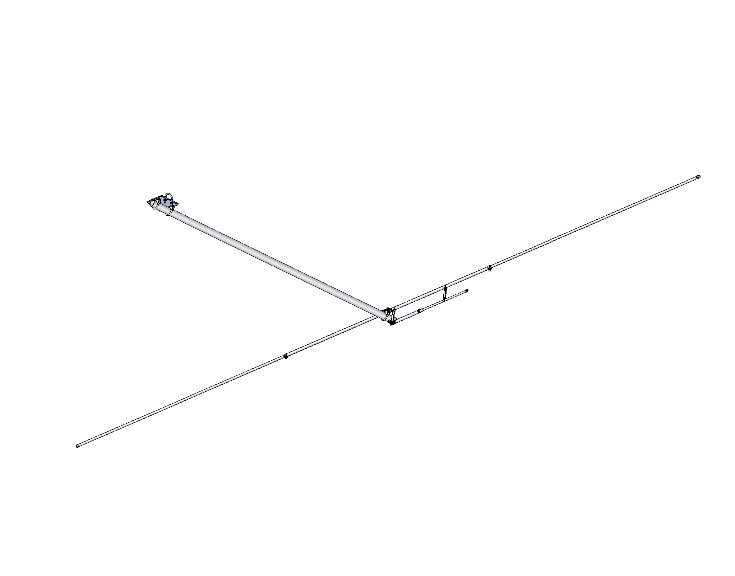

    The new MacoŽ BA1 Balcony Antenna has been designed to be used on the 10/11 meter bands.

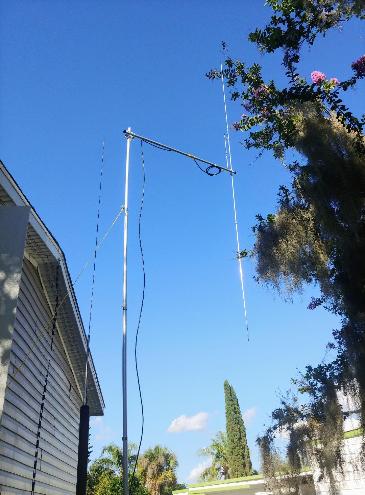

It can be mounted either horizontally or vertically, depending on the operator's preference. This
1/2 wave antenna can be mounted on a wrought iron or wooden balcony, making it the perfect
solution for operators who have limited space or cannot have a permanent installation. 5 dBi gain.

These can also be used as side of tower mounted antennas. They can also be operated in a vertically phased array (collinear) that will give you a small amount of gain in various array configurations.


Omni-directional
    (and directional depends how used)

Power handling is 2000W PEP


Need Higher power?
Upgrade your gamma match to:








Maco Antennas & Accessories are Proudly Made in the USA





...BA-1... $122



Length (feet) 206 - 210"
Tuning (Meters) 10-11
VSWR (adjustable) 1.5 or less
BOX Dimensions 82" x 6" x 2"
Shipping Weight (lbs) 8
Ship by: 82" x 6" x 2" Calculate shipping
for UPS or Priority Mail
  Our ZIP is 33334
