CHARLES GIZMOTCHY®

GIZMOTCHY®
Beam Antenna
Dual Polarity
10,11,6 and 2 METER

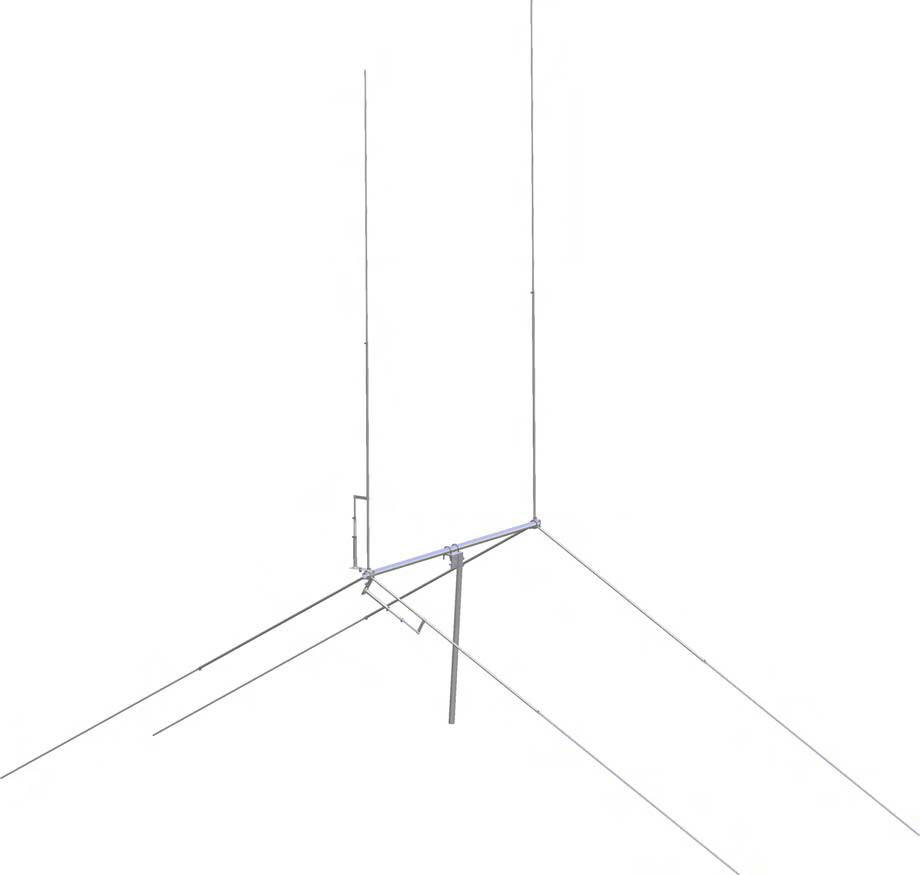

G21 Assembly
G31 Assembly
Power Booster Assambly

Power Booster Assambly


All Gizmotchy antennas are made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy.

Model   Description  Weight Shipping
 Carton
Price
10/11 Meter Antennas (CB Radio Band)
G21   2 Element Gizmotchy® W/1,500 Watt Gammas 10 65" X 5" X 4" 182.00
G25   2 Element Gizmotchy® W/5,000 Watt Gammas 10 65" X 5" X 4" 199.00

G31   3 Element Gizmotchy® W/1,500 Watt Gammas 14 65" X 5" X 4" 234.00
G35   3 Element Gizmotchy® W/5,000 Watt Gammas 14 65" X 5" X 4" 252.00

G41   4 Element Gizmotchy® W/1,500 Watt Gammas 18 65" X 5" X 4" 310.00
G45   4 Element Gizmotchy® W/5,000 Watt Gammas 18 65" X 5" X 4" 328.00

G51   5 Element Gizmotchy® W/1,500 Watt Gammas 22 65" X 5" X 4" 449.00
G55   5 Element Gizmotchy® W/5,000 Watt Gammas 22 65" X 5" X 4" 469.00

G61   6 Element Gizmotchy® W/1,500 Watt Gammas 26 66" X 6" X 6" 559.00
G65   6 Element Gizmotchy® W/5,000 Watt Gammas 26 66" X 6" X 6" 579.00

G71   7 Element Gizmotchy® W/1,500 Watt Gammas 30 66" X 6" X 6" 635.00
G75   7 Element Gizmotchy® W/5,000 Watt Gammas 30 66" X 6" X 6" 653.00

G81   8 Element Gizmotchy® W/1,500 Watt Gammas 35 66" X 6" X 6" 711.00
G85   8 Element Gizmotchy® W/5,000 Watt Gammas 35 66" X 6" X 6" 729.00

GPB   Gizmotchy® Power Booster
 Each Power Booster adds one more
 element to your antenna.
4 66" X 4" x 2" 75.00
SK12

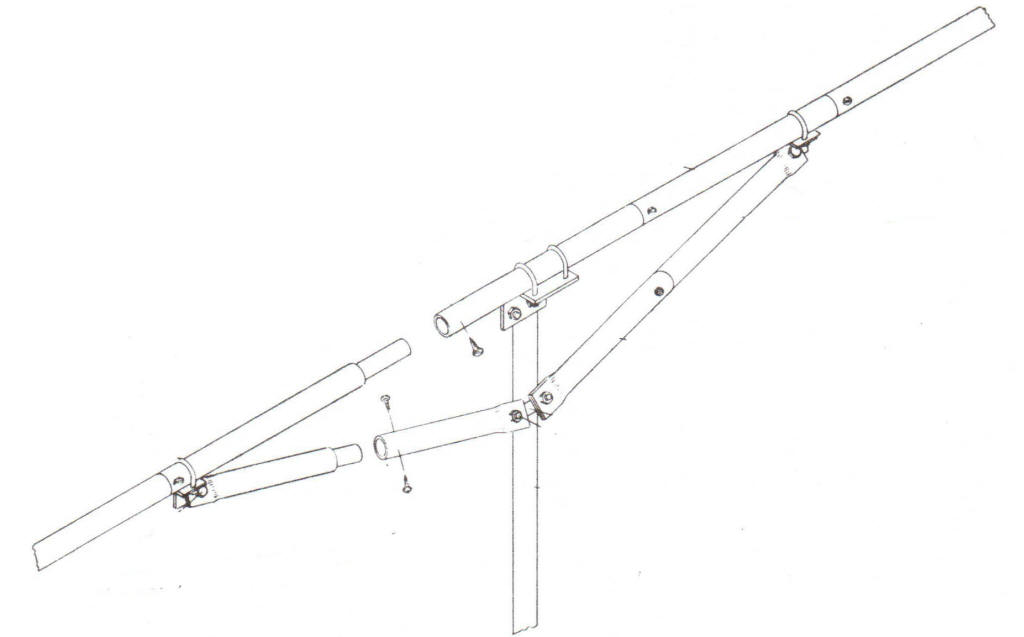

12' Universal Antenna Support Kit

8 46" X 4" X 3" 84.00
SK18   18' Universal Antenna Support Kit  10 46" X 4" X 3" 106.00
SKE6   6' Support Kit Extenders 4 46" X 4" X 3" 49.00
G5000V
Complete 5000 Watt Vertical Gamma Assembly
(Includes Gamma, Connecting Bracket, and Mounting Bracket):
2 12" x 9" x 2" $43.50
G5000H    Complete 5000 Watt Horizontal Gamma Assembly
 (Includes Gamma, Connecting Bracket, and Mounting Bracket)
:
2 12" x 9" x 2" $43.50

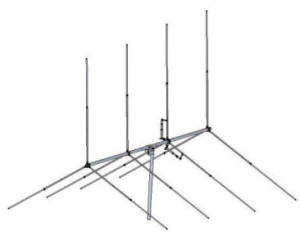

6 Meter Beam Antennas
G641   4 Element Gizmotchy® W/1,500 Watt Gammas   65" X 5" X 4" 199.00
G651   5 Element Gizmotchy® W/1,500 Watt Gammas   65" X 5" X 4" 244.00
GPB6   Gizmotchy® Power Booster   65" X 5" X 4" 49.00
2 Meter Beam Antennas
G241   4 Element Gizmotchy® W/1,500 Watt Gammas   65" X 5" X 4" 199.00
G245   4 Element Gizmotchy® W/5,000 Watt Gammas   65" X 5" X 4" 244.00
RC 725 Northern Michigan 26.915 or Channel 34.


Gizmotchy®

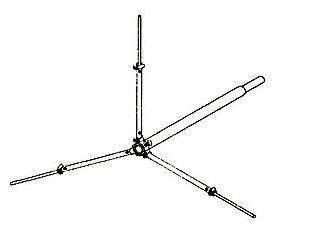

10/11 Meter Power Booster

Addition of Gizmotchy® Power Boosters to your Gizmotchy® 10/11 Meter antenna adds another set of director elements plus a 3.75’ extension boom. Doing so adds dB gain, power multiplication, and front-to-back separation. One or more Power Boosters can be added to your existing beam. Each Power Booster weighs approximately 4 lbs.








Read an article by S-9 CB magazine years ago

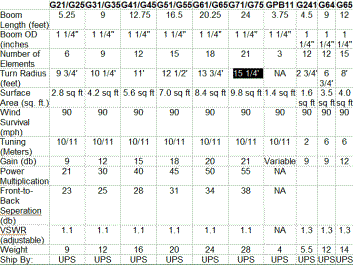

New!Antenna SpecificationsNew!

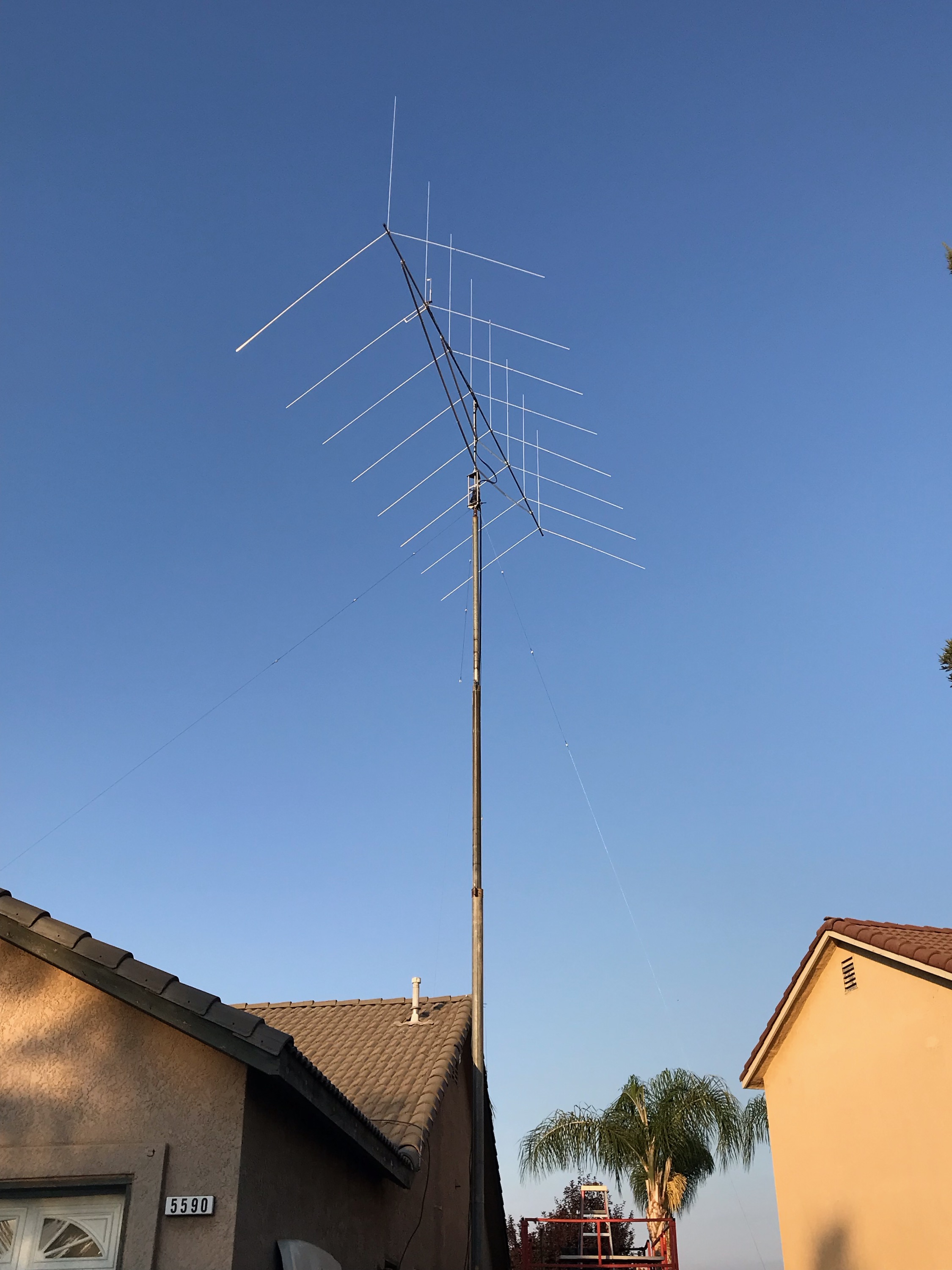

We would like to start a picture gallery of Gizmotchy® antennas in the air at your home.
Please send your pictures to us at bellscb@bellscb.com

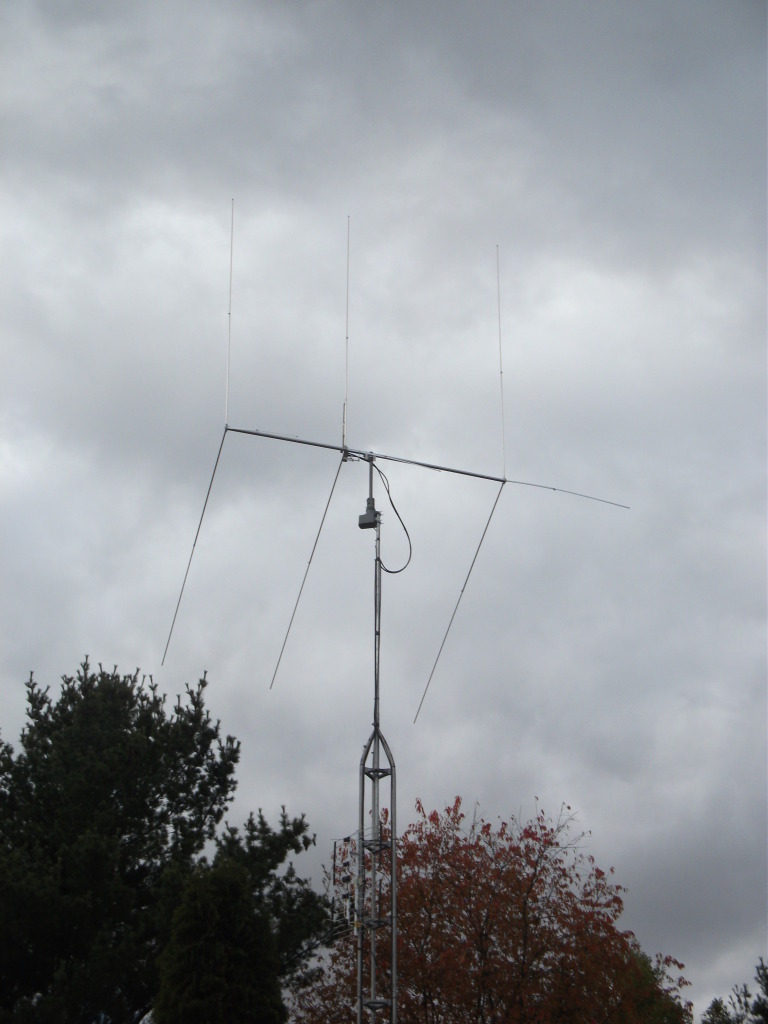

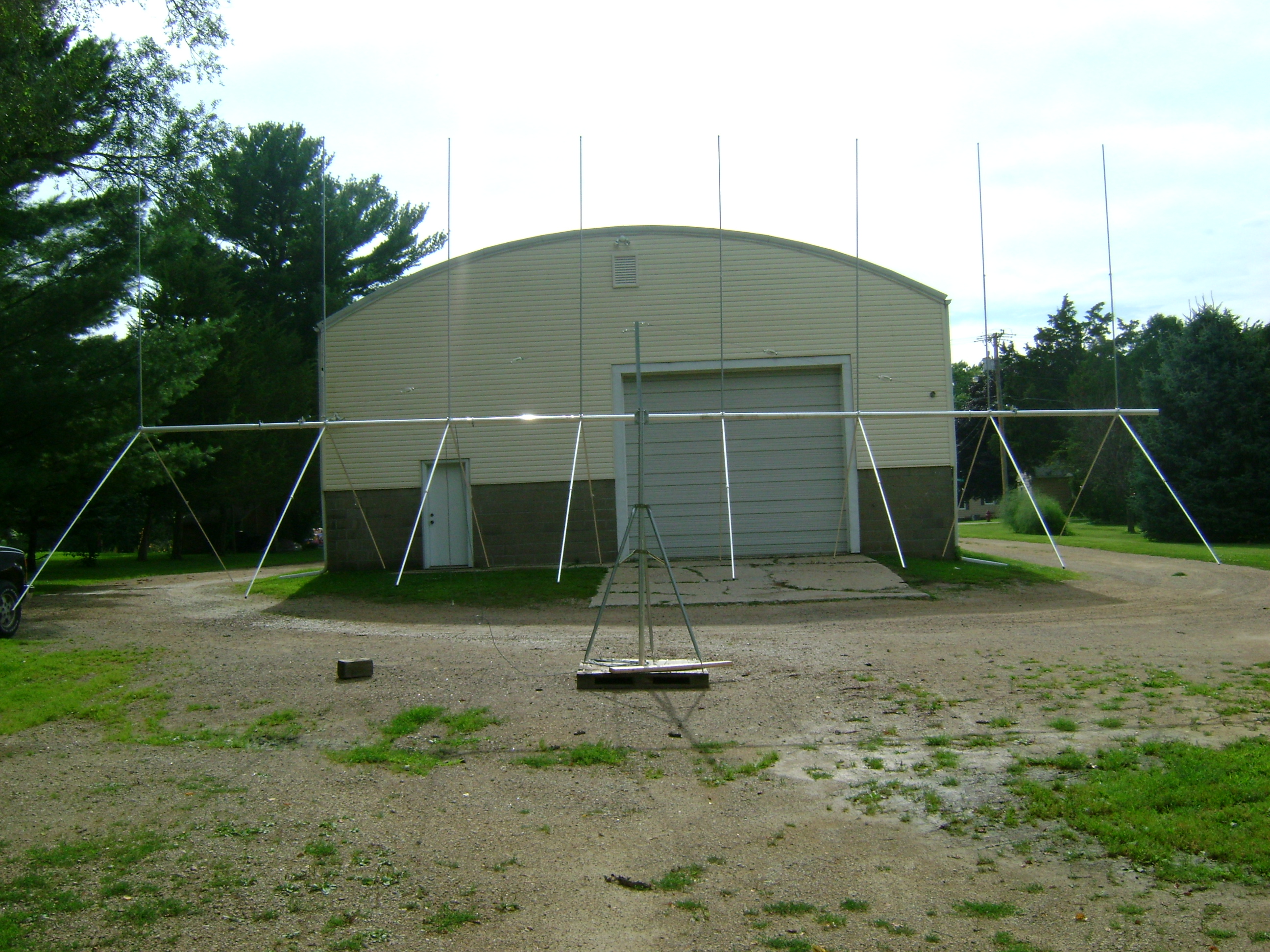

Like this one sent in from
RC 725 in Northern Michigan.


Pictures at Gizmotchy.com








Gizmotchy® Quick Facts

Wind survival rating is 90 mph – as long as sheet metal screws (included with beam) are used as recommended.

All Gizmotchy® 10/11 Meter Beams use 2 feed lines, can be used in either horizontal or vertical mode with a standard coax switch.

A Gizmotchy® Support Kit is recommended for beams exceeding 5 elements.



All Gizmotchy® Products are proudly made in the U.S.A.



Our PayPal buttons are programmed for USA shipping only.
 If you are in another country we will bill you for the remainder of your shipping charges.
