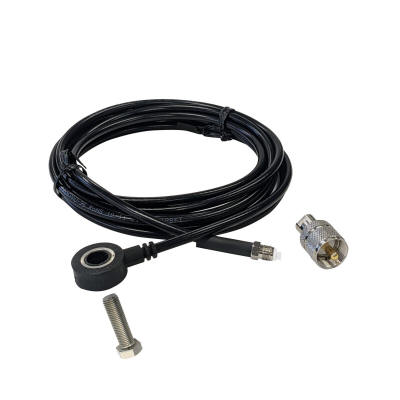

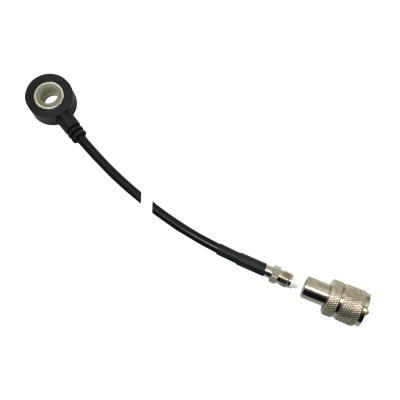

This two peice connector has the
ease and convenience of being able to route your coax to the radio without the
need for holes or passages that could be as large as one-inch. This cable is
routed from the mount to the radio and the female mini-UHF connector will pass
through a hole that is only 7/16" (11mm)in diameter. After reaching the radio,
completion is as simple as screwing on the supplied mini-UHF/PL-259 adapter and
then screwing the PL to the radios antenna connection.
Note: These Antenna terminations require K-4R stud mounts that
include 1.25" long bolts. Mounts that have K-4 stud mounts can be adapted for
use with the FireRing termination by replacing the 1" bolt with a 1.25" bolt and
elimination of the ring terminal, one flat washer and one nylon washer.
You get ONE 1.25" bolt with this package. |
