10 Meter Mobile Radios

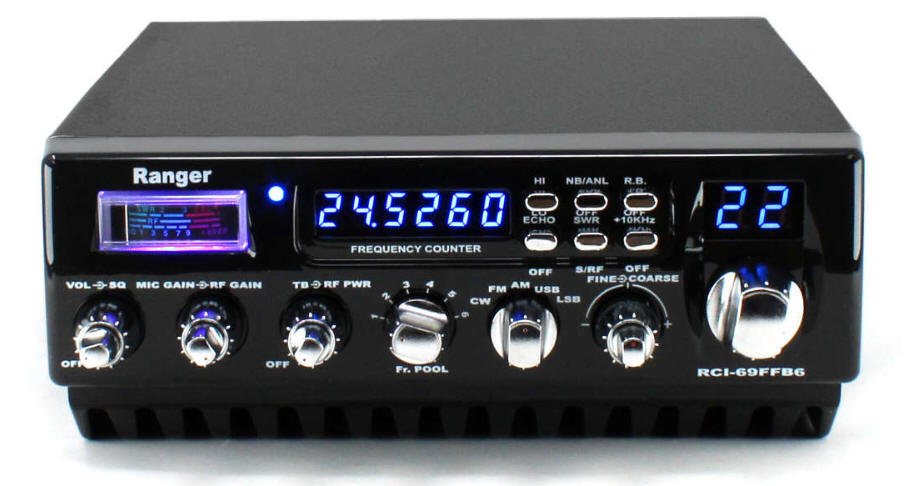

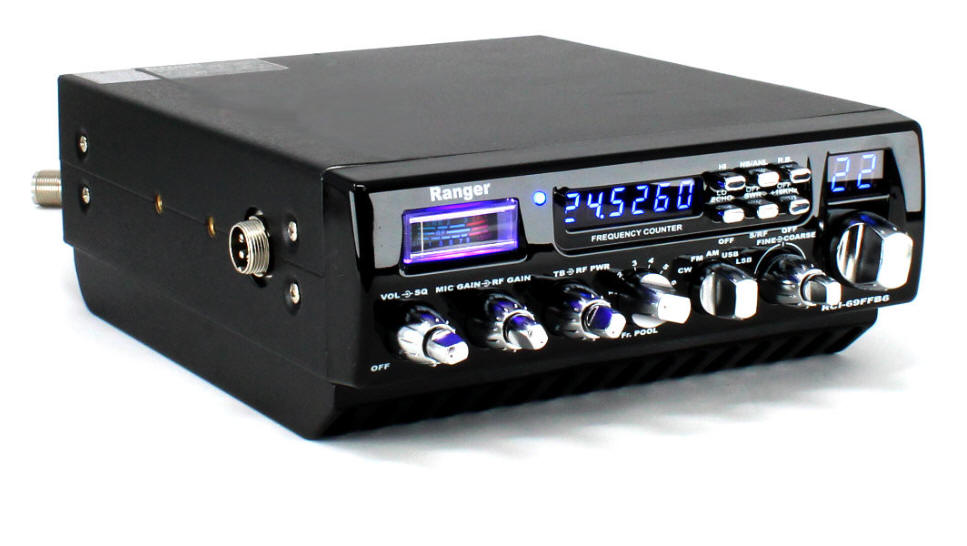

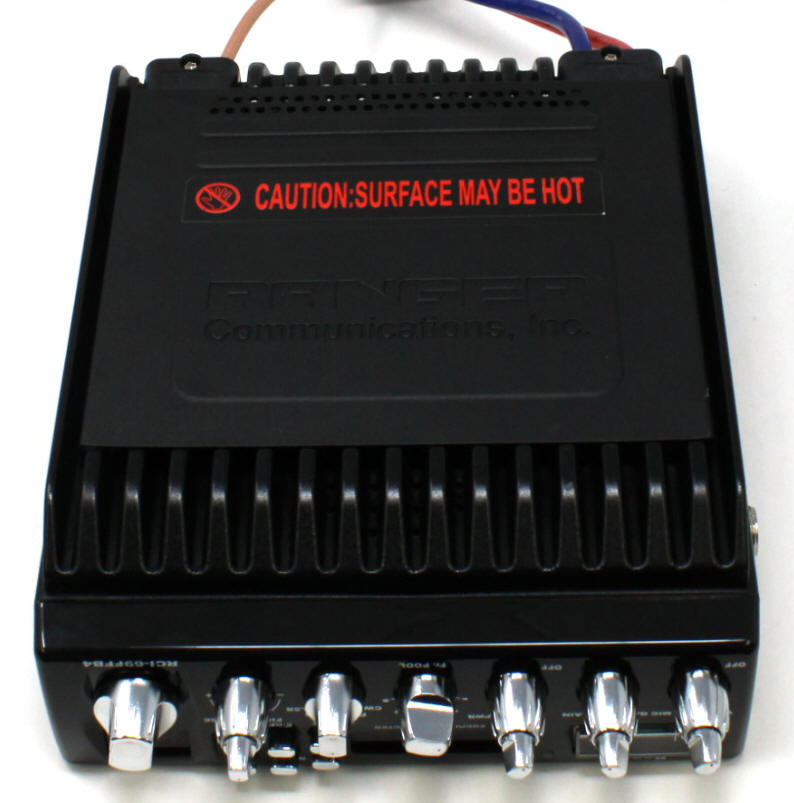

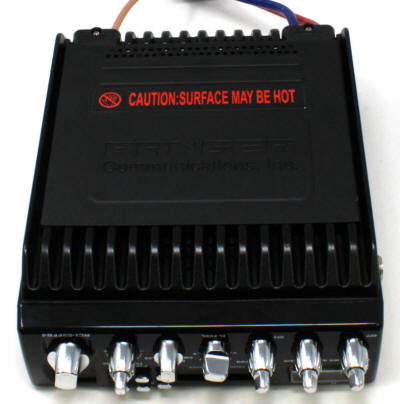

RCI-69FFB6

RCI-69FFB6
AM/FM/SSB 10M Mobile Radio

Download Manual








Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca


CB Microphone Wiring (Galaxy)

SOLD OUT
Get Notified Via E-Mail when we are taking orders again
RCI-69FFB6
We beleive there is an upgrade to this model in the Ranger RCI-69FFC6
$869
Free Shipping



Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49
 Install a switch in the back to turn off the 450w amp.
(wired behind the radio with a switch for on/off)
$15

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
Sound Byte link

SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65
Sound Byte link

SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord. $25

Super Sized power CordDC Cord for the Super over-killer, using a new radio sized Anderson connector, Heavy duty AGU  Fused at 60A  with 4 gauge wire (12 feet) and brass Lugs for the battery. $89



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM/FM 10~100w 10~100w 10~100w
Peak AM 240~360w 35~120w 225~505w
SSB 210~400w 150~285w 225~405w
01/24/24



Tuned up values on these watt meters
With optional AMP switch OFF
Dosy Bird RMS * Bird 43P
AM / FM 1~6w 1~6w 1~6w
Peak AM 9~22w 3~8w 22~43w
SSB 7~16w 3~8w 13~24w
* The most informative meter and the one we use. 01/24/24



 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-7/8"

 Weight

12 Lbs.


 Transmitter



 RF Power Output

After Tune-Up:
AM-FM: 100W RMS
AM: 450+W PEAK
SSB PEP: 425+W

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD
